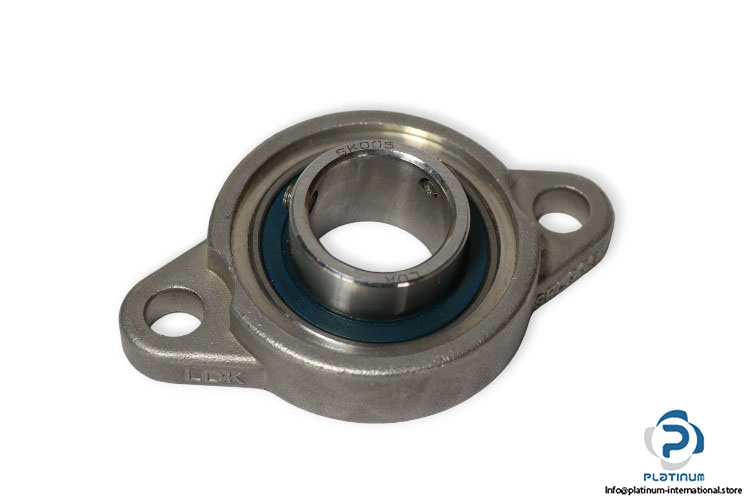

Type: Stainless Steel Oval Flange Housing Unit, Extra Narrow Width
Model: SSUFL 005

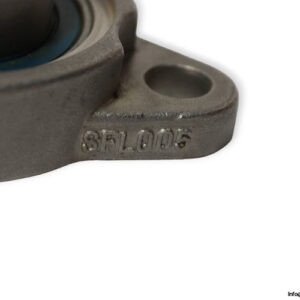

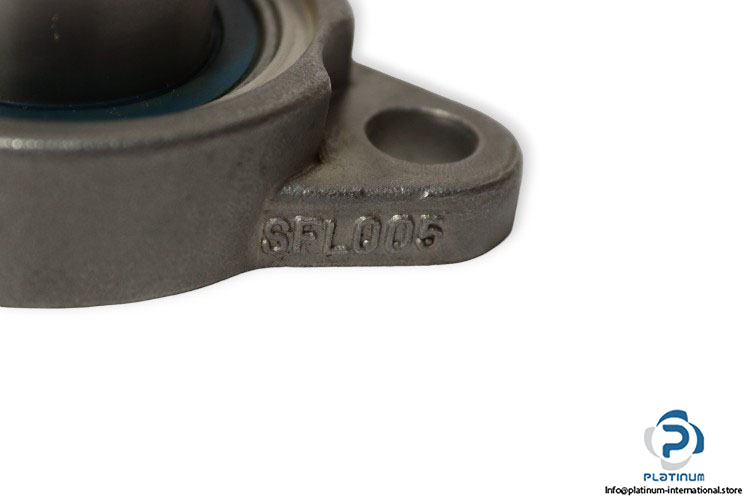

Housing No.: SFL005

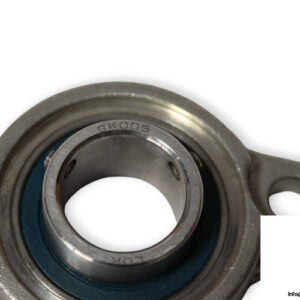

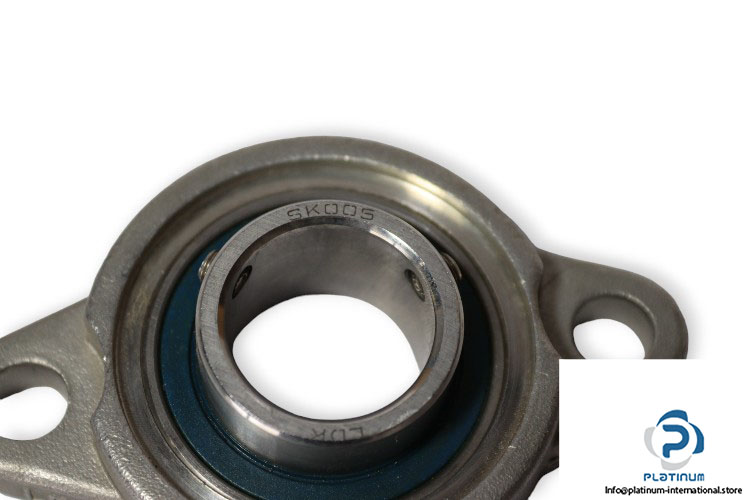

Bearing No.: 5K005

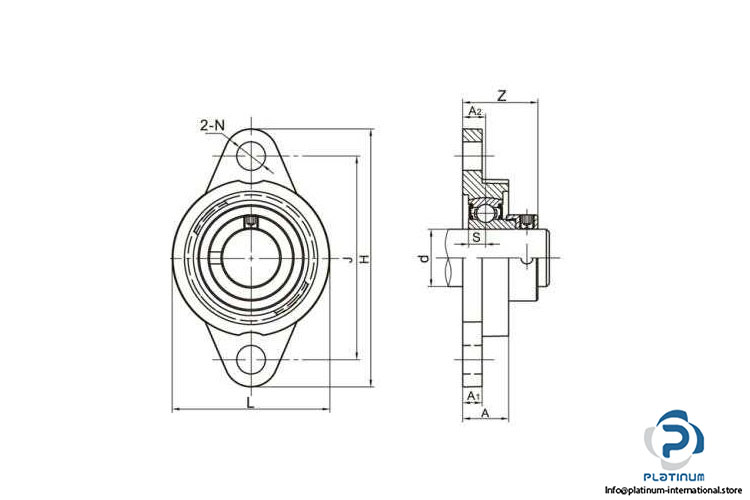

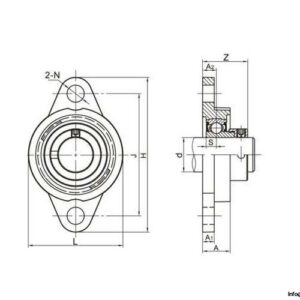

Dimensions
Bore Diameter d: 25 mm
Overall Length L: 60 mm
Overall Height H: 95 mm
Overall width Z: 27 mm
Width of housing A: 16 mm
Distance between attachment bolts J: 75 mm
Diameter of attachment bolt hole N: 10 mm
Bolt Size: M8
Mounting: Oval Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Eccentric Collar Locking
