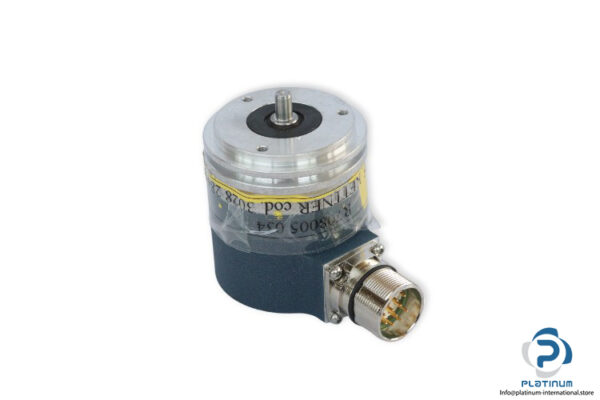

LEINE LINDE RSA698 ABSOLUTE ENCODER

The Leine Linde RSA698 is a high-performance absolute encoder engineered for precision control and rugged industrial environments. With a stainless steel shaft, wide operating voltage, and exceptional resolution capabilities, it delivers reliable and accurate positioning feedback in high-speed applications.

Manufacturer: Leine Linde
Type: Absolute Encoder
Model: RSA698

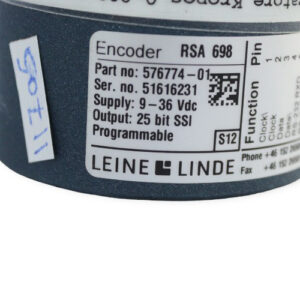

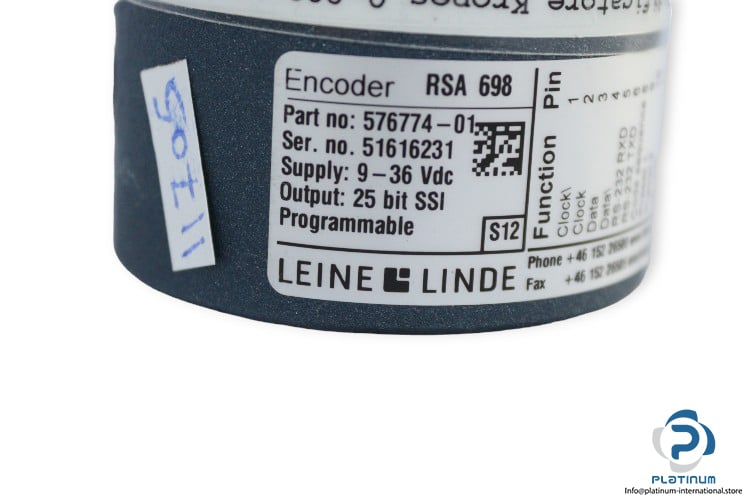

Part No.: 576774-01
SN: 51616231

Technical Information

• Supply Voltage: 9 / 36 V DC
• Current Consumption: 60 mA

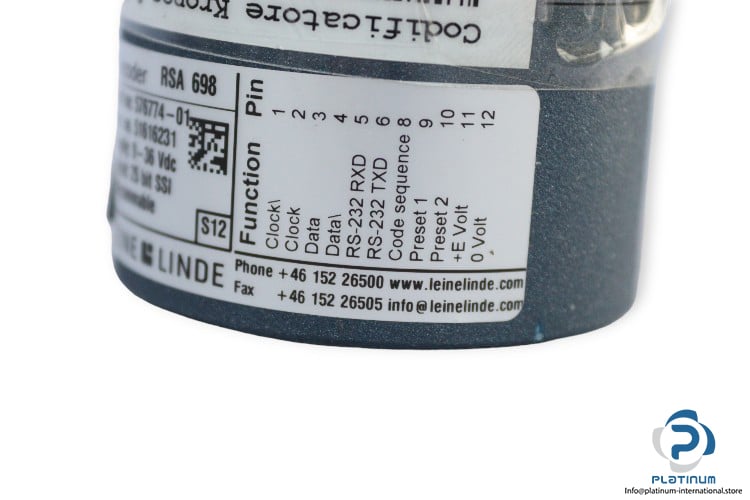

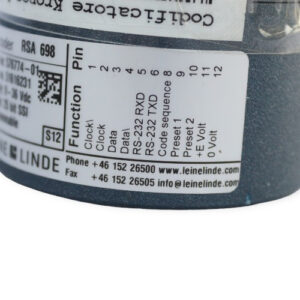

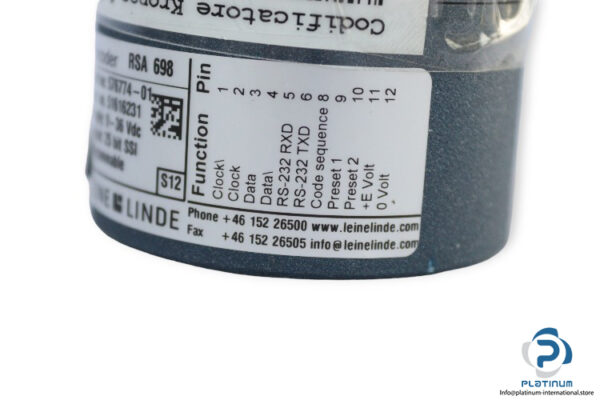

• No. of Pins: 12
• Total Resolution: 25 Bit (13 Bit Single Turn “ 8192 positions, 12 Bit Multiturn “ 4096 revolutions)
• Max Speed: 12000 rpm
• Outer Diameter: 58 mm
• Protection Class: IP67, IP66
• Shaft Type: Stainless Steel Solid Shaft
• Mounting Holes: 3 x M4
• Cover Material: Aluminum
• Shaft Material: Stainless Steel
• Operating Temperature: -40 / 85°C
