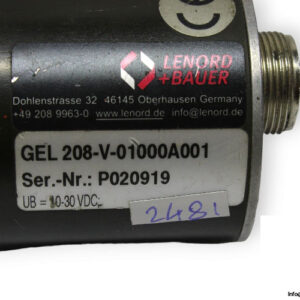

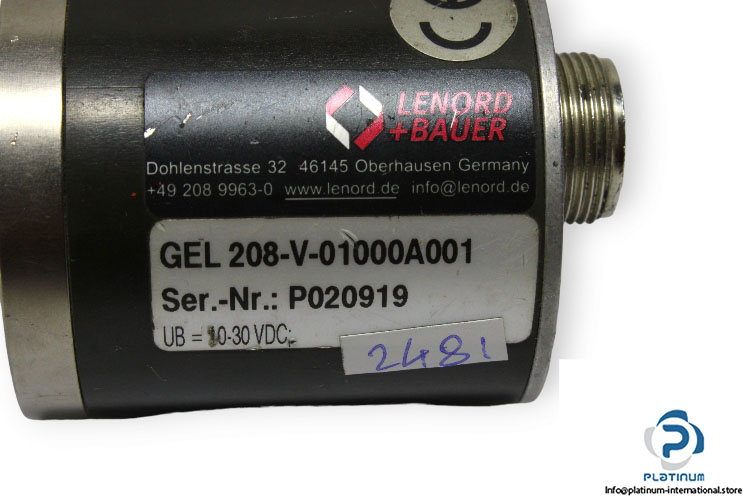

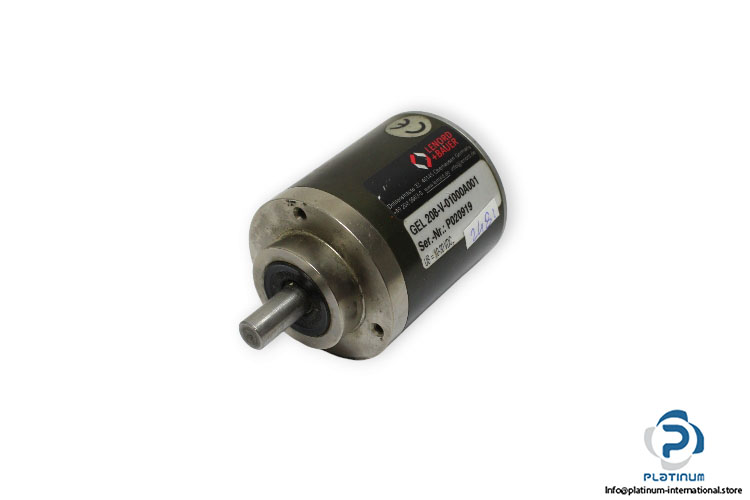

LENORD+BAUER GEL 208-V-01000A001 INCREMENTAL ROTARY ENCODER
The GEL 208-V-01000A001 from Lenord+Bauer is a highly reliable incremental rotary encoder designed to deliver accurate signal feedback in motion control systems. Built for industrial use, this encoder offers robust construction with IP65 protection and a clamping flange mount for secure installation.
Manufacturer: Lenord+Bauer
Type: Incremental Rotary Encoder
Model: GEL 208-V-01000A001
S No.: P020919
Technical Information
- Supply Voltage UB: 10 / 30 V DC
- Power Consumption: ‰¤ 1.3 W
- Shaft Diameter and Length: d = 10 mm, L = 20 mm
- Type: With Clamping Flange
- Signal Pattern: 2 Square-Wave Signals Shifted by 90° (HTL)

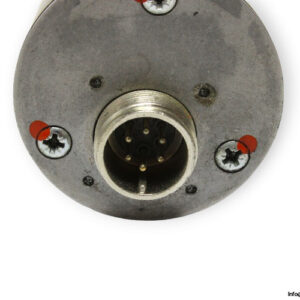

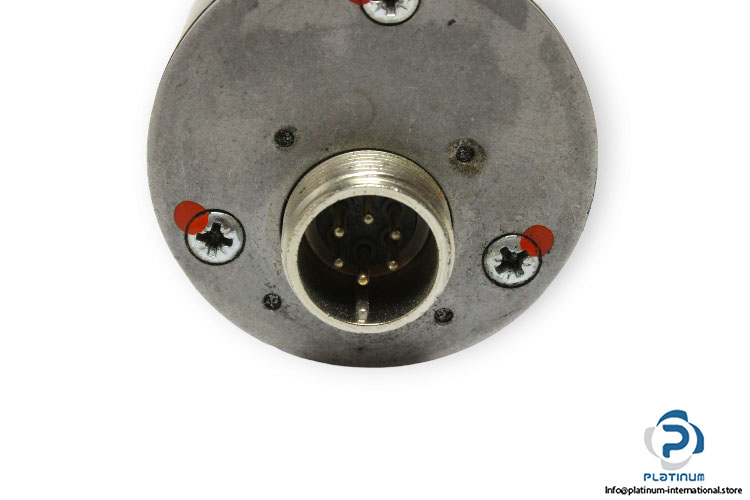

- Connector / Cable Outlet: 6-Pole Connector, Axial
- Operating Temperature: -20 / +85°C
- Degree of Protection: IP 65
