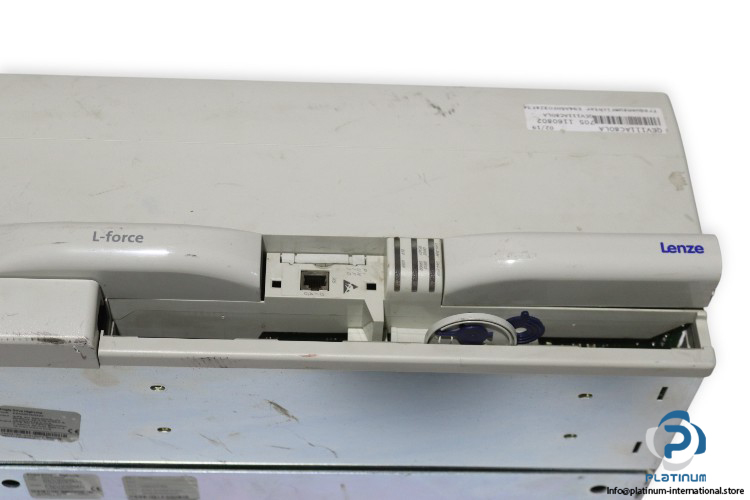

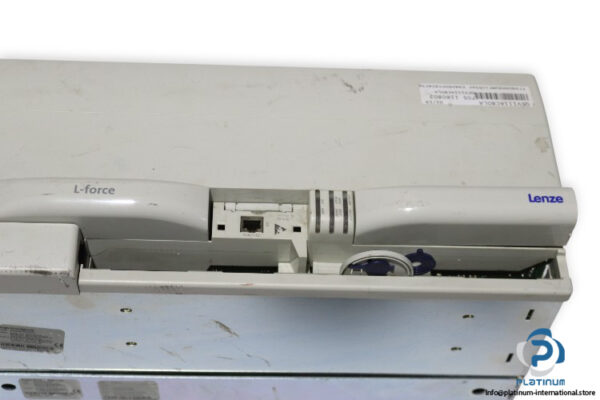

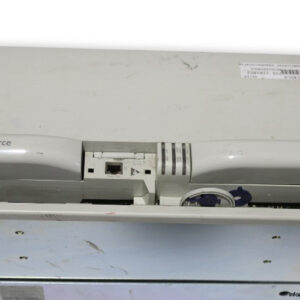

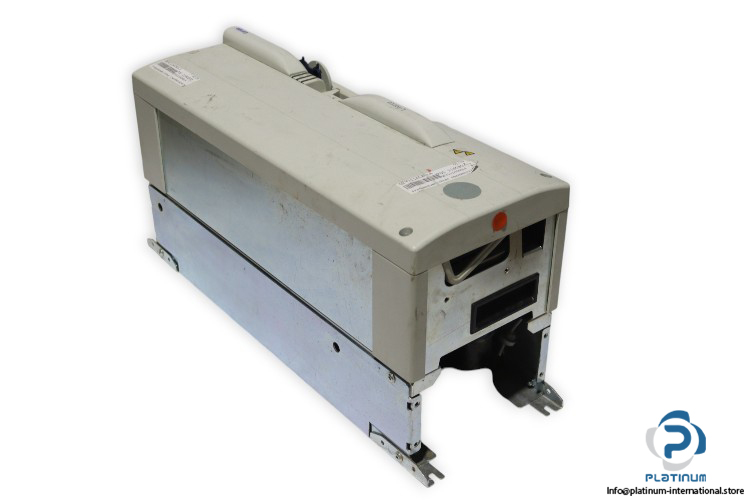

Lenze E94ASHE0324 Single Drive HighLine

The Lenze E94ASHE0324 is a powerful single-axis controller from the HighLine series, engineered for advanced motor control and automation tasks. With high current capacity, flexible input/output ratings, and expansion slot options, it ensures precision, efficiency, and scalability in demanding industrial drive applications.

Manufacturer: Lenze
Type: Single Drive HighLine
Model: E94ASHE0324
Serial No.: 13147864/ 01619/ 000002/ QEV111ACSJDF
Type Code: E94ASHE0324D34NNPM
Version: 1
Design: S, Single-axis controller (Single Drive)
Variant: H, HighLine
Mechanical Version: E, Installation

Technical information

• Control Voltage: 24 V
• Rated Current: 32 A
• Voltage Class: 4, 400 V / 540 V

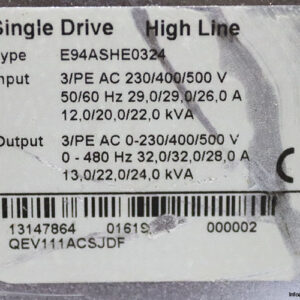

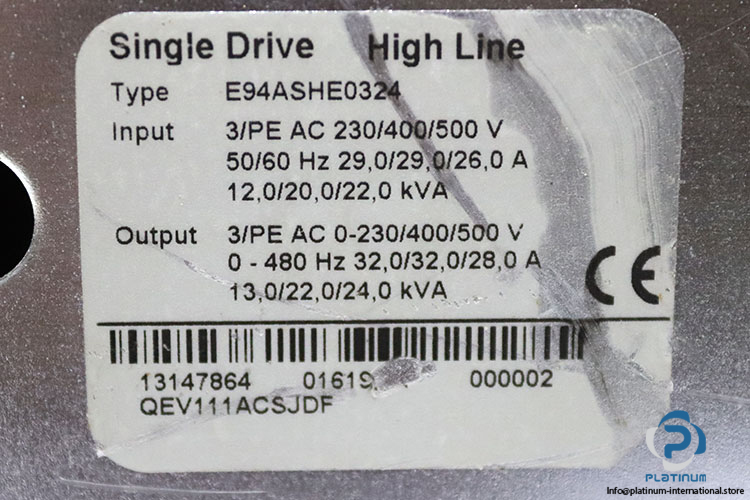

Input

• Voltage: 3/PE AC 230/400/500 V
• Frequency: 50/60 Hz
• Current: 29 / 29 / 26 A
• Power: 12.0 / 20.0 / 22.0 kVA

Output

• Voltage: 3/PE AC 0 – 230/400/500 V
• Frequency: 0 to 480 Hz
• Current: 32.0 / 32.0 / 28.0 A
• Power: 13.0 / 22.0 / 24.0 kVA

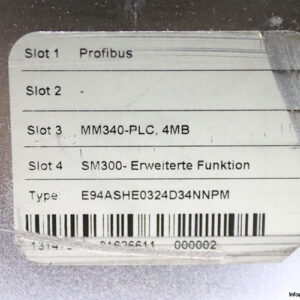

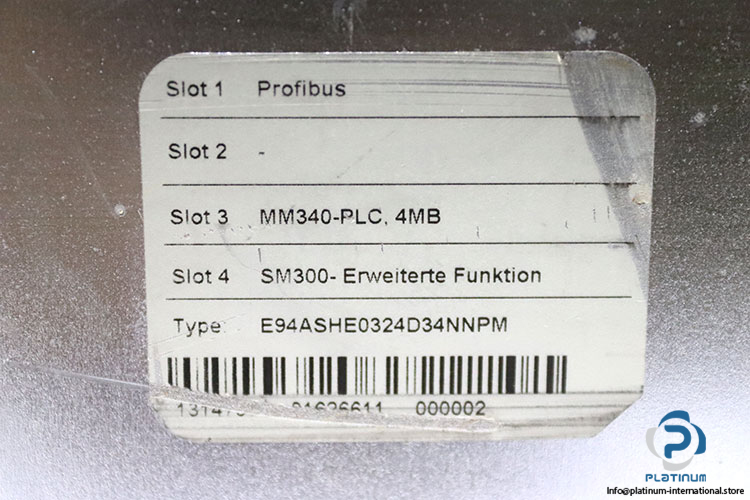

Expansion Slots

• Slot 1: Profibus
• Slot 2: Empty
• Slot 3: MM340-PLC, 4 MB
• Slot 4: SM300 – Erweiterte Funktion
