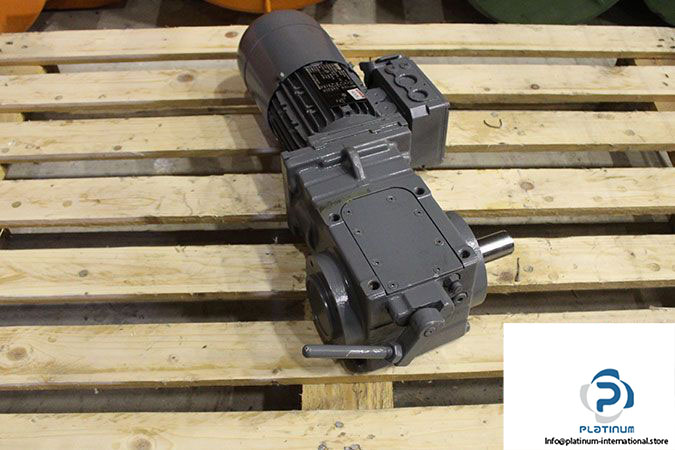

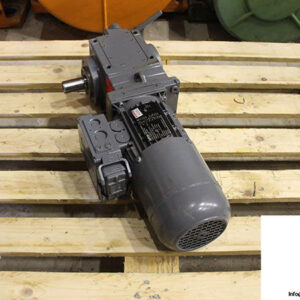

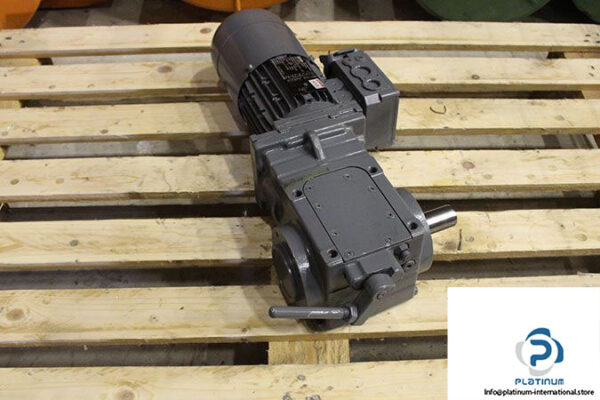

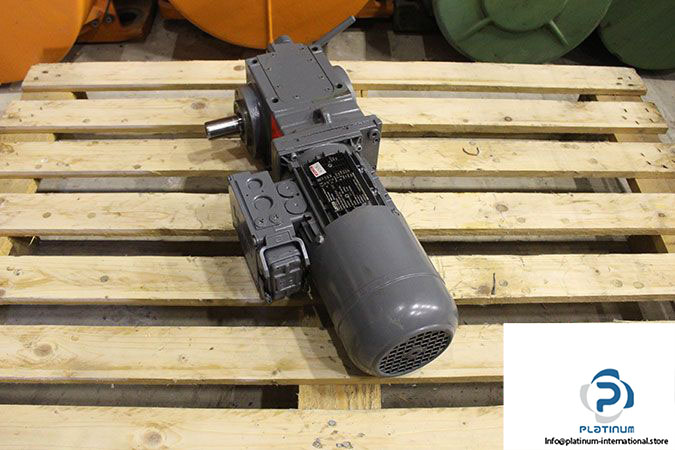

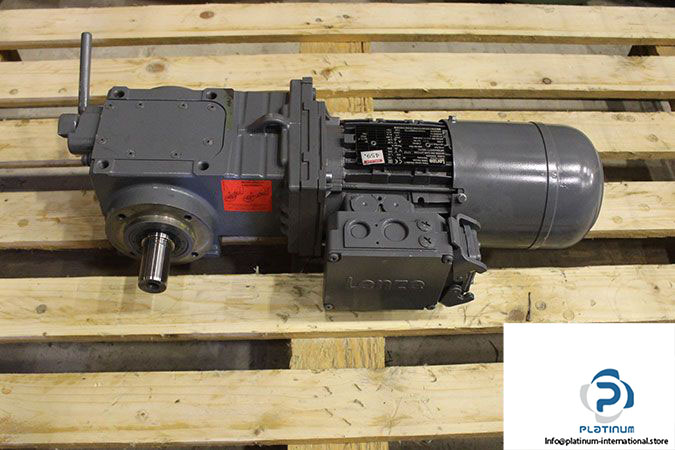

LENZE GKK05-2MGAR071C32 BEVEL GEARED MOTOR WITH CLUTCH

The Lenze GKK05-2MGAR071C32 bevel geared motor with clutch is a compact and high-performance solution designed for continuous-duty industrial applications. It integrates a 3-stage gearbox, efficient asynchronous motor, and robust braking system, making it ideal for precision-driven automation systems.

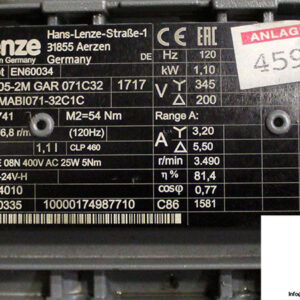

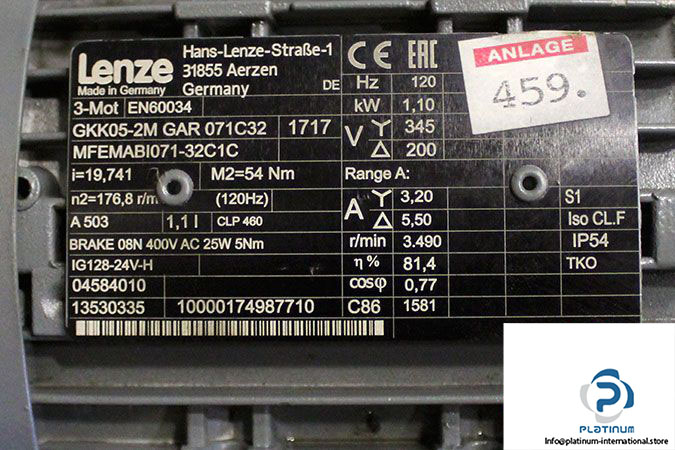

Manufacturer: Lenze
Type: Bevel Geared Motor with Clutch
Model: GKK05-2MGAR071C32
Ref No.: 04584010 / 13530335 / 10000174987710 / IG128-24V-H

Gearbox Specifications

• Gearbox Size: 05
• Number of Stages: 3-Stage
• Total Ratio [i]: 19.741
• Rated Speed [r/min]: 176.8
• Rated Torque [Nm]: 54
• Max. Torque [Nm]: 160
• Max. Radial Force [N]: 8000

Motor Specifications

• Motor Model: MFEMABI071-32C1C
• Frequency [Hz]: 120
• Rated Power [kW]: 1.10
• Motor Voltage [V] / Conn. Type: 345/200 Star/Delta
• Motor Current [A]: 3.2/5.5
• Rated Speed [r/min]: 3.49
• Efficiency [%]: 81.4
• Power Factor: 0.77
• Driven Shafts [mm]: 25 x 35

Brake System

• Brake Type: 08N
• Brake Voltage [V]: 400 AC
• Brake Power [W]: 25
• Brake Torque [Nm]: 5

Additional Features

• Lubrication / Volume [L]: CLP 460 / 1.1
• Incremental Encoder: IG
• Increments Per Revolution: 128
• Medium Supply Voltage [VDC]: 24
• Hiperface: H (For Absolute Value Encoders)
• Duty: S1
• Mounting Position: A503
• Insulation Class: F
• Protection Class [IP]: 54
