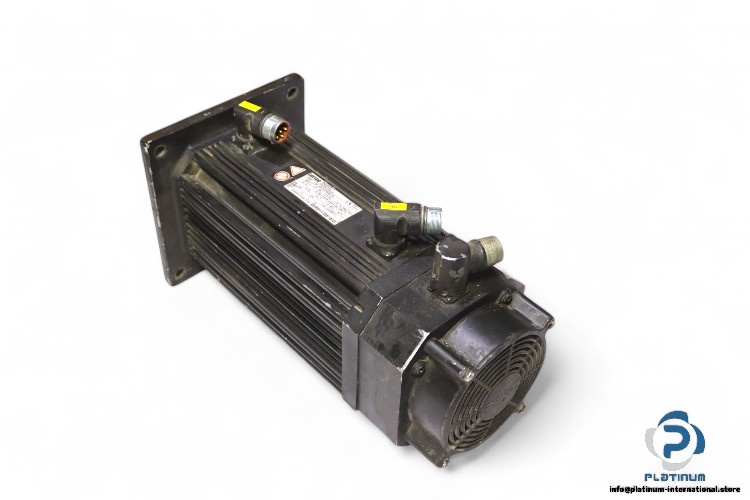

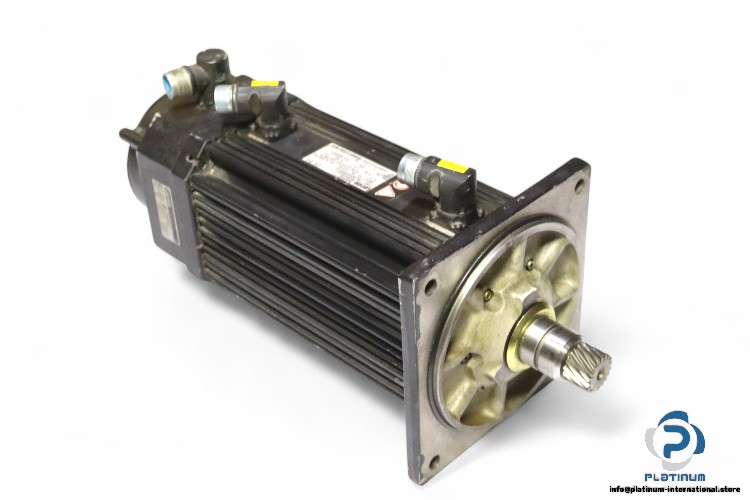

LENZE MDFKARS080-22 SERVO MOTOR

The LENZE MDFKARS080-22 Servo Motor is engineered for high-performance applications with a rated power of 3.9 kW, 3455 RPM rated speed, and 10.8 Nm rated torque. This motor provides excellent efficiency with a rated current of 9.1 A and a protection class of IP54 for reliable operation in demanding environments.

Manufacturer: LENZE

Type: Servo Motor

Model: MDFKARS080-22

Id No.: 00455470

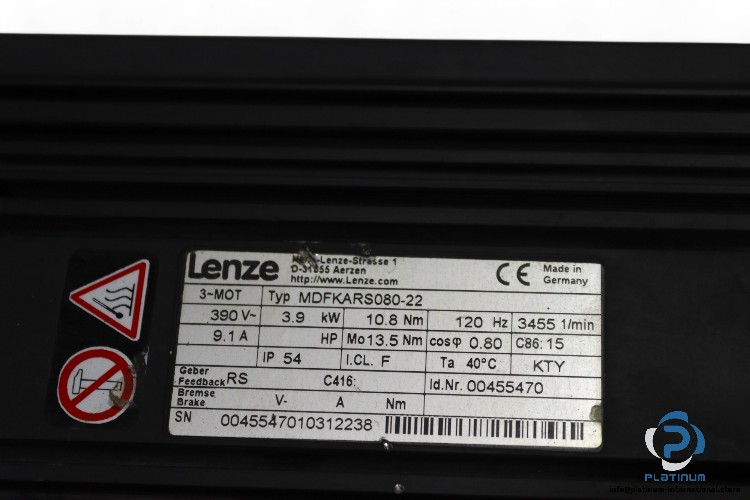

Technical Specifications

• Rated Voltage: 390 V AC
• Frequency: 120 Hz
• Rated Speed: 3455 RPM
• Rated Torque: 10.8 Nm
• Rated Power: 3.9 kW
• Rated Current: 9.1 A
• Stall Torque: 13.5 Nm
• Insulation Class: F
• Power Factor: 0.80
• Protection Class: IP54

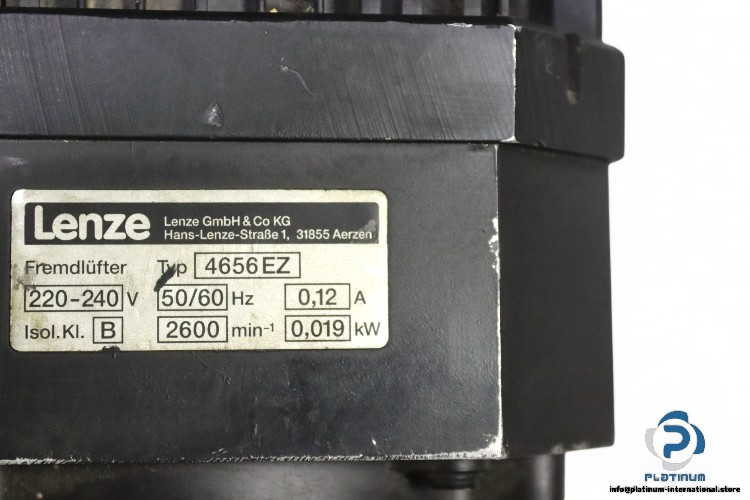

Attached: LENZE 4656 EZ FAN

• Rated Voltage [V]: 220 to 240
• Rated Power [kW]: 0.019
• Rated Current [A]: 0.12
• Frequency [Hz]: 50/60
• Rated Speed [rpm]: 2600
• Insulation Class: B
