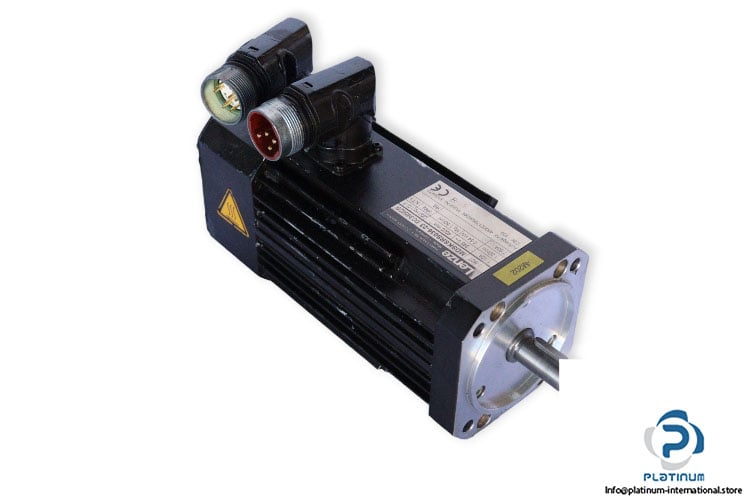

LENZE MDSKSRS 036-23 SYNCHRONOUS SERVO MOTOR

The Lenze MDSKSRS 036-23 is a high-performance synchronous servo motor designed for dynamic and precise motion control. With advanced features including high-rated speed, resolver feedback, and IP64 protection, it is ideal for demanding automation systems.

Manufacturer: Lenze
Type: Synchronous Servo Motors Series
Model: MDSKSRS 036-23

Technical Information

• Rated Speed (n): 4000 rpm
• Rated Current (I): 1.10 A
• Rated Voltage (V): 345 V
• Rated Torque (M): 1.3 Nm
• Rated Power (P): 0.54 kW
• Holding Torque (M0): 150 Nm
• Holding Current (I0): 1.25 A
• Maximum Current: 7.5 A
• Maximum Torque (Mmax): 7.2 Nm
• Inertia: 0.36 kgcm²
• Rated Frequency (f): 200 Hz
• Protection Class: IP64
• Number of Pole Pairs: 3
• Modules: Resolver
