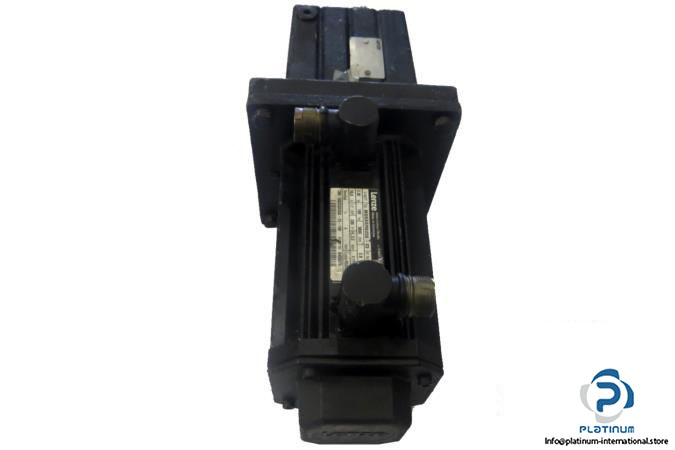

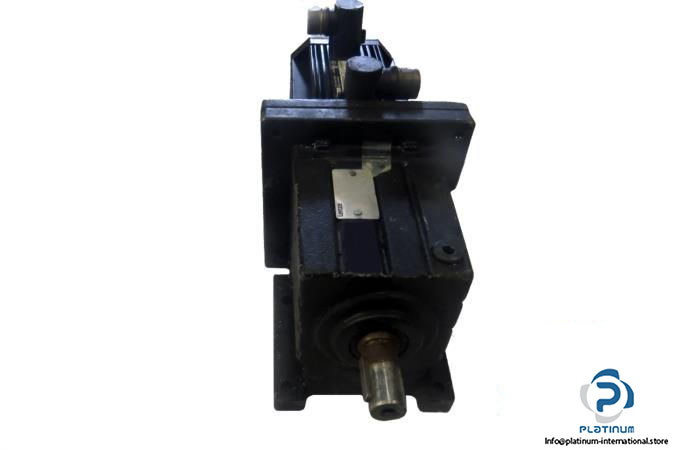

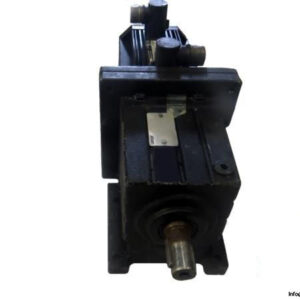

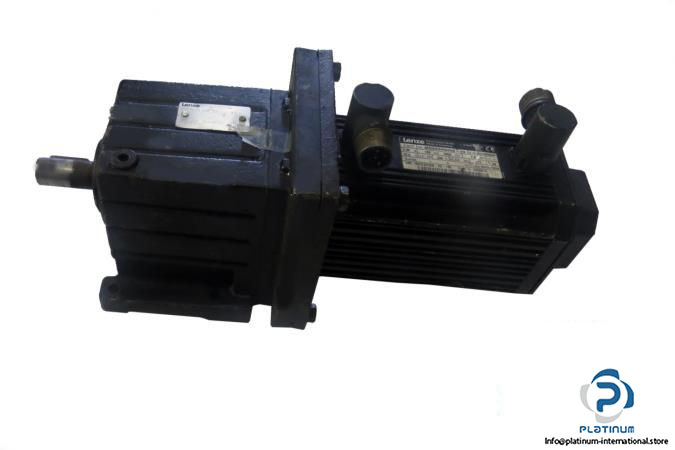

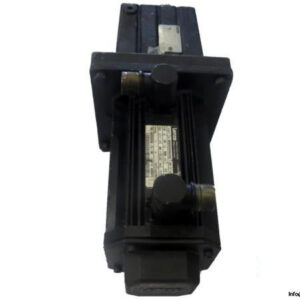

LENZE MDSKSRS056-23 SERVO MOTOR WITH GST04-2Y GEARBOX

The Lenze MDSKSRS056-23 is a high-performance servo motor engineered for precision control and energy efficiency. Coupled with the robust Lenze GST04-2Y gearbox, this unit is ideal for demanding automation and motion control applications in industrial environments.

Manufacturer: Lenze
Motor Type: Servo Motor
Model: MDSKSRS056-23
ID No.: 00400294
Ref No.: C86: 160/DSKS56-23-190

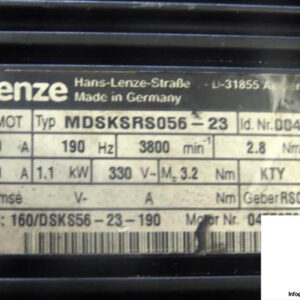

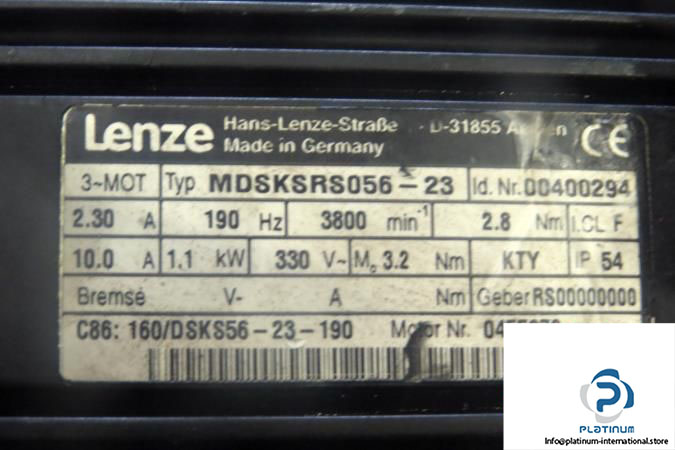

Motor Technical Information

• Voltage: 330 VAC
• Power: 1.1 kW
• Rated Torque Range: 2.8 Nm
• Frequency: 190 Hz
• Rated Current Range: 2.3 A
• Speed: 3800 min»¹
• Insulation Class: F
• Protection Class: IP54
• Encoder: RS00000000

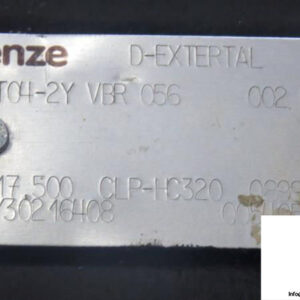

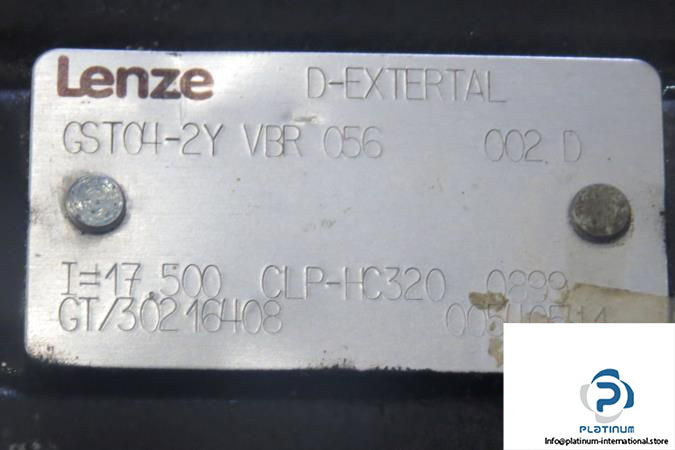

Attached Gearbox Information

Gearbox Manufacturer: Lenze
Model: GST04-2Y VBR 056
Ref No.: GT/30216408
Lubrication: CLP-HC320
Ratio: 17.500
