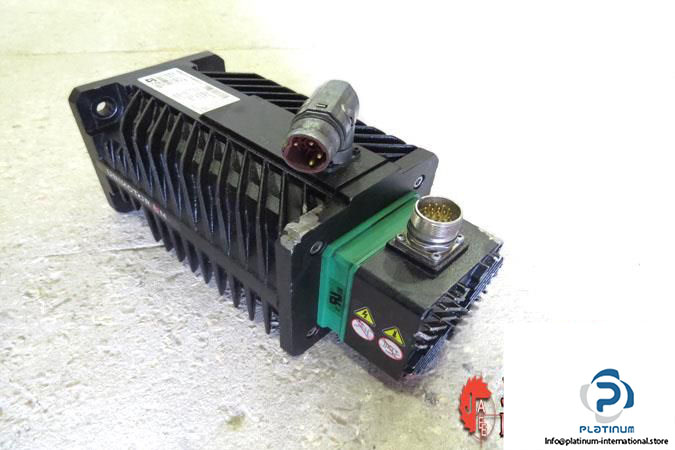

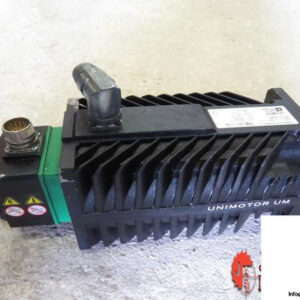

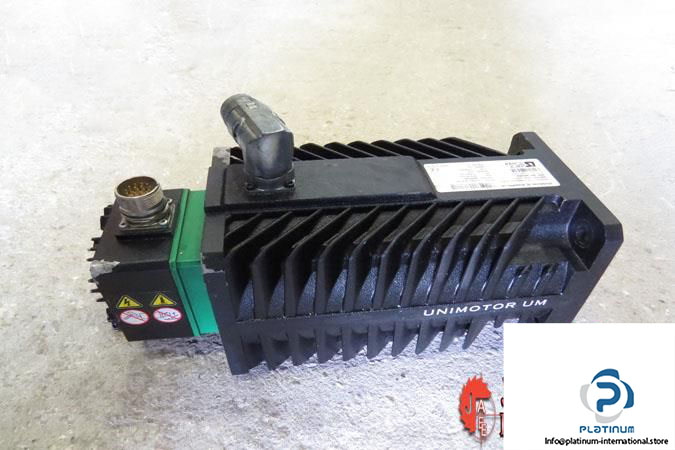

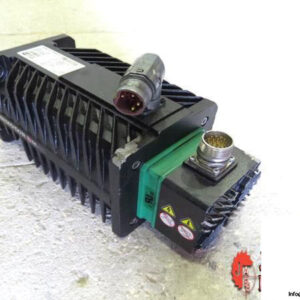

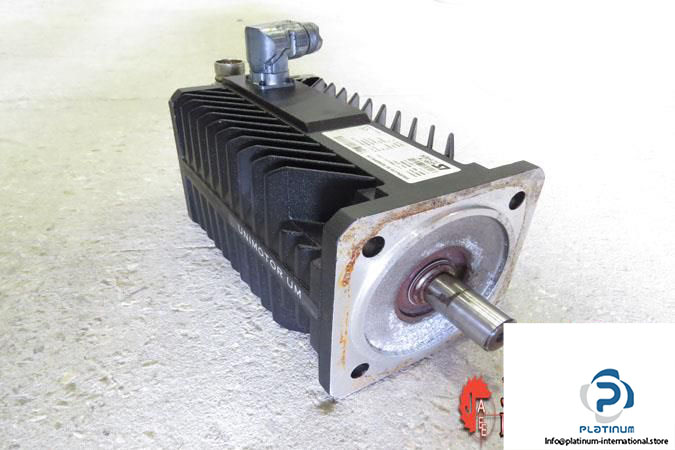

Leroy Somer 115UMB300CBCAA Servo Motor

The Leroy Somer 115UMB300CBCAA Servo Motor is a high-performance motor designed for UNIDRIVE applications. Featuring a 3000 rpm rated speed and an incremental encoder with 4096 PPR feedback, this motor delivers precise control and efficient performance for industrial automation systems.

Manufacturer: LEROY SOMER

Type: Servo Motor

Model: 115UMB300CBCAA

MNF No.: 883368

REF No.: 788174

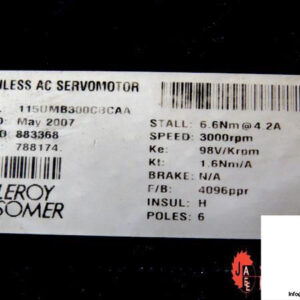

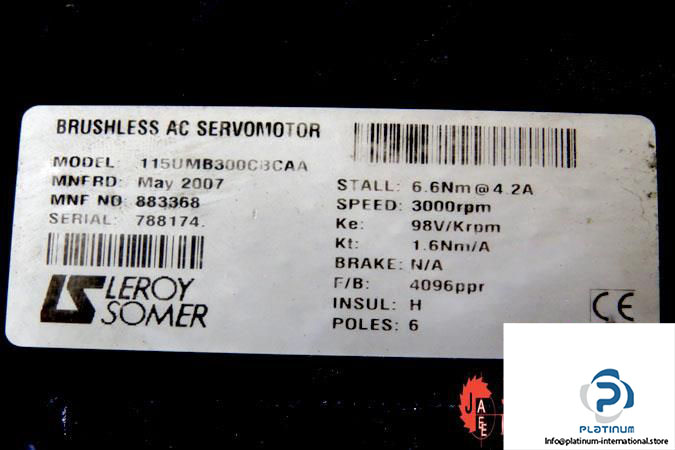

Technical Data:

• Motor Type: For UNIDRIVE
• Rated Speed: 3000 rpm
• Connection Type: Connector
• Feedback Device: Incremental Encoder 4096 PPR
• Frame Size: 115
• Operating Temperature: 0-40°C
• Number of Poles: 6
• Torque Constant: 1.6 Nm/A
• Stall Torque: 6.6 Nm
• Back EMF Constant: 98 V/Krpm
