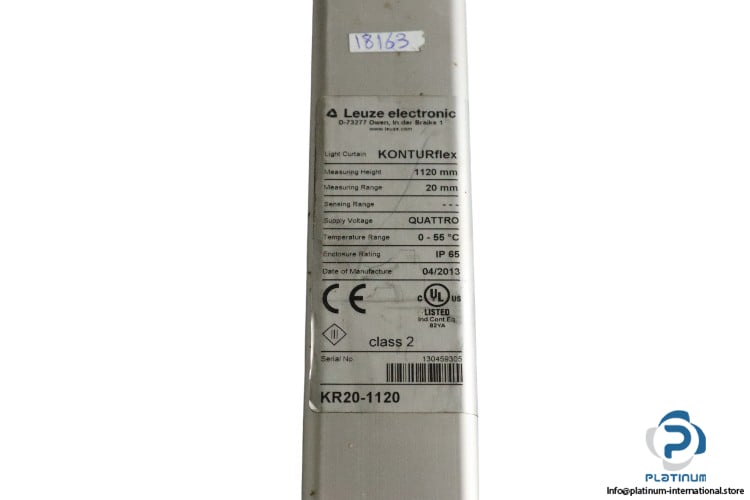

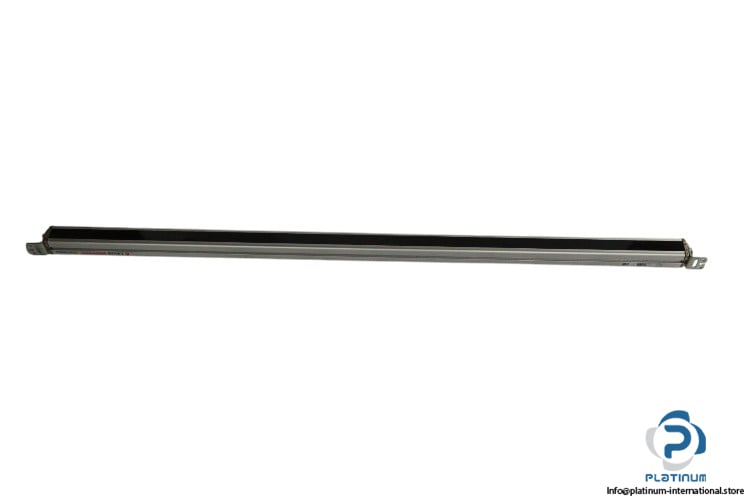

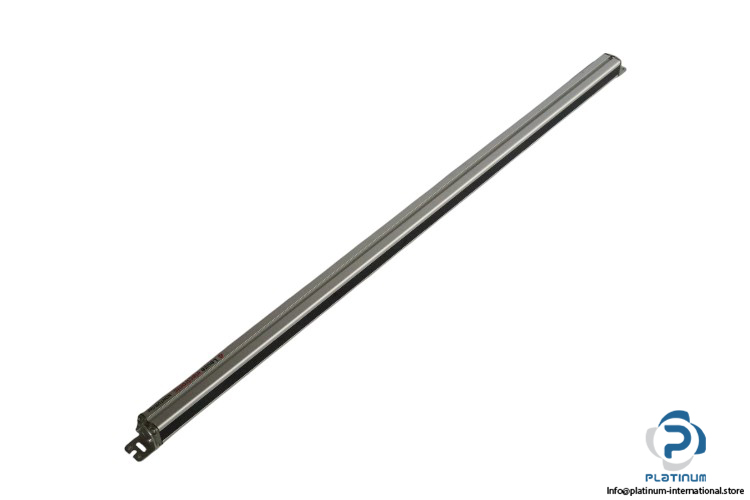

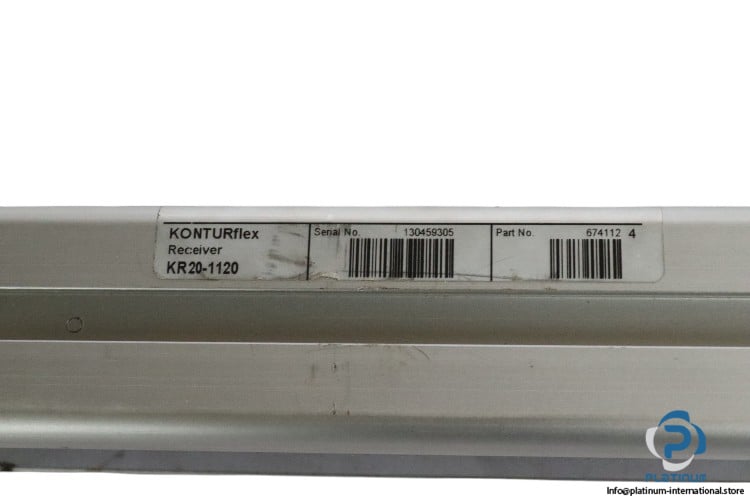

LEUZE KR20-1120 Light Curtain Receiver

The LEUZE KR20-1120 Light Curtain Receiver is a high-performance optical sensor designed for use in industrial automation, safety systems, and control applications. This light curtain receiver has a measuring height of 1120 mm and a beam spacing of 20 mm, making it ideal for precision measurements and detection tasks in industrial settings.

It features parallel-beam scanning, which ensures accurate detection over the entire length of the curtain. The receiver is designed to work with an amplifier and uses a connector for easy installation. The housing is made from durable metal, providing a robust enclosure for the internal components, and the device has a high degree of protection with an IP 65 rating, making it suitable for harsh environments.

• Manufacturer: LEUZE
• Model: KR20-1120
• Measuring Height: 1120 mm
• Beam Spacing: 20 mm
• Special Version: Parallel-beam scanning
• Function: Connection with amplifier
• Connection Type: Connector, M12 thread size
• Response Time per Beam: 50 µs
• Housing Material: Metal
• Degree of Protection: IP 65
• Ambient Temperature: 0 to 55 °C
• Dimensions (W x H x L): 40 x 1,150.8 x 40 mm

With its high degree of protection, fast response time, and robust design, the LEUZE KR20-1120 Light Curtain Receiver is perfect for applications where precise safety monitoring and object detection are critical.
