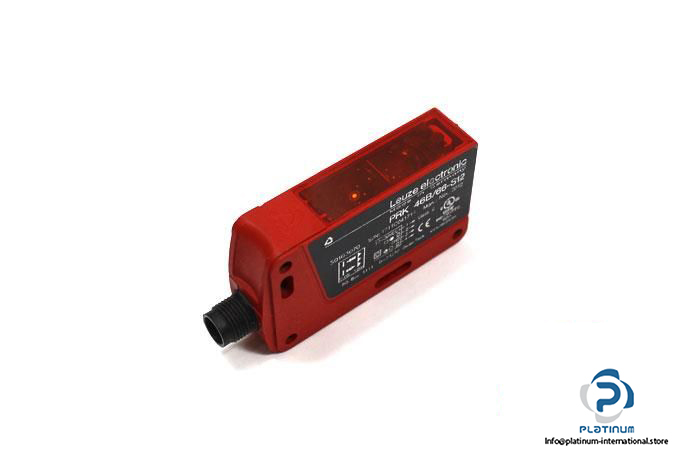

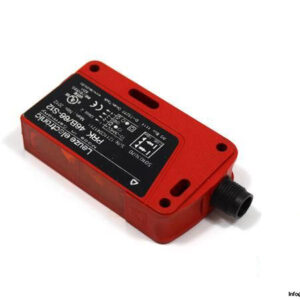

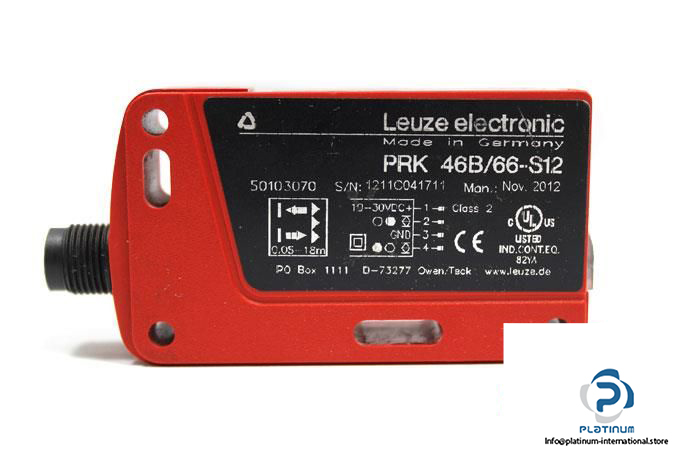

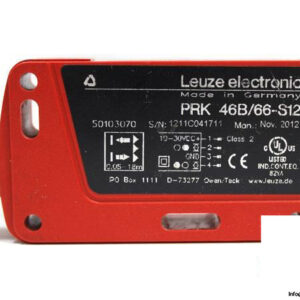

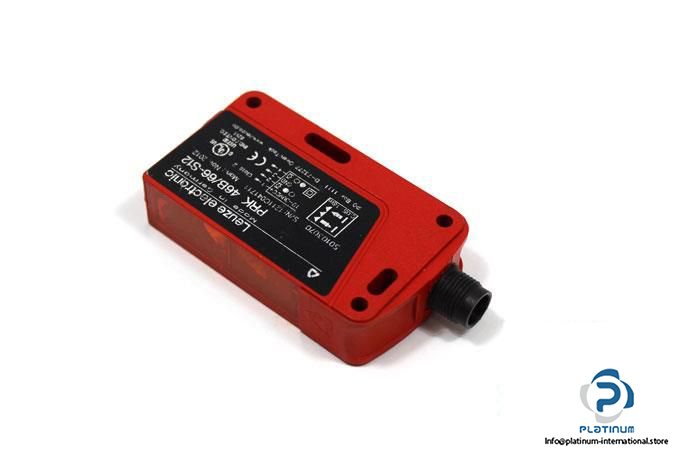

Manufacturer: LEUZE

Type: POLARIZED PHOTOELECTRIC RETRO-REFLECTIVE SENSOR

Order Code: 46B/66-S12

Part No.: 50103070

Sensing range: 0.05 … 18 m

Response time: Transistor; 1 ms , relay 25 ms

Delay before start up: ≤ 300 ms

Operating Voltage: 10 … 30 V DC

Output Current max.: 100 mA

Switching frequency: Transistor 500 Hz, relay 20 Hz

Electrical design: PNP

Switching output: Push-pull (Normally open, normally closed)

Light source: LED

Wave length: 680 nm

Connector type: M12 Connector, 4-pin

Protection class: II

Enclosure rating: IP67, IP69K

Ambient Operating temperature: -30 … 60°C

Dimensions: 43 x 18 x 72 mm

Housing: Rectangular

Housing material: Plastic

Optics cover: PMMA

Condition: Used
