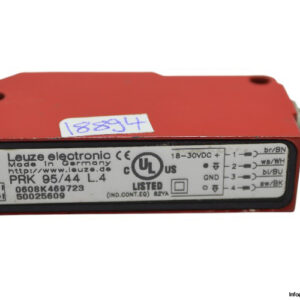

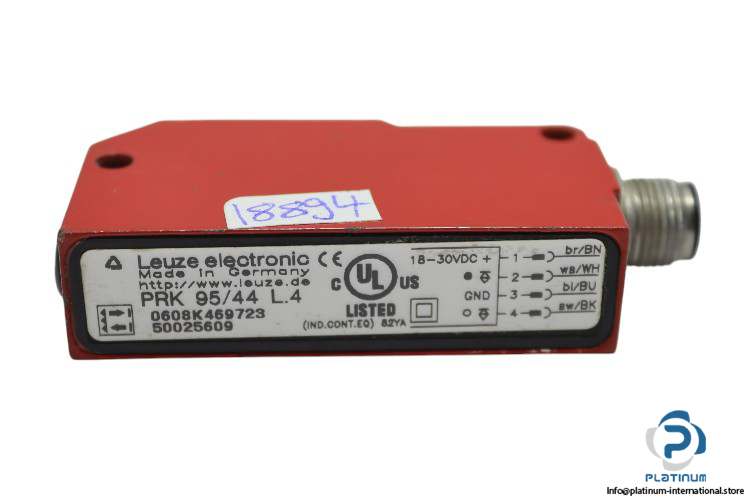

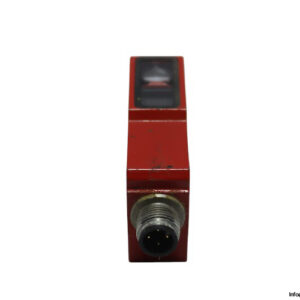

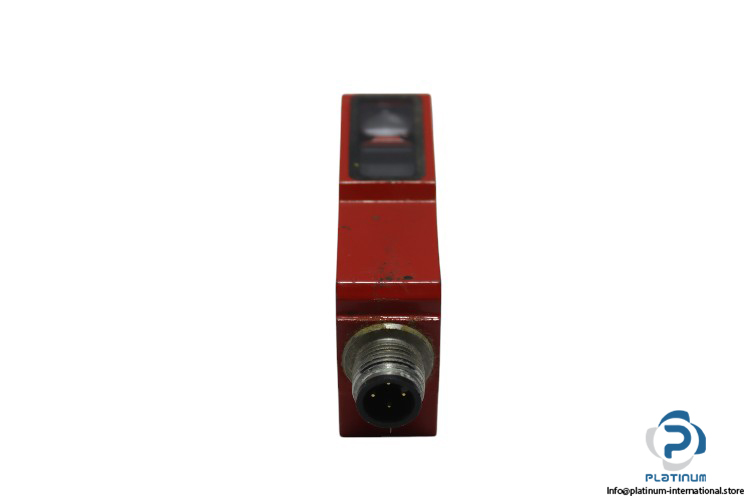

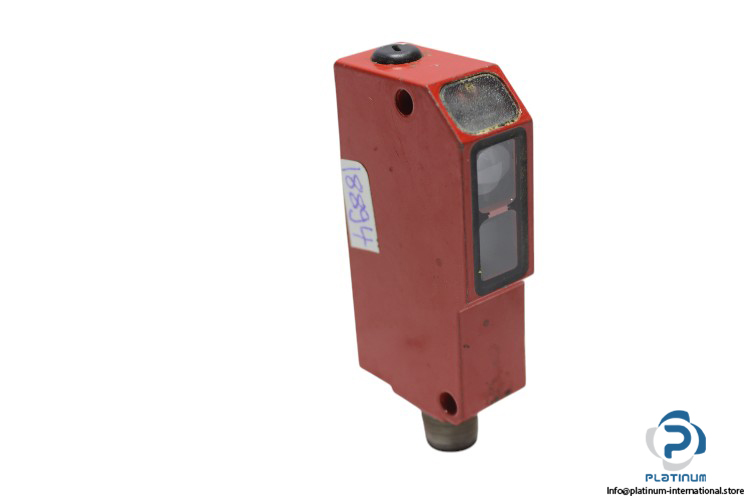

Leuze PRK95/44 L.4 Polarized Retro-Reflective Photoelectric Sensor
The **Leuze PRK95/44 L.4 Polarized Retro-Reflective Photoelectric Sensor** is designed for high-performance sensing applications. It operates with a **10 to 30 V DC supply voltage** and features a **0 to 1.8 m operating range**, with a **range limit** of **3 m**. The sensor uses a **660 nm red LED light source** and operates based on the **reflection principle**. It offers both **PNP light switching** and **PNP dark switching** functionalities, making it ideal for a variety of detection needs. With a **stainless steel housing** and **metal body**, this sensor is built for durability in challenging environments.
- Manufacturer: Leuze
- Type: Polarized Retro-Reflective Photoelectric Sensor
- Model: PRK95/44 L.4
- Part No.: 0608K469723, 50025609
- Series: 95
Technical Information
- Supply Voltage: 10 to 30 V DC
- Open-Circuit Current: 0 to 35 mA
- Operating Range: 0 to 1.8 m
- Operating Range Limit: 0 to 3 m
- Light Source: LED, Red
- Wavelength: 660 nm
- Operating Principle: Reflection principle
- Switching Element 1: Transistor, PNP
- Switching Principle 1: Light switching
- Switching Element 2: Transistor, PNP
- Switching Principle 2: Dark switching
- Type of Connection: Connector
- Thread Size: M12
- Type of Display: LED
- Operational Controls: Multiturn potentiometer
- Material: Stainless steel
- Number of Pins: 4 pins
- Housing Material: Metal
- Lens Cover Material: Glass
- Ambient Temperature for Operation: -25 to 60 °C
- Dimensions (W x H x L): 17 x 66 x 35 mm
The **Leuze PRK95/44 L.4 Polarized Retro-Reflective Photoelectric Sensor** is ideal for precise, reliable sensing and is built for use in industrial environments that require high durability and performance.
