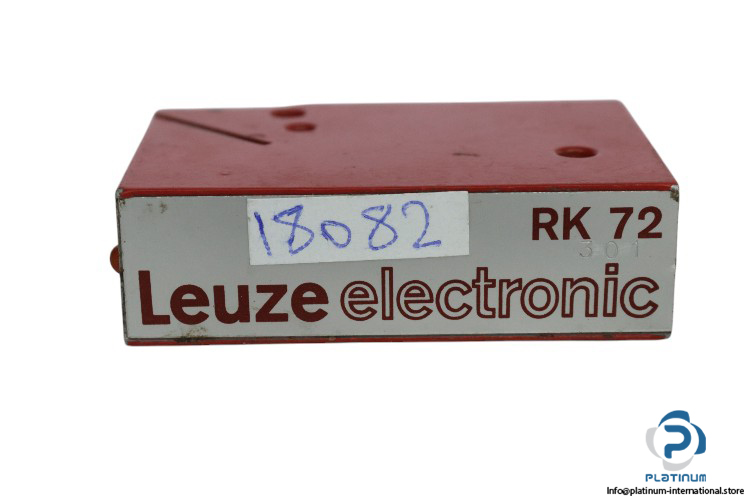

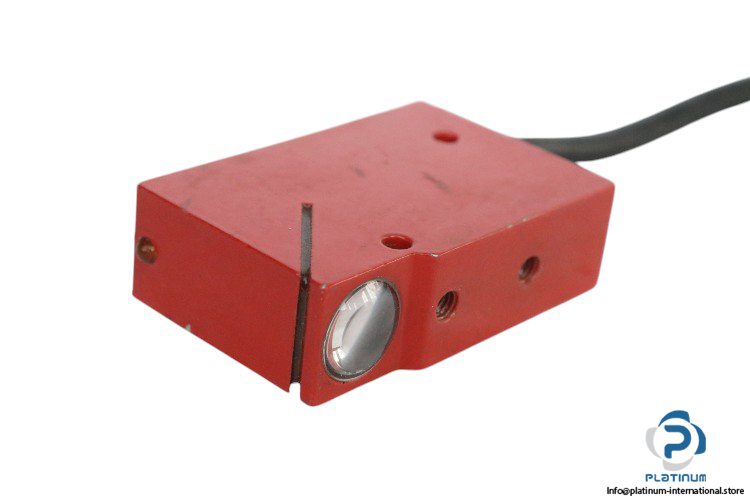

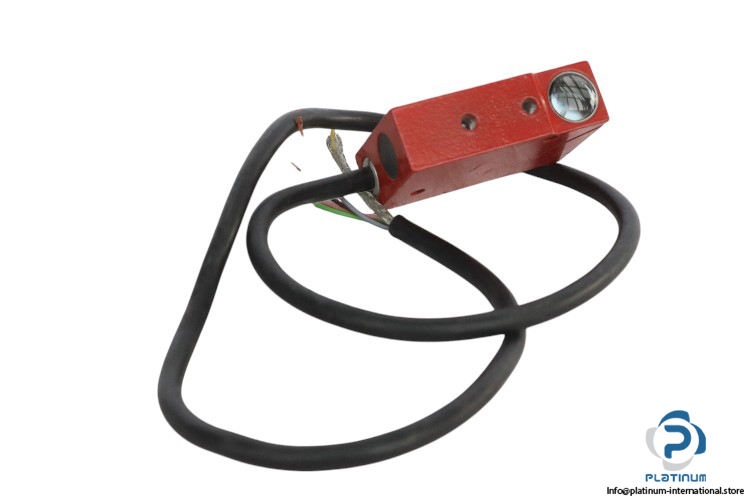

LEUZE RK 72 301 Energetic Diffuse Reflection Light Scanner

The LEUZE RK 72 301 Energetic Diffuse Reflection Light Scanner is a versatile and reliable sensor designed for use in various industrial automation and control applications. It operates within a voltage range of 12 to 30 V DC and is equipped with a bias current of 50 mA, offering excellent performance for precise object detection.

This light scanner features a switching output with the option for either PNP or NPN, providing flexibility for integration into various systems. With a maximum output current of 100 mA, it ensures reliable operation across a range of applications. The device is designed with a connection type that includes an M12 connector (4-pin), plug 4-pin, or cable with a cross-section of 4×0.25mm², providing convenient wiring options.

• Manufacturer: LEUZE
• Model: RK 72 301
• Operating Voltage: 12 / 30 VDC
• Bias Current: 50 mA
• Switching Output: PNP or NPN
• Output Current Max: 100 mA
• Connection Type: M12 connector 4-pin, plug 4-pin, or cable (4×0.25mm²)
• Ambient Temperature: -20°C / +60°C
• Protection Class: IP 67
• Dimensions: 100 x 35 x 15 mm

With its compact design and robust protection rating, the LEUZE RK 72 301 light scanner is ideal for use in harsh environments where reliable object detection is critical.
