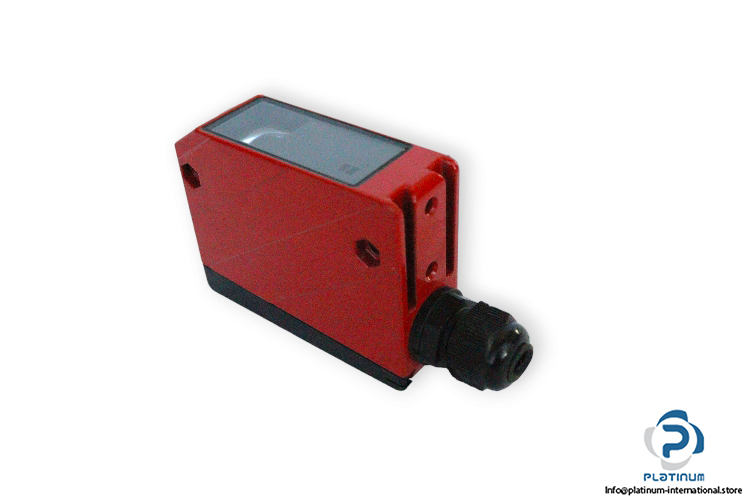

Manufacturer: LEUZE
Type: Single light beam safety device transmitter

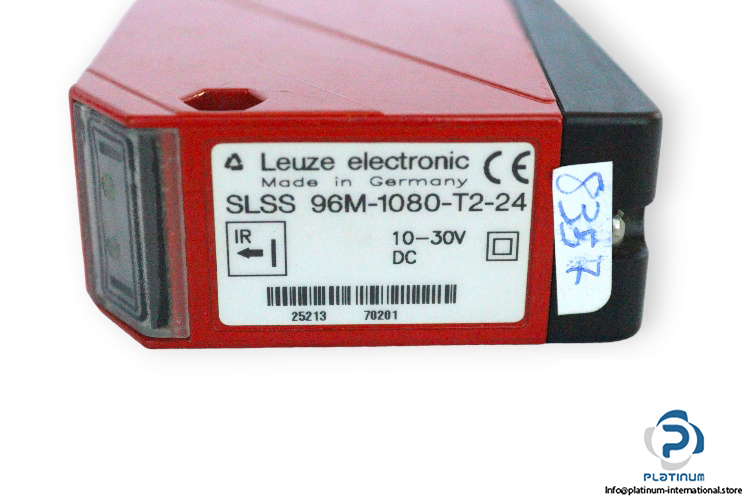

Model: SLSS 96M-1080-T2-24
Part no.: 50025213
Configured with Receiver: SLSE 96M/P-1070-T2-21
Series: 96
Supply Voltage: 10 … 30 V DC
Response time: 1 ms
Operating range: 0 … 50 m
Operating range limit: 0 … 65 m
Light source: LED, Infrared
No. of Pins: 3
Wavelength: 880 nm
Transmitted-signal shape: Pulsed
Operating Temperature: -20 … 60 °C
Degree of protection: IP67
Dimensions: 90 X 70 X 30 mm
