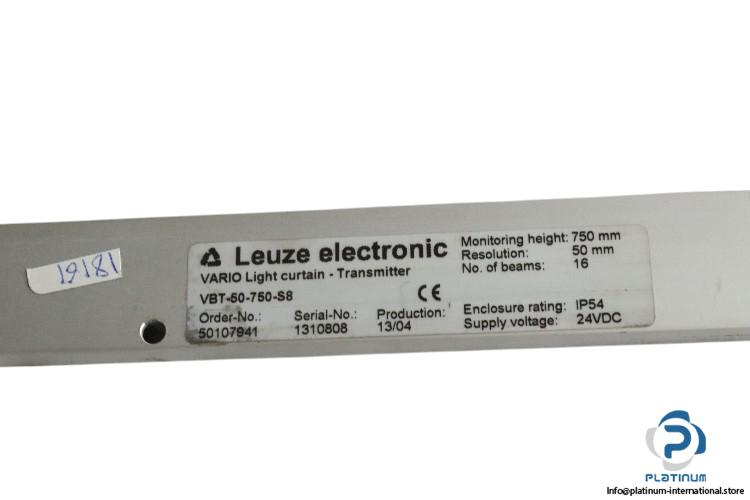

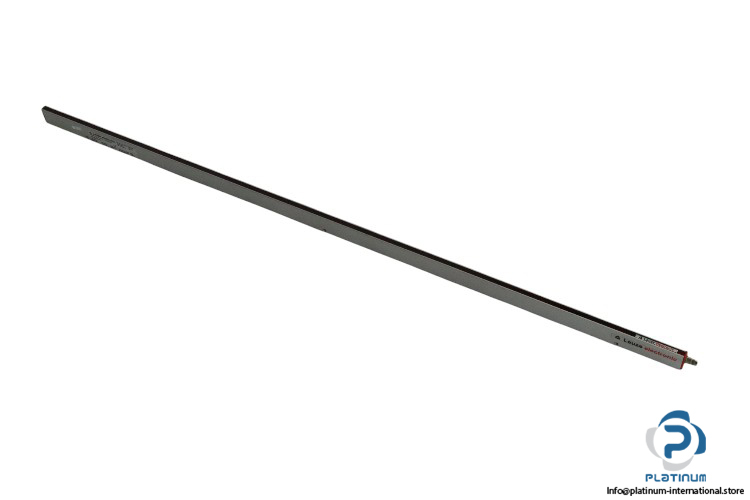

LEUZE VBT-50-750-S8 Light Curtain Transmitter

The LEUZE VBT-50-750-S8 Light Curtain Transmitter is an advanced sensor designed for use in industrial applications that require precise object detection. This light curtain transmitter operates with a supply voltage of 24 V DC and has an operating range of 0.7 to 5 meters, making it ideal for medium-range detection tasks.

With a measurement field length of 750 mm and a beam spacing of 50 mm, the transmitter is equipped with a high-quality LED infrared light source for reliable and accurate performance. The M8 4-pin connector ensures easy and secure wiring, while the IP54 protection rating guarantees durability in demanding environments.

• Manufacturer: LEUZE
• Model: VBT-50-750-S8
• Supply Voltage: 24 V DC
• Operating Range: 0.7 … 5 m
• Measurement Field Length: 750 mm
• Beam Spacing: 50 mm

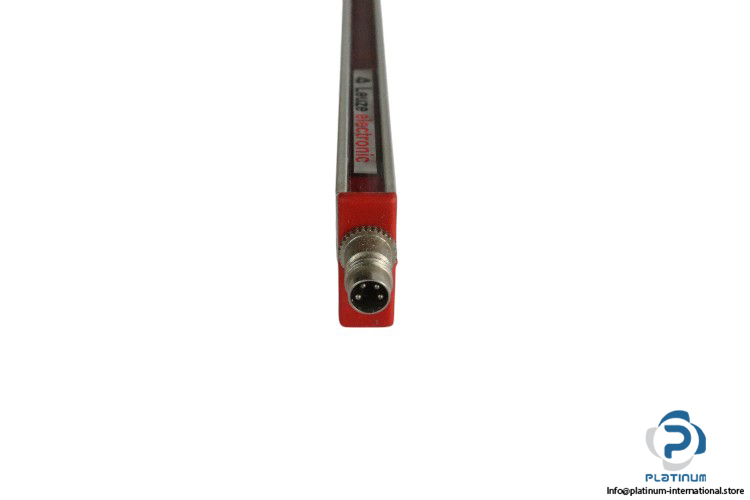

• Connector Type: M8 4-pin
• Protective Circuit: Polarity reversal protection, Short circuit protected
• Housing Material: Metal
• Degree of Protection: IP 54
• Operating Temperature: -10 / +45 °C
• Dimensions: 10 mm x 960 mm x 27 mm

Perfect for industrial use, the LEUZE VBT-50-750-S8 light curtain transmitter offers precise control and reliable operation in a compact, durable design.
