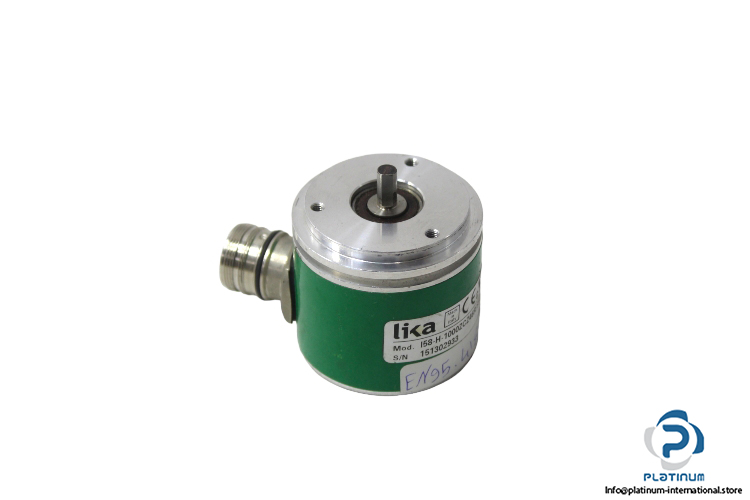

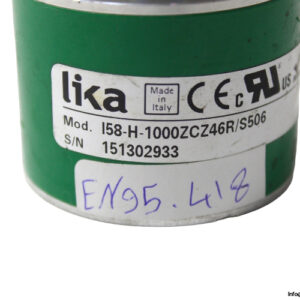

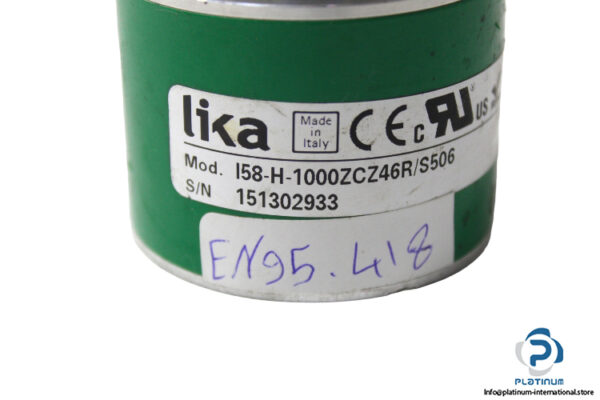

LIKA I58-H-1000ZCZ46R/S506 INCREMENTAL ENCODER
The Lika I58-H-1000ZCZ46R/S506 is a high-resolution incremental encoder designed for precision motion detection in industrial environments. With robust construction and a universal output circuit, it ensures compatibility and performance under demanding conditions.
Manufacturer: Lika
Type: Incremental Encoder
Model: I58-H-1000ZCZ46R/S506
Serial No.: 151302933
Technical Information
- Supply Voltage: 5 / 30 V
- Shaft Diameter: 6 mm
- Resolution: 1000 ppr
- Connection Position: Radial
- Output Circuit: PP/LD Universal Circuit
- Output Signals / Connections: AB0 /AB0, M23 12 Pin Plug
- Operating Temperature: -25 / +85 °C
- Degree of Protection: IP64
