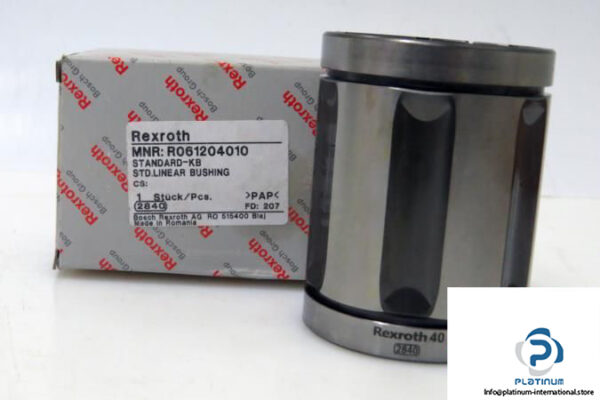

Manufacturer: REXROTH
Type: Standard Linear Bushing
MNR: R0612 040 10

Format of linear bushings: E – Adjustable
Dimensions:
Shaft diameter d0: 40 mm
Rows of Balls: 6
Breakaway force: 24 N
Maximum Acceleration Travel amax: 100 m/s2
Max. Permissible Speed v_max: 2.5 m/s
Dynamic Load rating:
C_min: 5170 N
C_max: 5480 N
Static Load rating:
C_0min: 3810 N
C_0max: 4880 N
Dimensions:
D: 62 mm
C: 80 mm
C1: 60.3 mm
C2: 2.15 mm
D1: 58 mm
E: 2 mm
Seals: With two wiper seals
Permissible Ambient Temperature: -10 … +80 °C
