NOVOTECHNIK TS 150 LINEAR ENCODER

novotechnik-TS-150-linear-encoder
novotechnik-TS-150-linear-encoder-1
novotechnik-TS-150-linear-encoder
novotechnik-TS-150-linear-encoder-1
Used
Manufacturer: Siedle Novotechnik Ž

NOVOTECHNIK TS 150 LINEAR ENCODER

POSITION TRANSDUCER

The Siedle Novotechnik TS 150 is a precision position transducer with a 152 mm electrical stroke and 5 kΩ resistance. Designed with a stainless steel rod and aluminum housing for rugged industrial use.

SKU: 981083 Category: Tags: , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

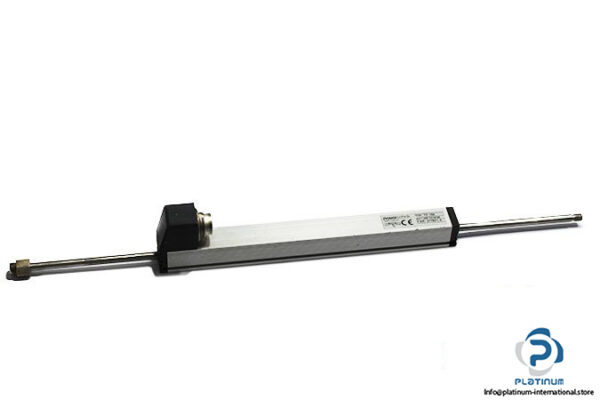

SIEDLE NOVOTECHNIK TS 150 POSITION TRANSDUCER

The TS 150 from Siedle Novotechnik is a high-precision position transducer engineered for accurate linear displacement measurements in industrial environments. With a robust aluminum housing and stainless steel actuating rod, this transducer ensures durability and long-term reliability in harsh conditions.

Manufacturer: Siedle Novotechnik
Type: Position Transducer

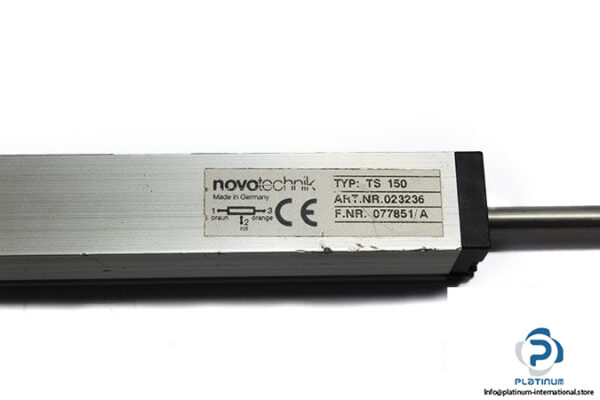

Model: TS 150
Part No.: 023236
REF NO: 077851/A

Technical Information

  • Mounting: Adjustable clamps
  • Actuating rod: Stainless steel AISI 303
  • Electrical Connection: 5-pin round connector IEC 130-9
  • Electrical Stroke: 152 mm
  • Mechanical Stroke: 155 ±1.5 mm
  • Nominal Resistance: 5 kΩ
  • Body Length: 188 +1 mm
  • Housing: Aluminum
  • Operating Temperature: -30 / +100°C
Weight0,16 kg
