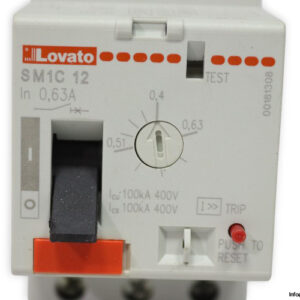

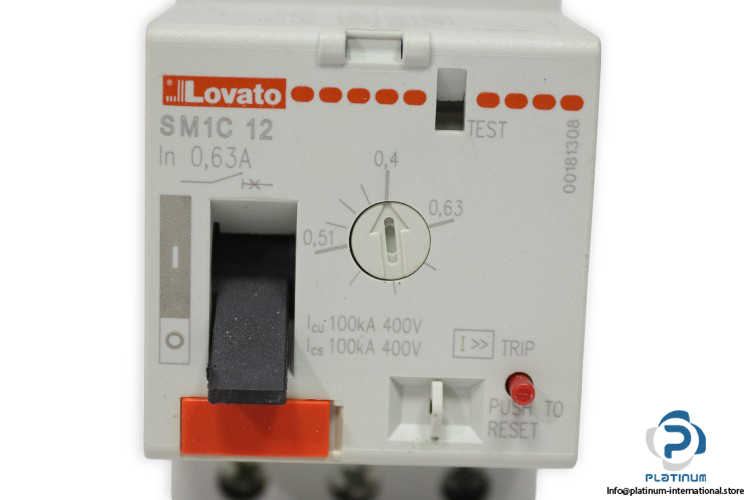

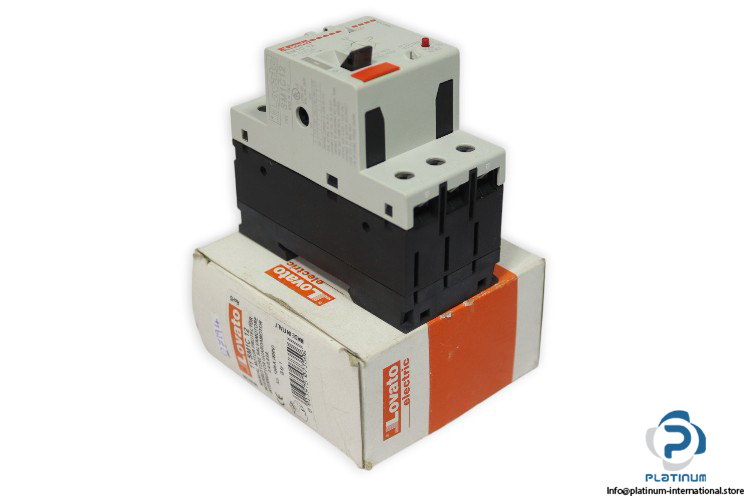

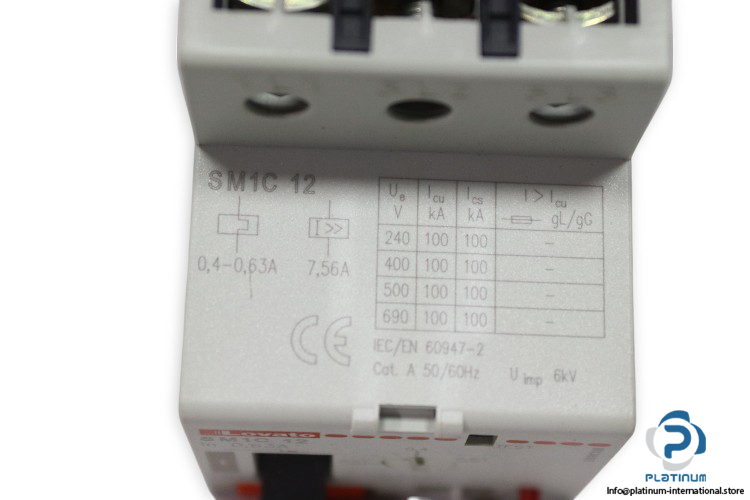

LOVATO 11SM1C12 MANUAL MOTOR PROTECTOR

High-performance manual motor protector designed for precision thermal and magnetic protection in low-power industrial motors. Compliant with IEC/EN 60947-2 standards, it ensures superior safety, reliability, and operational endurance under fault conditions.

• Manufacturer: Lovato
• Type: Manual Motor Protector
• Model: 11SM1C12
• ID No.: 00181308

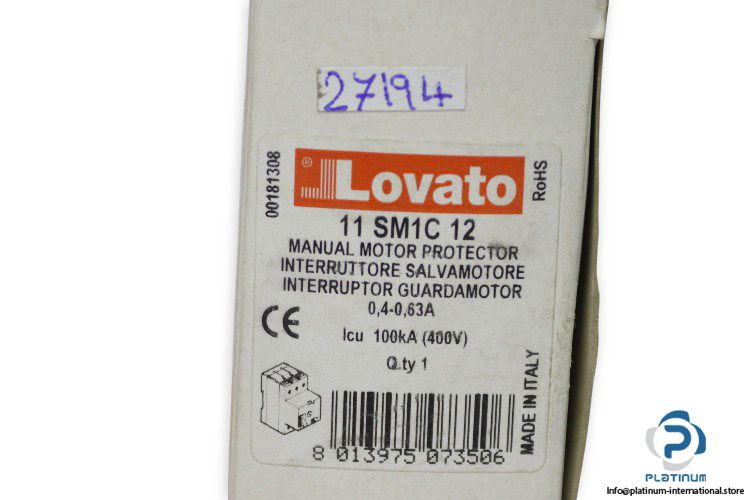

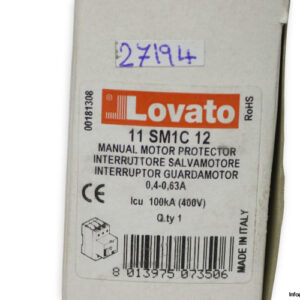

• Ref. No.: 8013975073506

Technical Information

• No. of Poles: 3
• Rated Insulation Voltage (Ui): 690 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Rated Frequency: 50/60 Hz
• Thermal Trip Adjustment Range: 0.4 to 0.63 A
• Rated Current (In): 0.63 A

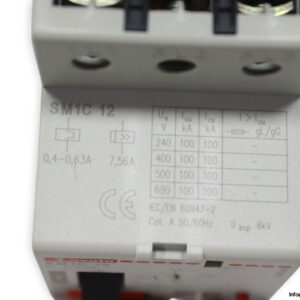

• Operational Short-Circuit Breaking Capacity (Ics) at 400V: 100 kA
• Maximum Short-Circuit Breaking Capacity (Icu) at 400V: 100 kA
• Standard: IEC/EN 60947-2
