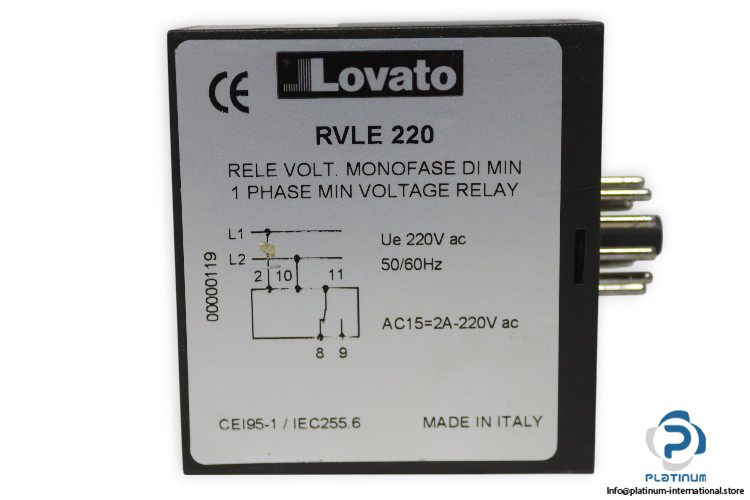

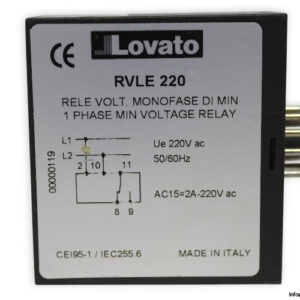

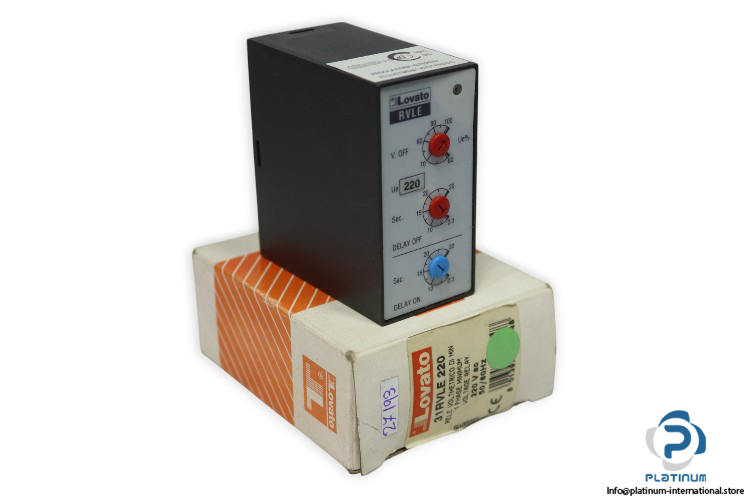

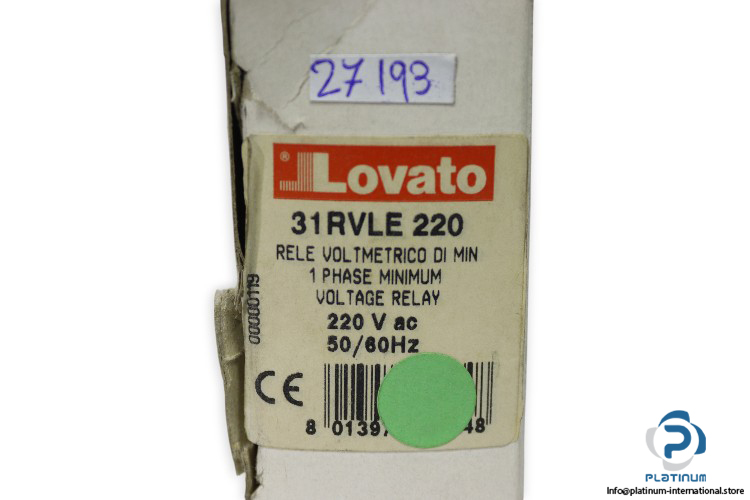

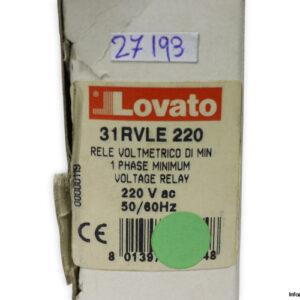

LOVATO 31RVLE220 PROTECTIVE RELAY

Reliable and compact protective relay designed for voltage monitoring and control in single-phase AC systems. The 31RVLE220 from the RVLE series offers adjustable time delays and precise voltage sensitivity, ensuring safe system operation and shutdown control.

• Manufacturer: Lovato
• Type: Protective Relay
• Model: 31RVLE220
• Series: RVLE
• Reference No.: 00000119

Technical Information

• Rated Voltage Ue: 220 V AC / 1-phase
• Frequency: 50/60 Hz

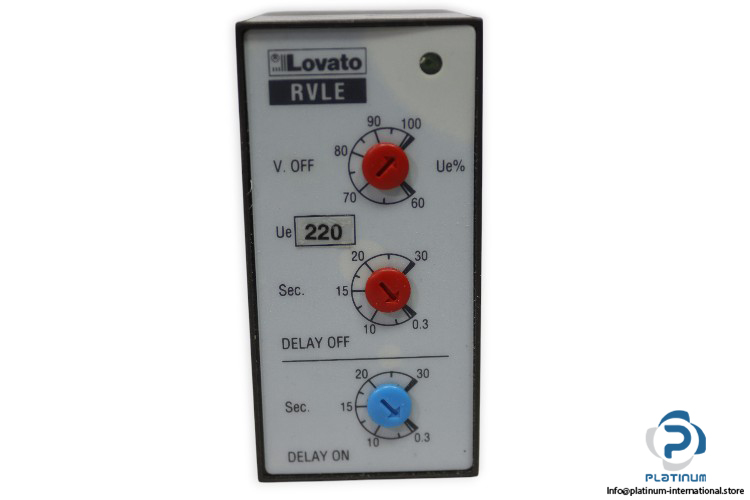

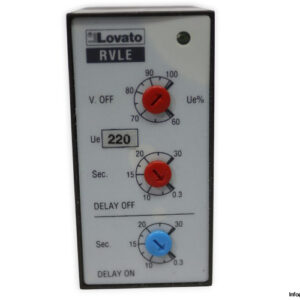

• Setting Time Range (220 V): Delay Off: 0.3 to 10 s / Delay On: 0.3 to 10 s
• Off Delay Voltage Range Voff: 60% to 100% Ue
• Contact Type: 1 CO (Changeover Contact)
• Switching Current AC15: 2 A at 220 V AC
• Standard Compliance: CEI95-1 / IEC255.6

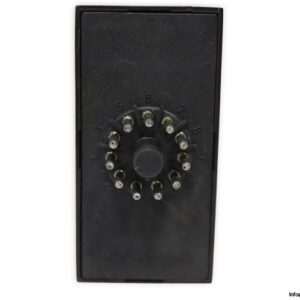

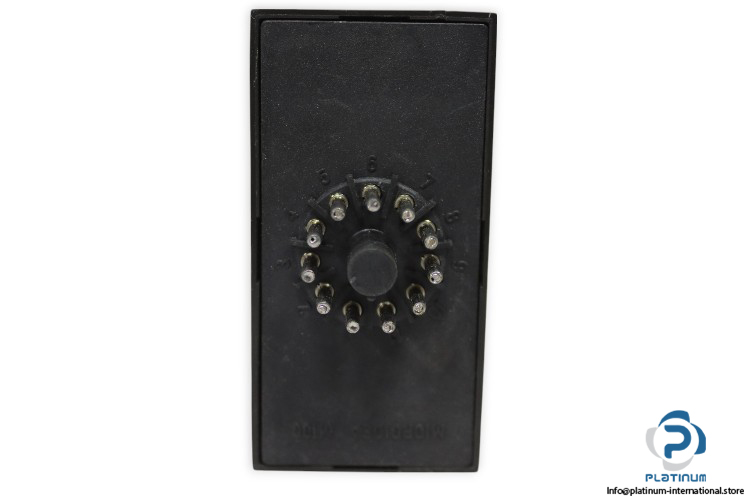

• No. of Connection Pins: 11
