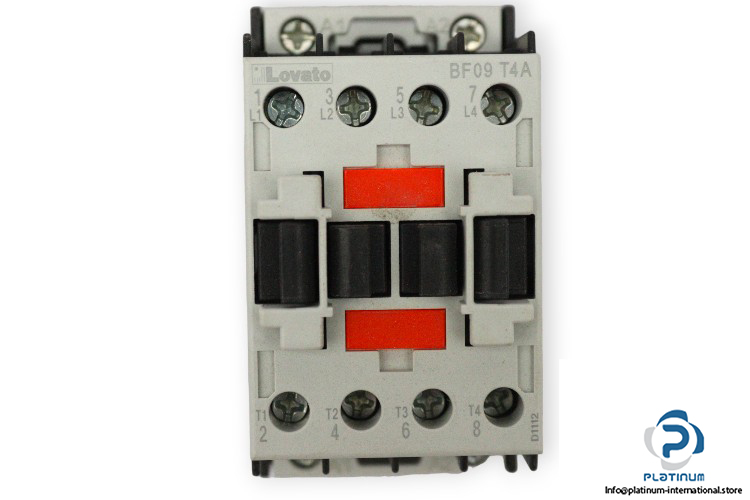

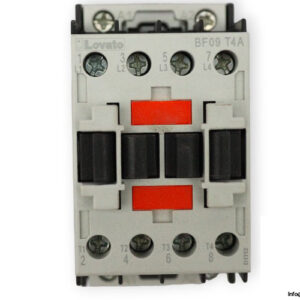

Manufacture: Lovato electric
Type: Power contactor
Model: BF09 T4 A230

No. of poles: 4

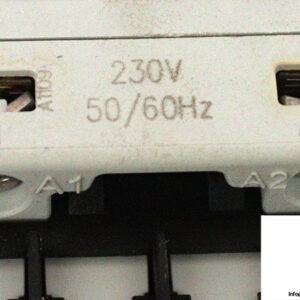

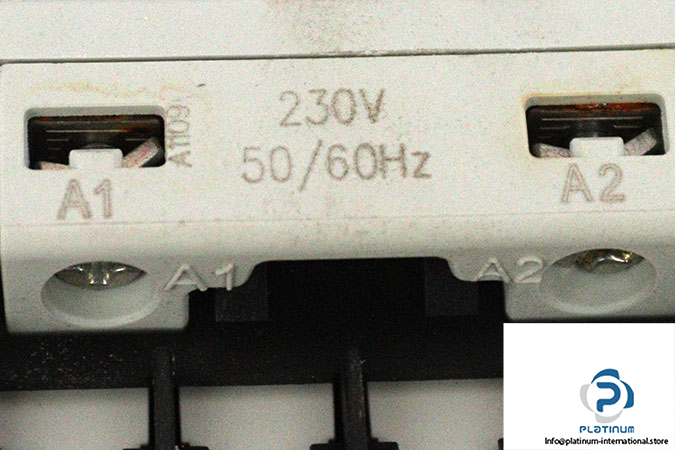

Rated voltage: 230 V AC,50/60 Hz
Rated insulation voltage Ui: 690 V
Rated impulse withstand voltage Uimp: 6 kV
Operational frequency: 25 … 400 Hz
Conventional free air thermal current Ith: 25 A
Operational current Ie: 4.9 A (AC-4) @400V
Rated operational power: 16 kW @400V
Power dissipation per pole: 0.2 W (AC-3)
Fixing: Screw / DIN rail 35 mm
Operating temperature: -50 … 70°C
Pollution degree: 3
Dimensions: 80.7 x 45 x 81 mm
