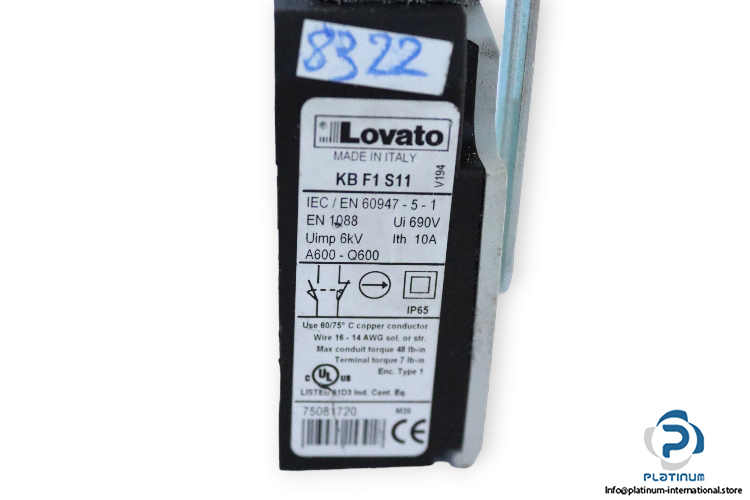

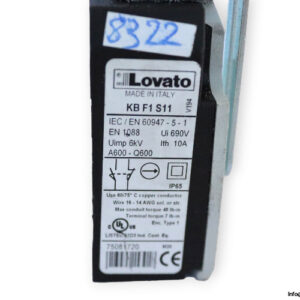

Manufacture: Lovato
Type: Limit Switch
Model: KBF1S11
Series: K

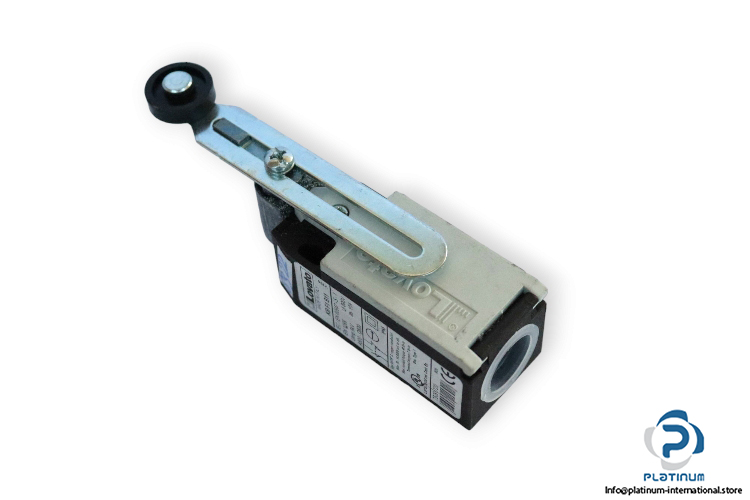

Product designation: Adjustable Roller Lever
Material: Housing: Polymer thermoplastic, Roller: Plastic
Type of contact: 1 NO+1 NC Snap action
Thermal current Ith: 10 A
Rated insulation voltage Ui: 690 V
Rated impulse withstand voltage Uimp: 6 Kv
Operating head: fixing Locking bayonet insert
Cable connection: Self-releasing, screw terminal
Cable entry: M20 on the bottom
Operating temperature: -25 … 70°C
Protection degree: Terminals IP20, Body housing IP65
Pollution degree: 3
