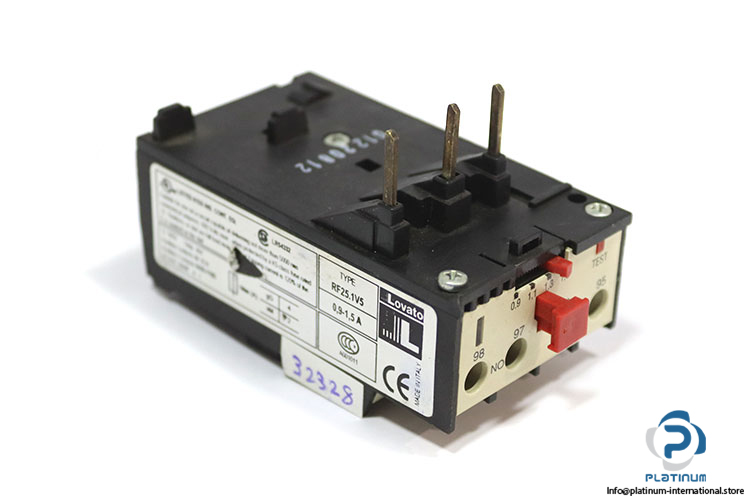

LOVATO RF 25.1V5 Heat Dissipation Motor Protection Relay
A reliable and efficient motor protection relay designed to safeguard motors from overload conditions, ensuring stable performance and extended equipment life. Ideal for industrial control panels and automation applications. Manufacturer: LOVATO
Type: Heat Dissipation Motor Protection Relay
Model: RF 25.1V5
Series: RF25
Technical Information
- Current Range: 0.9“1.5 A
- Resistance per Phase: 0.95

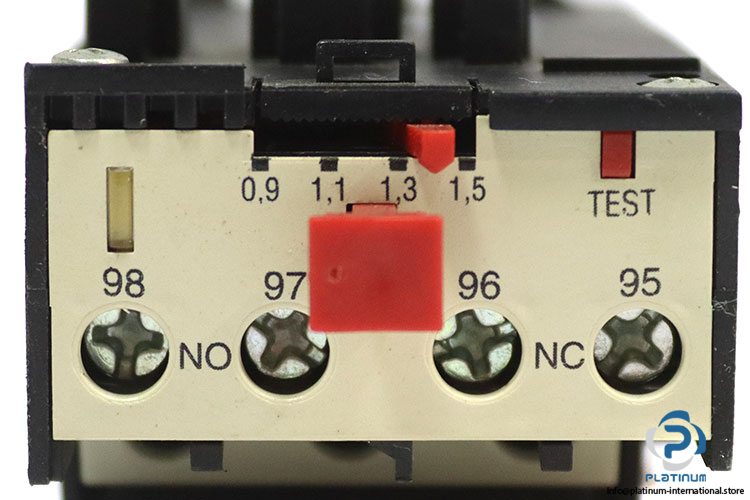

- Auxiliary Contacts: 1 NO (98/97), 1 NC (95/96)
- Trip Class: Class gG 4, Class aM 2

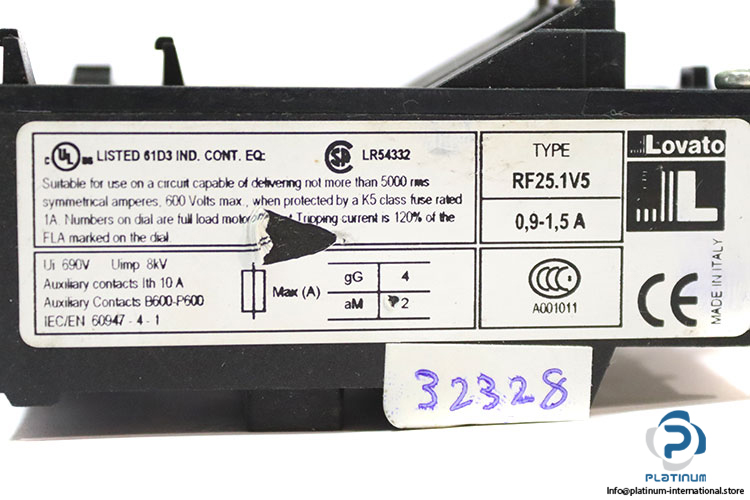

- Rated Insulation Voltage (Ui): 690 V
- Impulse Withstand Voltage (Uimp): 8 kV
- Auxiliary Contact Ratings: Ith 10 A
- Dissipation at Minimum Range Value per Phase: 0.77 W
- Dissipation at Maximum Range Value per Phase: 2.13 W
- Standard: IEC/EN 60947-4-1
