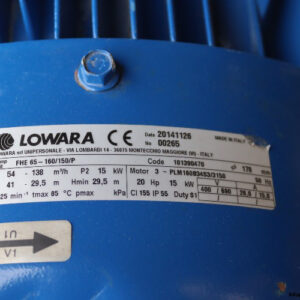

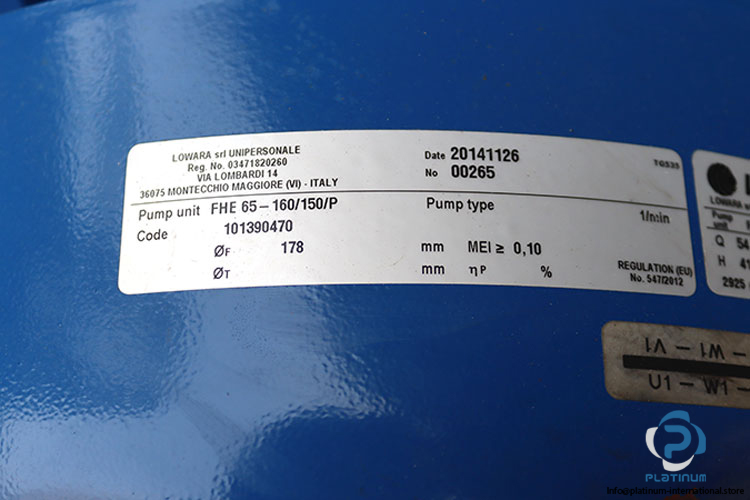

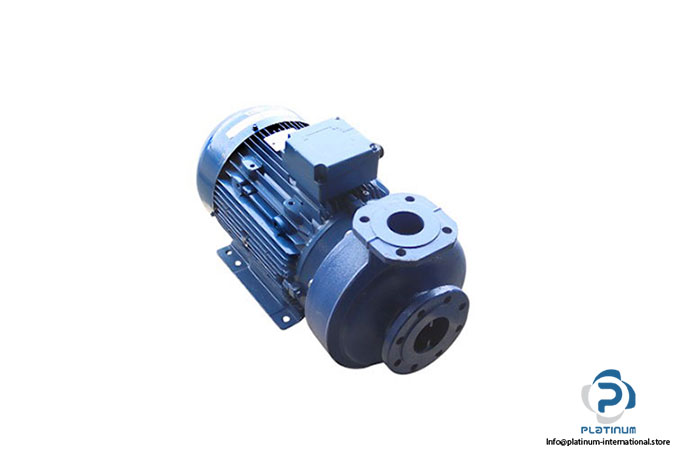

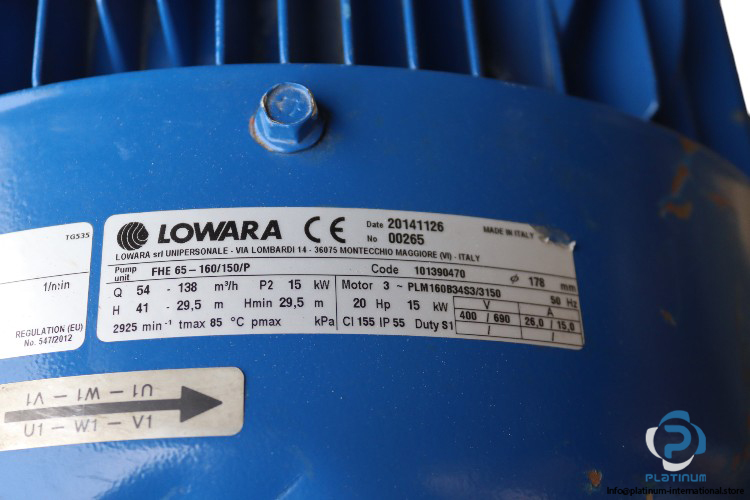

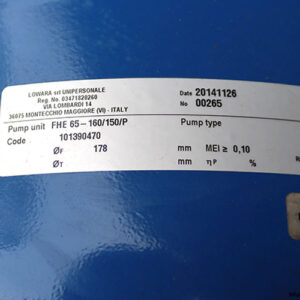

Lowara FHE 65-160/150/P Centrifugal Pump

The Lowara FHE 65-160/150/P Centrifugal Pump is designed for high efficiency in demanding applications. With a flow rate ranging from 54 to 138 m3/h and a 15 kW power, it ensures smooth and reliable water pumping in various industrial and commercial systems.

Manufacturer: Lowara

Model: FHE 65-160/150/P

Type: Centrifugal Pump

Code: 101390470

Technical Information:

• Design: E, Close-coupled version
• Discharge Port Nominal Diameter: 65 mm
• Flow Rate: 54 to 138 m3/h
• Power: 15 kW
• Max. Operating Temperature: 85 °C
• Speed: 2925 rpm
• Head Range: 29.5 to 41 m
• Impeller Diameter: 178 mm

Attachment: LOWARA PLM160B34S3/3150 MOTOR

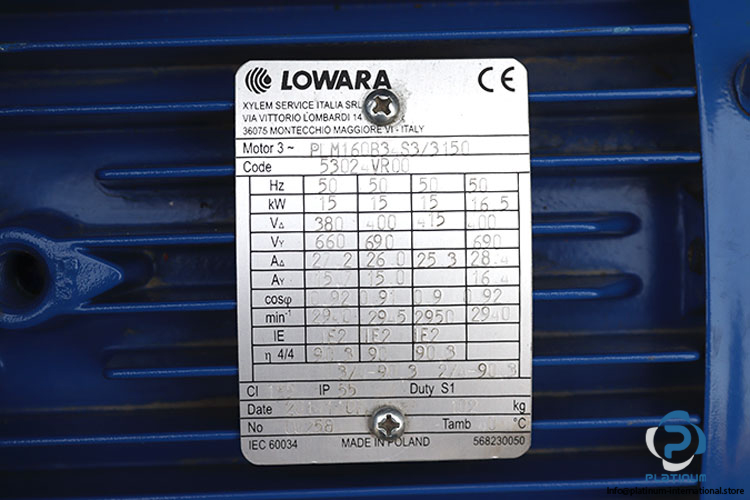

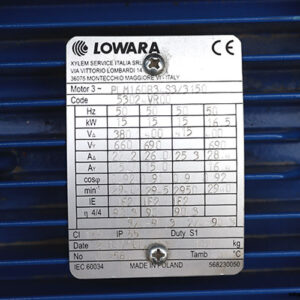

Lowara PLM160B34S3/3150 Motor

Manufacturer: Lowara

Model: PLM160B34S3/3150

Type: Motor (3 Phase)

Code: 53024VR00

Motor Technical Information:

• Motor Voltage [V] @ 50 Hz: 400 to 690 Delta/Star
• Current [A]: 15 to 28.4
• Rated Power [kW/Hp]: 15 to 16.5 / 20
• Rated Speed [RPM]: 2910 to 2950
• Power Factor: cos 0.9/0.91/0.92
• Protection Class: IP55
• Duty: S1
• Class: 155
