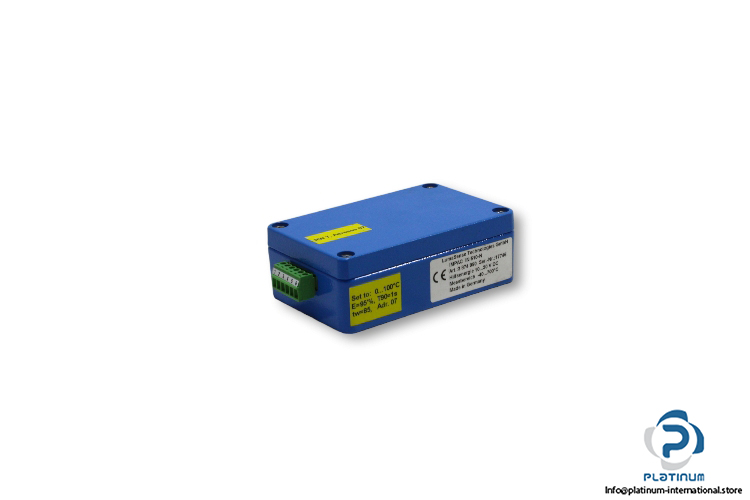

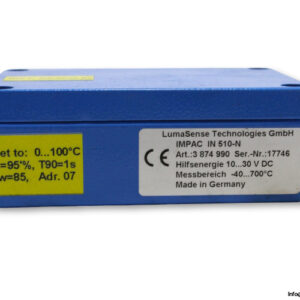

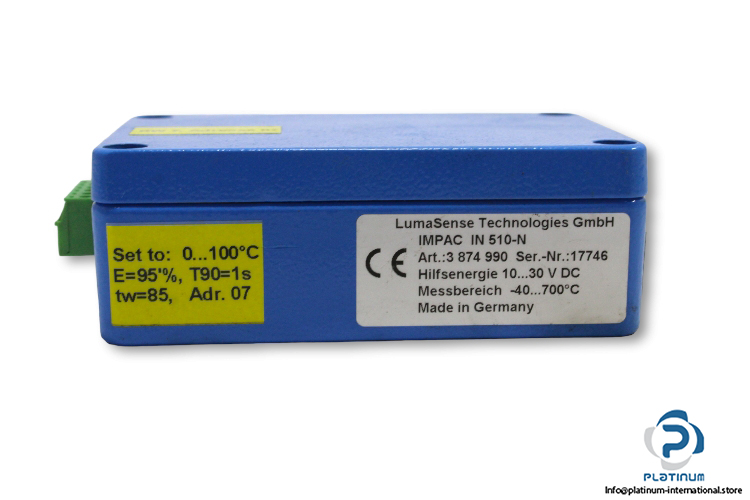

Manufacturer: LUMASENSE

Type: Digital Pyrometer With Miniature Sensor Head

Model: IMPAC IN 510-N

Art No.: 3 874 990

Application: for non-contact temperature measurement of nonmetallic or coated metallic surfaces in ranges of -40 to 700°C

Supply Voltage: 10 … 30 V DC

Spectral Range: 8 to 14 µm

Measuring Distance: 1000 mm

Spot Size: 5 … 490 mm

Switching Output: 0/4 to 20 mA, 0 to 5 V or thermocouple

Digital Interface: Switchable RS232/RS485

Output for Sensor Head Temp: 10 mV/°C

Sensor head Diameter: M12

Converter Dimensions: 98 x 64 x 34 mm

Operating Temperature: -40 … 700°C
