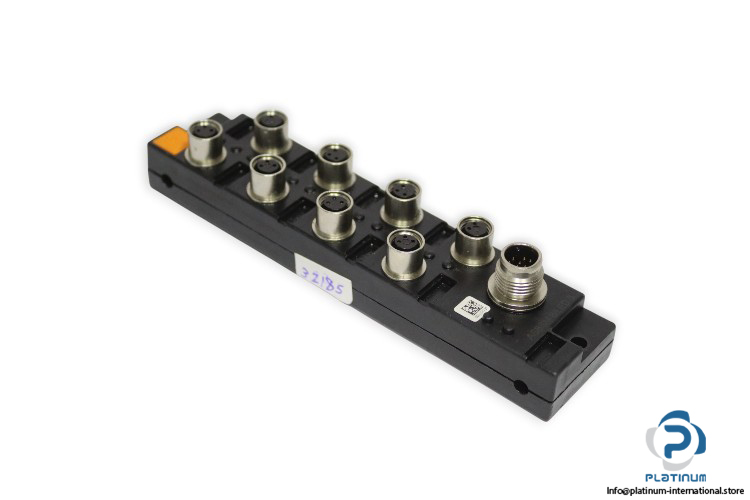

LUMBERG AUTOMATION ASBSM 8/LED 3 Sensor Distribution Box
The LUMBERG AUTOMATION ASBSM 8/LED 3 is a robust sensor distribution box designed for reliable signal and power distribution in demanding industrial environments. With 8 M8 ports, LED indicators, and IP67 protection, it supports NFPA 79 applications and ensures secure connectivity for automation systems.
Manufacturer: LUMBERG AUTOMATION
Type: Sensor Distribution Box
Model: ASBSM 8/LED 3
Code: 000065347000058737

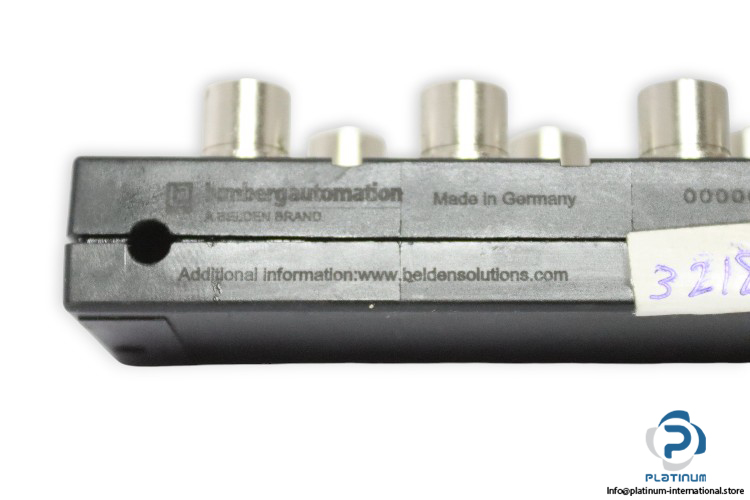

Brand: Belden
Product Sub Family: LioN-S Passive
Technical Information
- I/O Connection: M8, 3 poles, A coded
- Number of Ports: 8
- I/O Wiring Configuration: Single I/O per port
- Control Cable Interface: M12, 12 poles, A coded
- Housing Material: PBT and ASA
- Housing Color: Black
- Protection Degree: IP67
- Dimensions (W x H x D): 30 mm x 28.8 mm x 137 mm
- Ambient Temperature (Operation): minus 25 to 70 degree Celsius
- Pollution Degree: 3 according to EN 60664-1 and VDE 0110-1
- Contact Base Material: M8 CuSn, M12 CuZn
- Contact Bearer Material: PA
- O-Ring Material: FKM
- Fastening Torque (I/O Connection): M8: 0.3 Nm
- Status Indicator (System Supply): LED green
- Actuator Supply Voltage (Nominal): 24 V DC (SELV / PELV)
- Actuator Supply Voltage (Range): 10 to 30 V DC
- Digital Input Channels Wiring: 2 wire, 3 wire, 4 wire
- Sensor Type: PNP
- Digital Output Channels Wiring: 2 wire, 3 wire
- Port Channels Current per Connector: Maximum 1.5 A
- Current per Module: Maximum 1.5 A
- Status Indicator (Port): LED yellow per channel

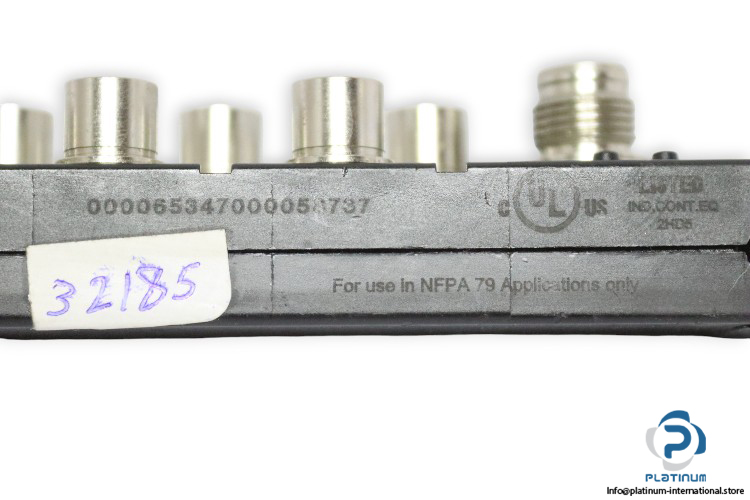

- For Use In: NFPA 79 Applications
