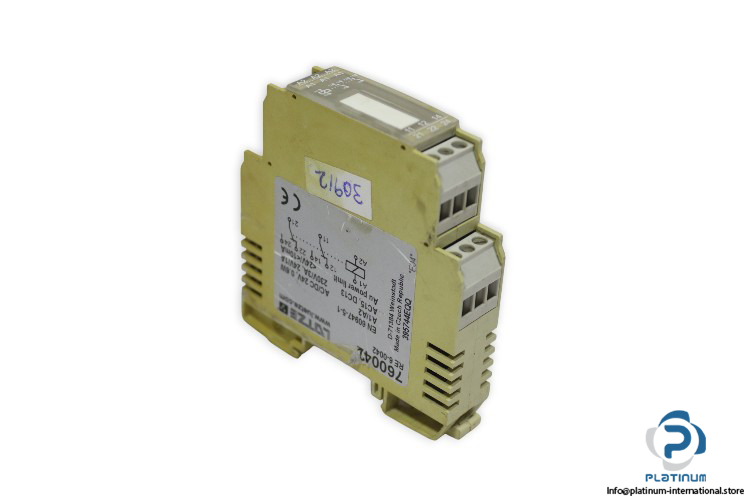

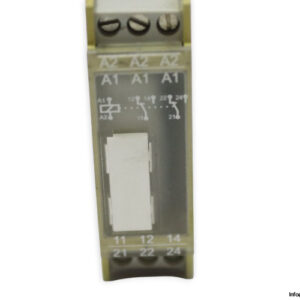

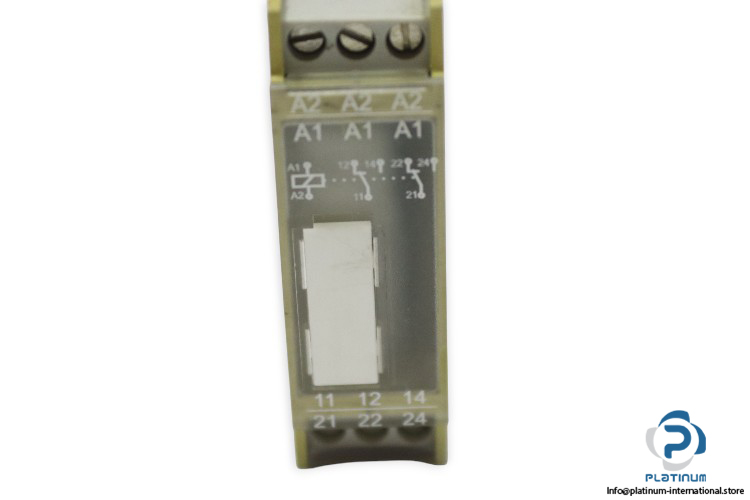

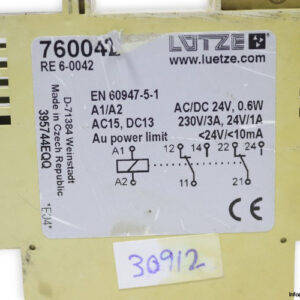

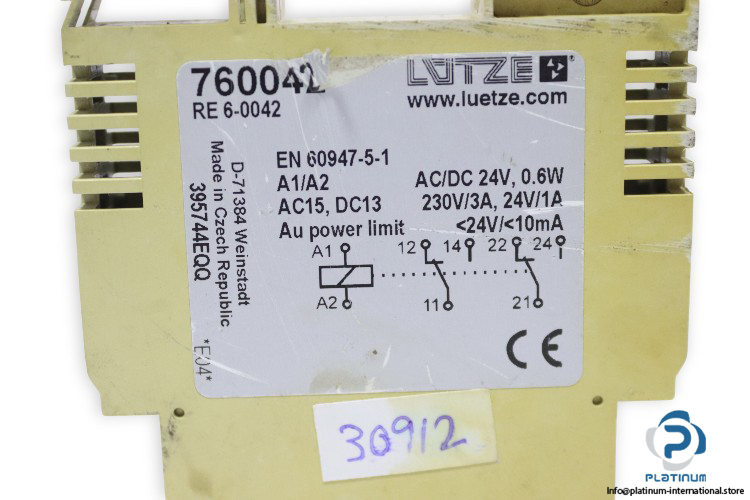

Lutze RE6-0042 Relay Coupler Module

The Lutze RE60042 Relay Coupler Module is a compact and reliable interface module designed for electrical isolation and signal coupling in automation systems. It ensures precise switching performance, high reliability, and safe operation in control panels and machinery applications.

Manufacturer: Lutze
Type: Relay Coupler Module
Model: RE 6-0042
Part No.: 760042 / 395744EQQ

Technical Information

• Input Rated Voltage: 24 V AC/DC
• Frequency: 50 / 60 Hz
• Input Current: 10 A
• Contact: 2 Change-Over (CO)
• Switching Voltage: 17 / 250 V AC/DC
• Switching Current: 3 / 1 A
• Switching Capacity Max.: 1500 VA
• Material: PPE
• Protection Class: IP20
• Operation Temperature: -25 / 60 °C
• Dimensions: 79 x 17.5 x 84 mm
