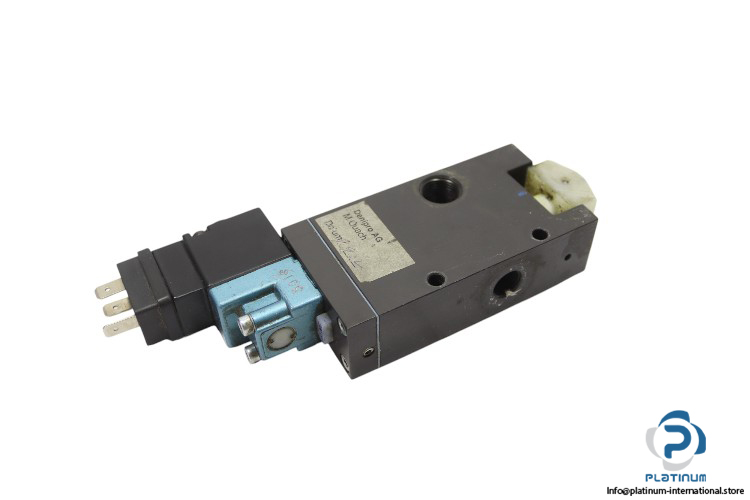

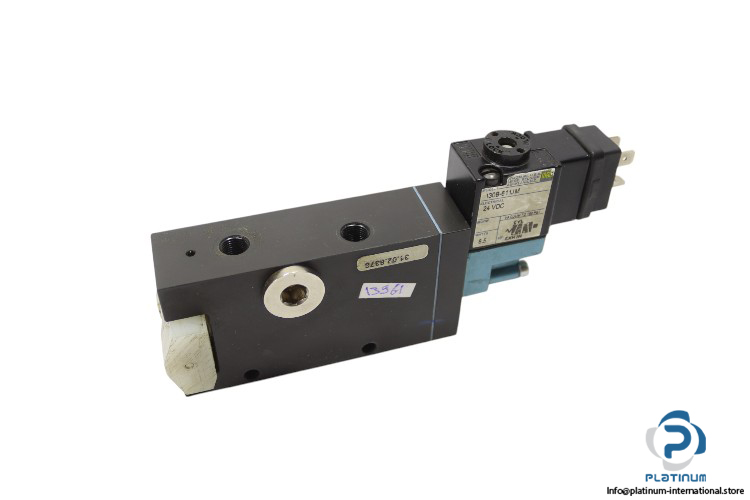

MAC 130B-611 JM Pneumatic Valve
The MAC 130B-611 JM Pneumatic Valve is a high-performance, electrically actuated solenoid valve designed for efficient control in pneumatic systems. Featuring a single direct solenoid poppet valve, it provides reliable 3/2-way operation with a flow coefficient of Cv 0.14 and a wide pressure range, making it ideal for various industrial applications.
Manufacturer: MAC
Type: Pneumatic Valve
Series: 100

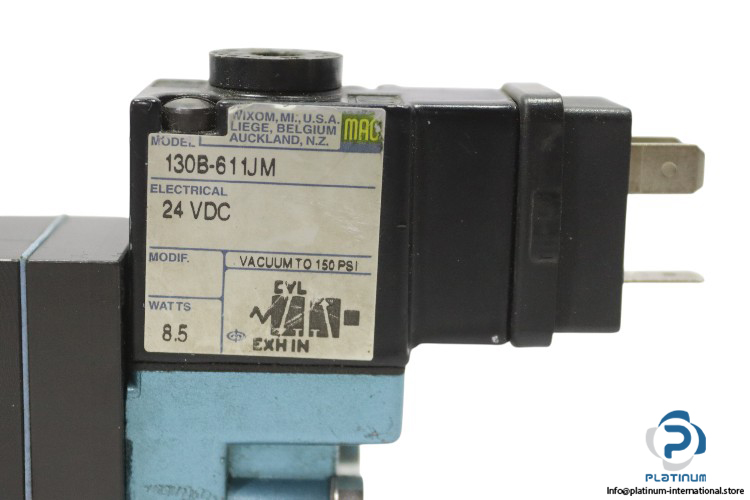

Model: 130B-611 JM
Technical Data:
- Main Function: Valve (Electrically actuated)
- Functions: Single direct solenoid poppet valve (Cv 0.14)
- Valve Function: 3/2-way Normally Open (NO) or Normally Closed (NC)
- Flow: Cv 0.14
- Pressure: Vacuum to +150 psi pressure range
- Connection Type: Rectangular male plug-in DIN 43650 connector
- Control Voltage (DC): 24Vdc
- Mounting Mode: Valve-less base
- Ambient Air Temperature for Operation: -18°C to +60°C
- Power Consumption: 8.5 W
- Connection: 8 mm

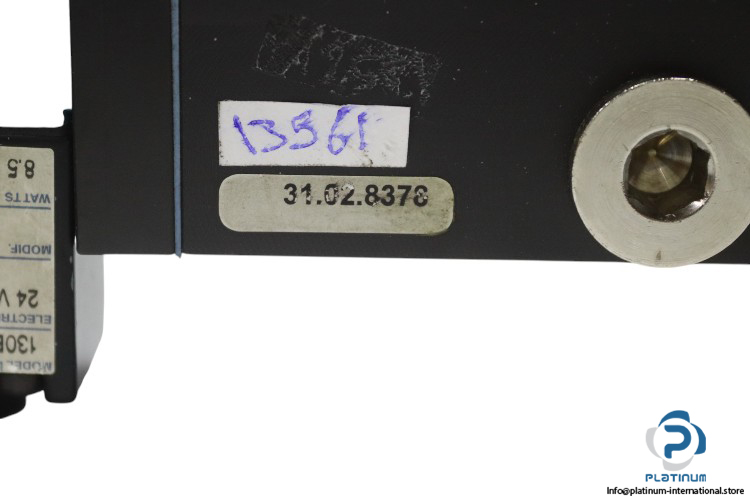

Attached with: 31.02.8378 BASE
Base Model: 31.02.8378
Base Type: BASE
