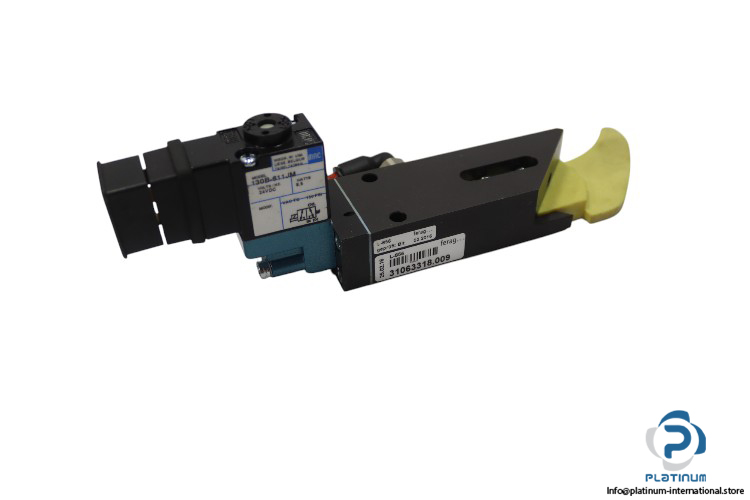

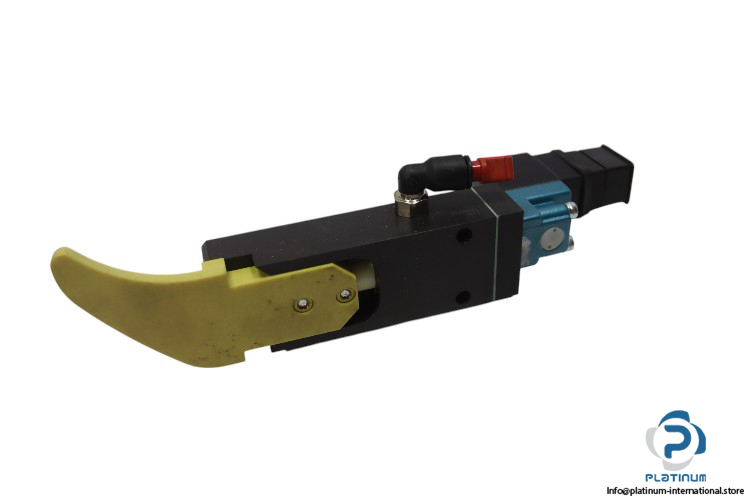

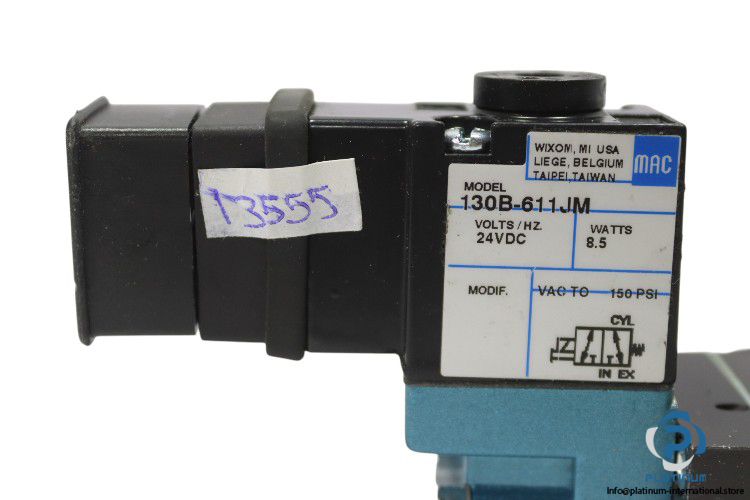

MAC 130B-611 JM Pneumatic Valve

The MAC 130B-611 JM Pneumatic Valve is designed for precise control in industrial automation systems. This electrically actuated valve provides reliable and efficient control in a wide range of applications, with a 3/2-way Normally Open (NO) or Normally Closed (NC) valve function. Featuring a Cv value of 0.14, it is ideal for controlling air flow under various pressure conditions.

Manufacturer: MAC

Type: Pneumatic Valve

Series: 100

Model: 130B-611 JM

Technical Data:

• Main Function: Valve (Electrically actuated)
• Functions: Single direct solenoid poppet valve (Cv 0.14)
• Valve Function: 3/2-way Normally Open (NO) or Normally Closed (NC)
• Flow: Cv 0.14
• Pressure: Vacuum +150psi pressure range
• Connection Type: Rectangular male plug-in DIN 43650 connector
• Control Voltage (DC): 24Vdc
• Mounting Mode: Valve less base
• Ambient Air Temperature for Operation: -18 to +60 °C
• Power Consumption: 8.5 W
• Connection: 8 mm

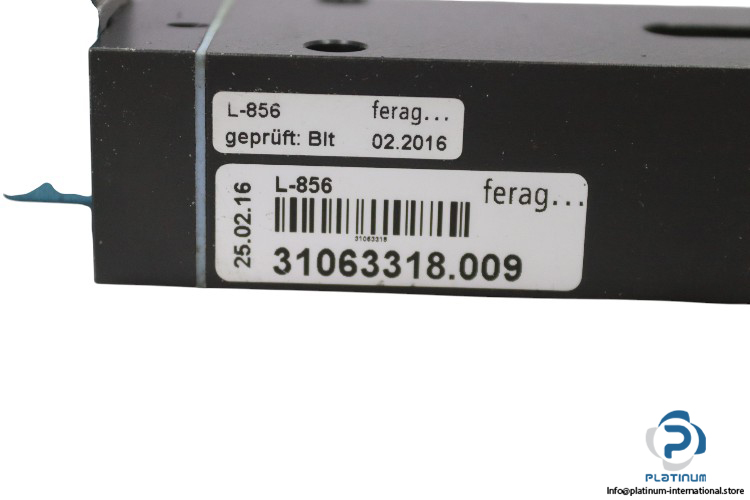

Attached with: 31063318.009 BASE

Type: BASE

Model: 31063318.009

Ref No: L-856
