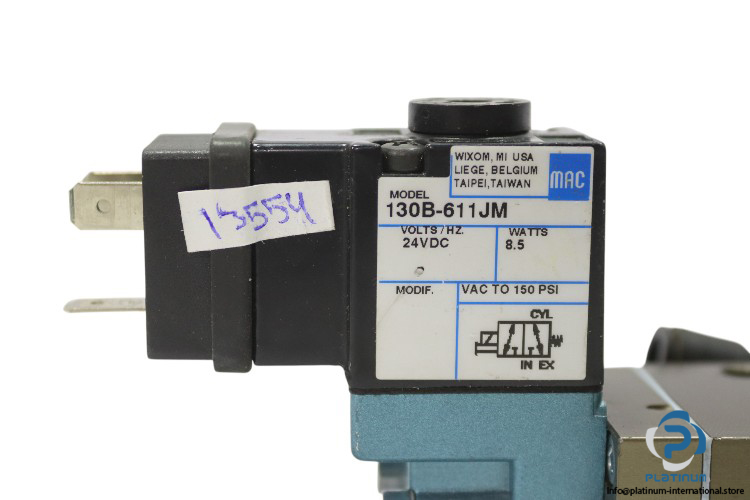

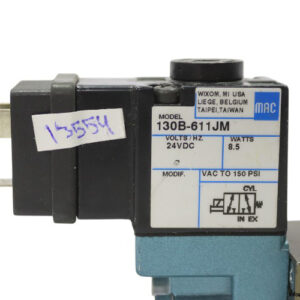

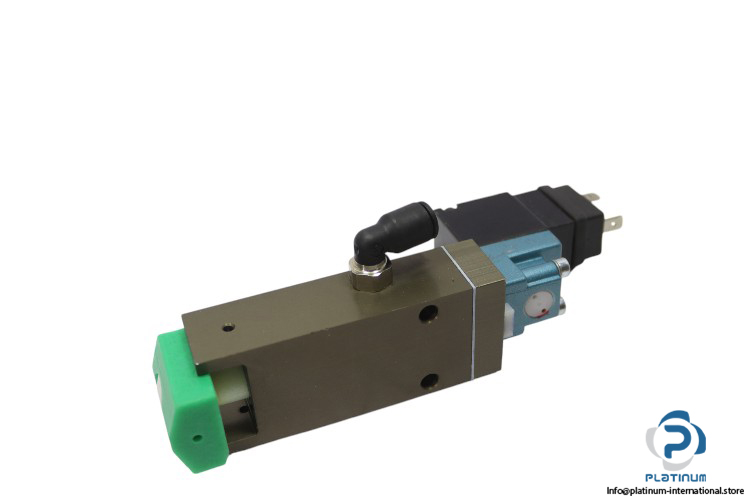

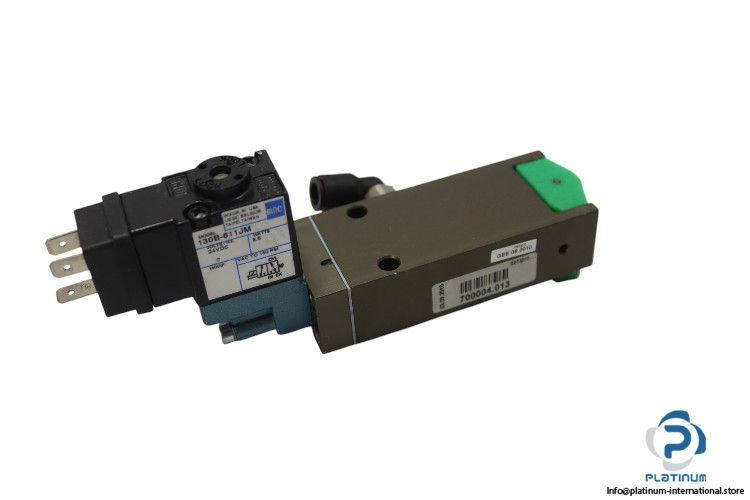

MAC 130B-611 JM Pneumatic Valve
The MAC 130B-611 JM Pneumatic Valve is designed for precise control in pneumatic systems. It features a 3/2-way normally open (NO) or normally closed (NC) function, with electrically actuated solenoid operation and a Cv of 0.14 for optimal flow control. With a wide pressure range and durable construction, this valve ensures reliable performance in various industrial applications.
Manufacturer: MAC
Type: Pneumatic Valve
Series: 100
Model: 130B-611 JM
Technical Data:
- Main Function: Valve (Electrically actuated)
- Functions: Single direct solenoid poppet valve (Cv 0.14)
- Valve Function: 3/2-way Normally Open (NO) or Normally Closed (NC)
- Flow: Cv 0.14
- Pressure: Vacuum +150psi pressure range
- Connection Type: Rectangular male plug-in DIN 43650 connector
- Control Voltage (DC): 24Vdc
- Mounting Mode: Valve less base
- Ambient Air Temperature for Operation: -18 to +60 °C
- Power Consumption: 8.5 W
- Connection: 8 mm

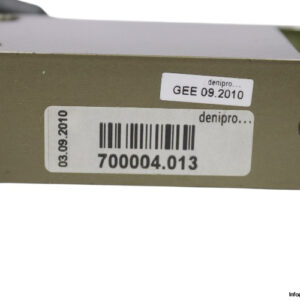

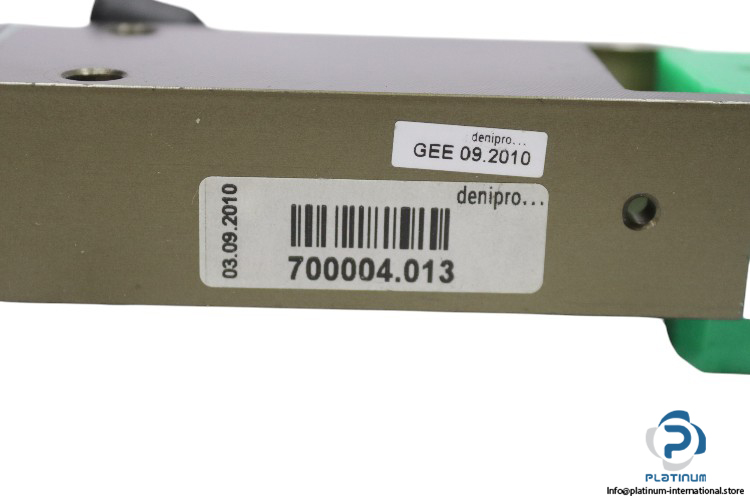

Attached with: 700004.013 BASE
Base Type: BASE
Base Model: 700004.013
