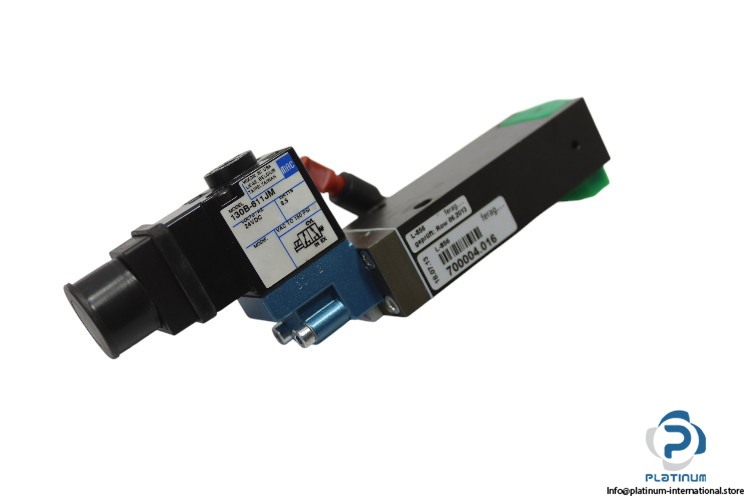

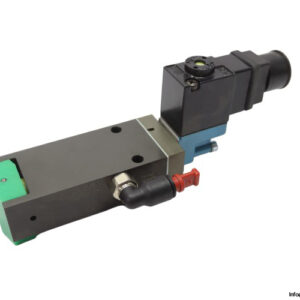

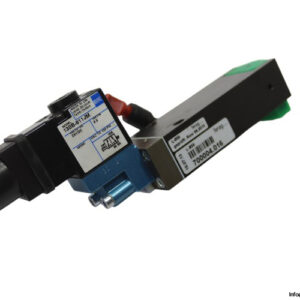

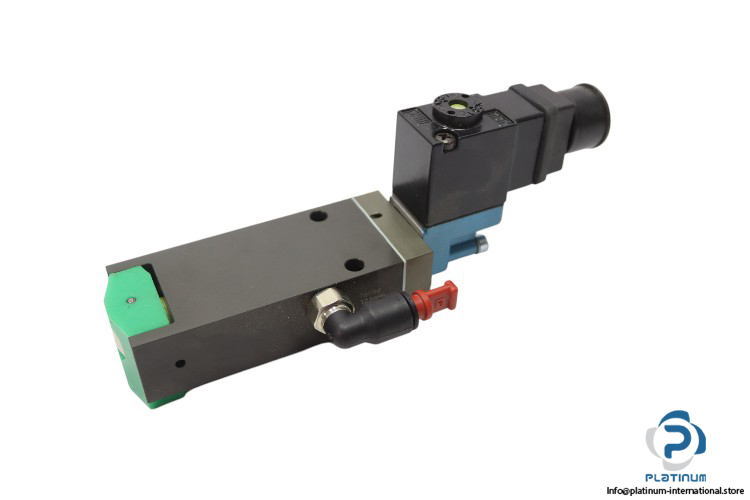

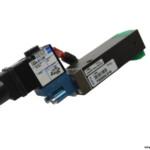

MAC 130B-611 JM Pneumatic Valve
The MAC 130B-611 JM Pneumatic Valve from the 100 series is an electrically actuated valve designed for efficient and reliable flow control. Featuring a single direct solenoid poppet design with Cv 0.14, it offers a versatile 3/2-way configuration (Normally Open or Normally Closed) with a pressure range up to +150psi and a vacuum rating. Ideal for industrial applications requiring precision and performance in harsh conditions.
Manufacturer: MAC
Type: Pneumatic Valve
Series: 100

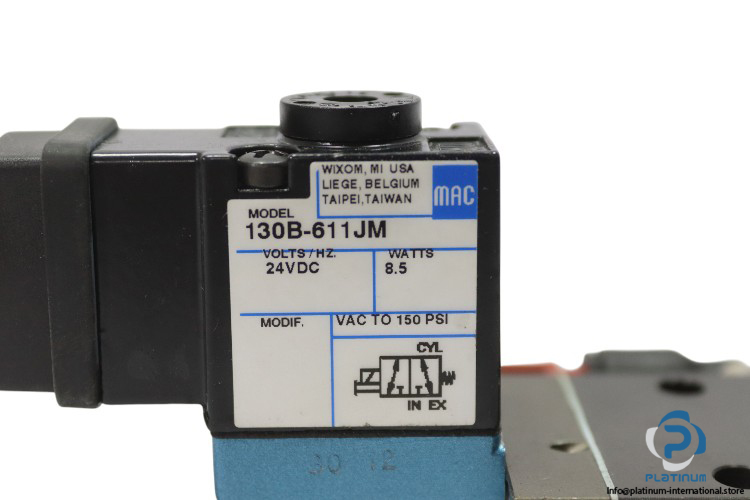

Model: 130B-611 JM
Technical Data:
- Main Function: Valve (Electrically actuated)
- Functions: Single direct solenoid poppet valve (Cv 0.14)
- Valve Function: 3/2-way Normally Open (NO) or Normally Closed (NC)
- Flow: Cv 0.14
- Pressure: Vacuum +150psi pressure range
- Connection Type: Rectangular male plug-in DIN 43650 connector
- Control Voltage (DC): 24Vdc
- Mounting Mode: Valve less base
- Ambient Air Temperature for Operation: -18…+60°C
- Power Consumption: 8.5 W

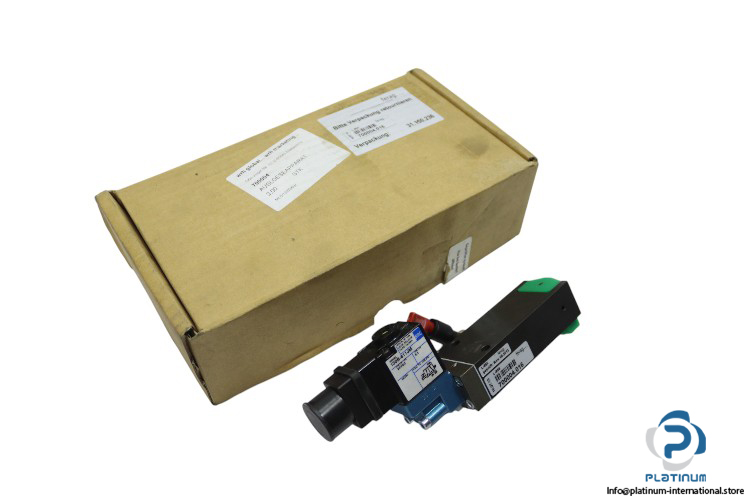

Attached Base:

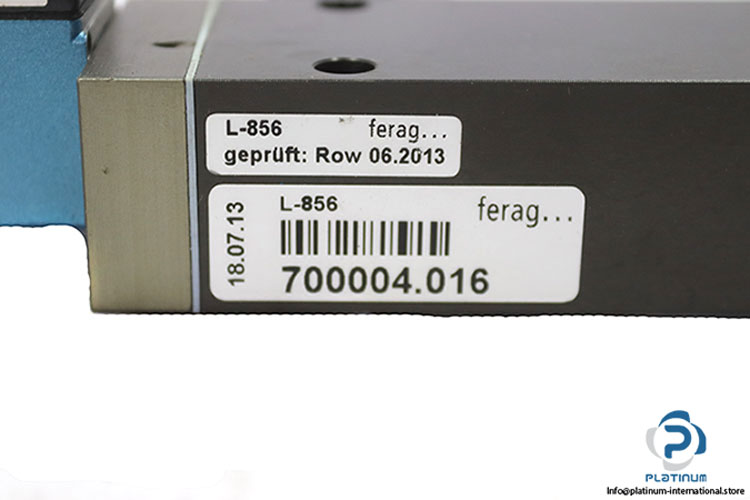

- Base Model: 700004.016
- Base Type: Base
- Base Ref No: 31.150.236 / L-856
