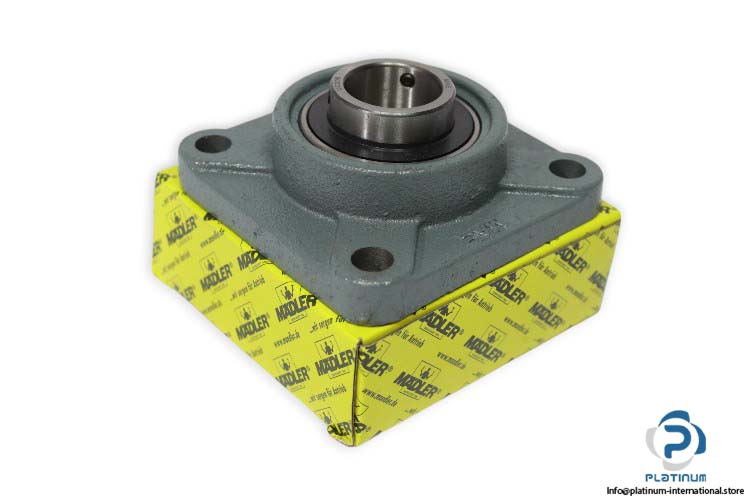

MADLER UCF 206 FOUR-BOLT SQUARE FLANGE UNIT

The Madler UCF 206 is a robust four-bolt square flange unit designed for reliable bearing support in industrial applications. Built with a UC 206 bearing and F206 housing, it provides excellent load capacity and durability.

Manufacturer: Madler
Type: Four-Bolt Square Flange Unit
Model: UCF 206

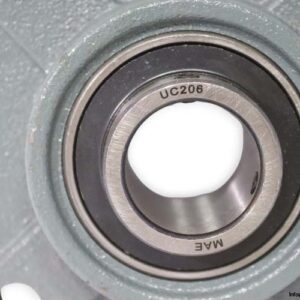

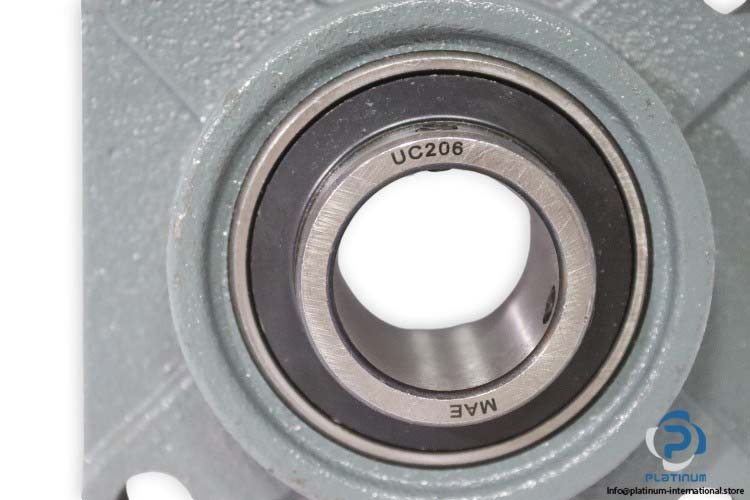

Bearing No.: UC 206

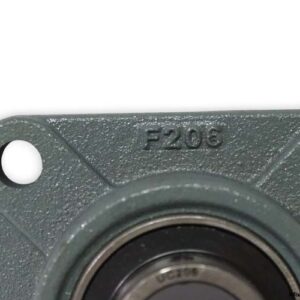

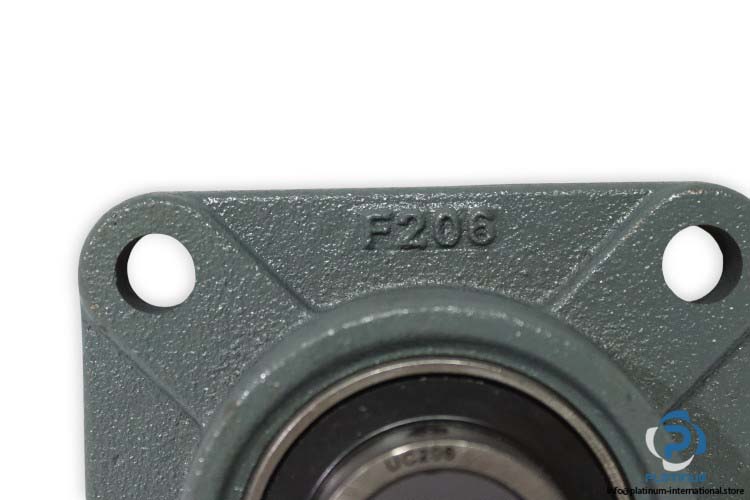

Housing No.: F206

Technical Information

• Bore Diameter: 30 mm
• Overall Length: 108 mm
• Housing Overall Width: 31 mm
• Distance Between Attachment Bolts: 83 mm
• Overall Unit Width: 40.2 mm
• Bearing-Load Rating:
  Dynamic: 15.1 kN
  Static: 10 kN
