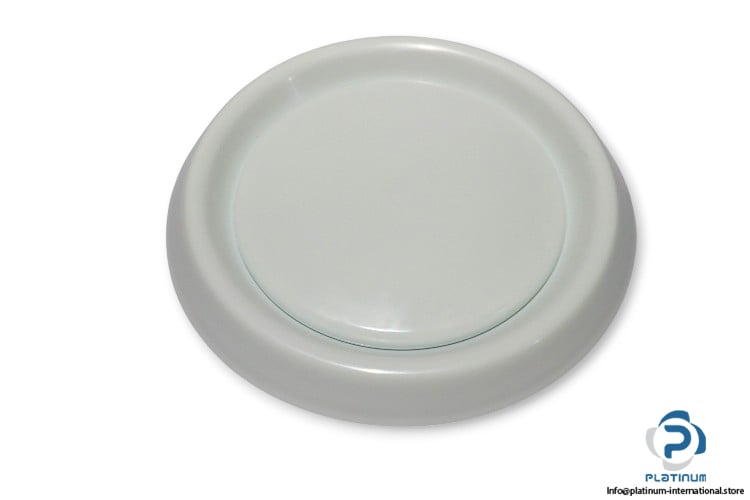

Maico TK15 Disk Valve for Supply and Exhaust Air

The Maico TK15 is a high-quality disk valve designed for efficient air distribution in both supply and exhaust ventilation systems. Its aerodynamic design ensures quiet operation and optimal air performance, making it ideal for residential, commercial, and industrial environments. The valve is made of durable, antistatic synthetic material and finished in pure white for a clean and modern appearance. Easy to install and maintain, it guarantees reliable airflow control and long service life.

Manufacturer: Maico
Type: Disk Valve for Supply and Exhaust Air
Model: TK15
Art. No.: 0151.0193
Code: 0184.0901.0000 / 0183.0975.0000

Technical Information

• Air Direction: Ventilation and Air Extraction
• Max. Volumetric Flow: 150 m³/h
• Blade / Housing Material: Plastic
• Suitable for Nominal Size: 150 mm
• Width: 190 mm
• Height: 190 mm
• Depth: 53 mm
• Material: Synthetic Material, Antistatic
• Range: C
• Color: Pure White, similar to RAL 9010

The TK15 combines modern design with reliable performance, ensuring balanced air distribution and minimal noise levels. Its lightweight and durable construction makes it suitable for new installations or replacements in any ventilation system. Perfect for homes, offices, and industrial facilities where efficiency and aesthetics are both important.
