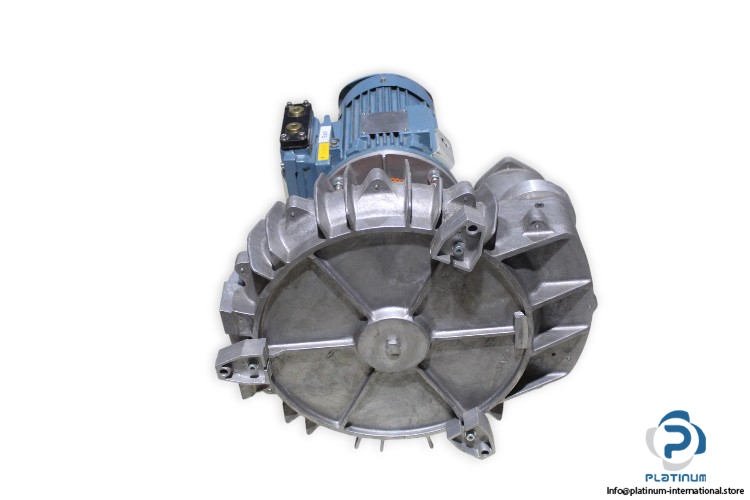

MAPRO CL 22/01 VL SIDE CHANNEL BLOWER

The Mapro CL 22/01 VL is a high-performance single-channel side blower, ideal for vacuum and pressure applications requiring reliable and explosion-protected operation. It is equipped with an ABB explosion-proof motor for enhanced safety and continuous duty in industrial environments.

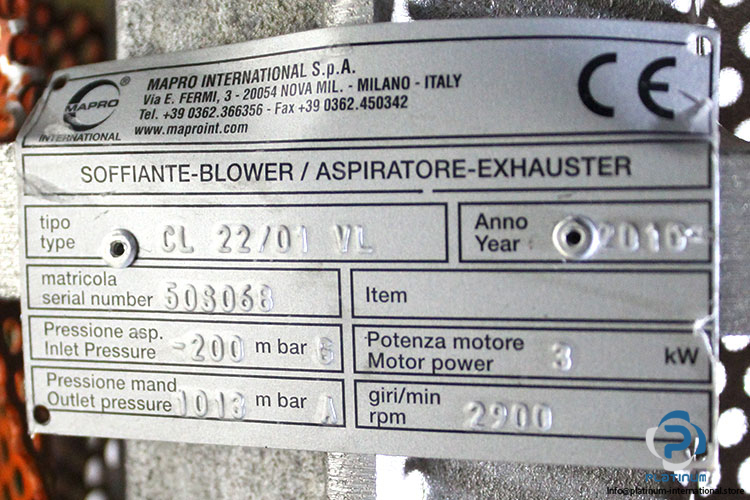

Manufacturer: Mapro
Type: Side Channel Blower
Model: CL 22/01 VL
Serial No.: 50S068

Technical Information

• Channel Design: Single

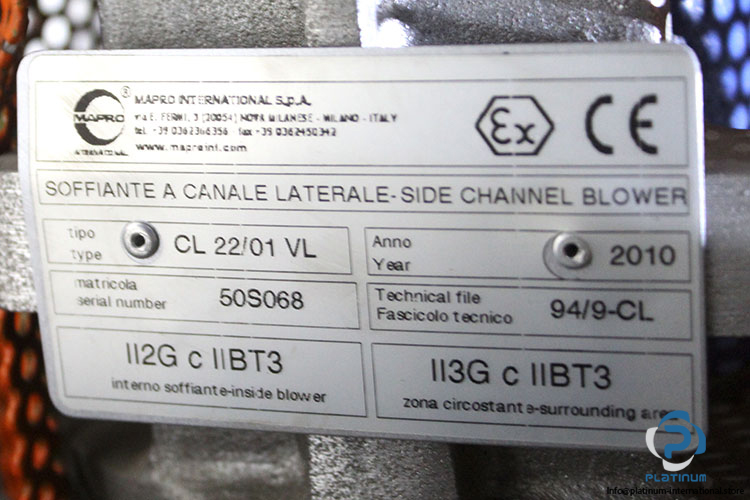

• Protection Explosion: II2G c IIBT3 / II3G c IIBT3
• Rated Pressure (in/out) [hPa]: -200 / 1013
• Rated Speed [rpm]: 2900
• Rated Power [kW]: 3

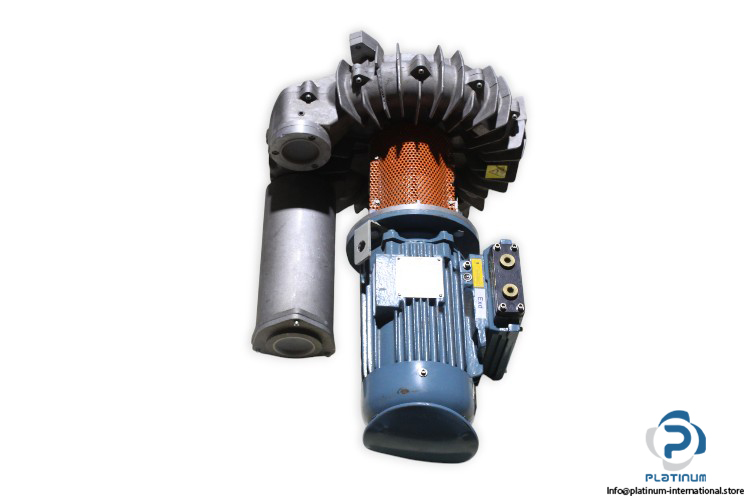

ATTACHMENT: ABB MOTOR M3KP 100L A 2IMV1/IM3011

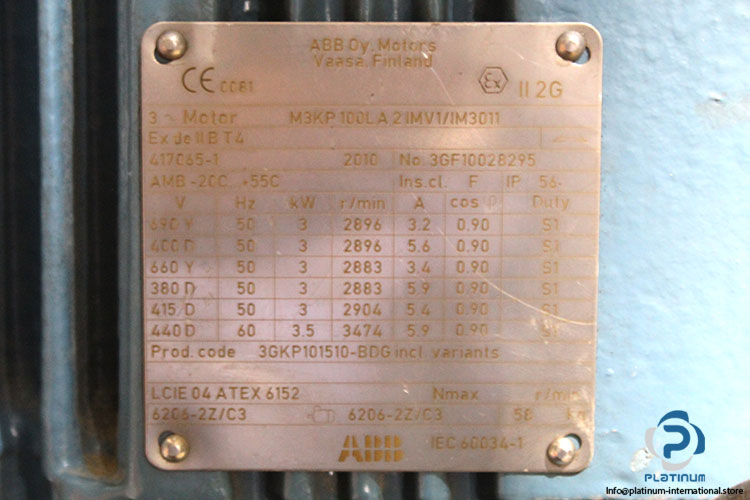

Manufacturer: ABB
Type: Motor
Model: M3KP 100L A 2IMV1/IM3011
Code: 3GKP101510-BDG / 417065-1
Part No.: 3GF10028295

Technical Information

• Design: Totally enclosed fan cooled squirrel cage motor with cast iron frame, dust ignition proof
• Rated Power [kW]: 3 / 3.5
• Supply Voltage [V]: 690 / 400 / 660 / 380 / 415 / 440
• Rated Current [A]: 3.2 / 5.6 / 3.4 / 5.9 / 5.4 / 5.9
• Rated Speed [rpm]: 2896 / 2883 / 2904 / 3474
• Frequency [Hz]: 50 / 60
• Protection Class [IP]: 55
• Power Factor [cos]: 0.90
• Duty: S1
• Insulation Class: F
• Temperature Range: -20 to 55 °C
• Protection Enclosure: Ex de IIB T4
• Bearing: 6206-2Z/03
