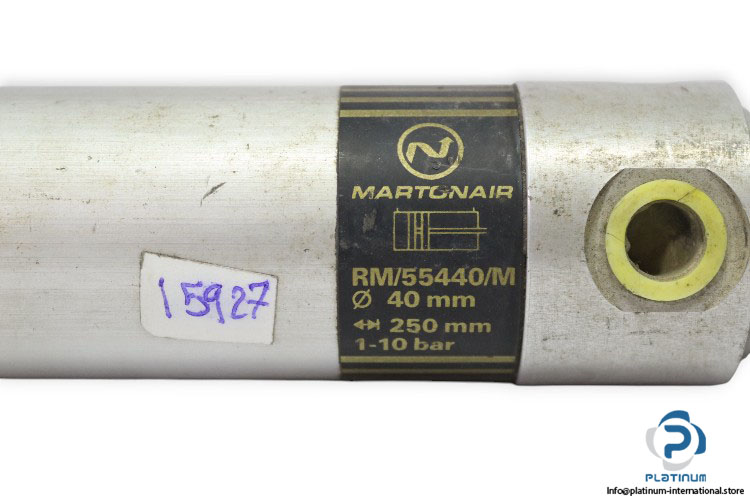

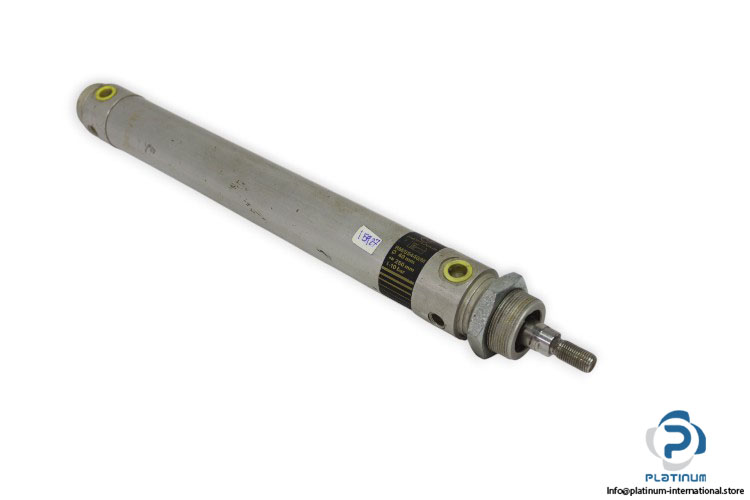

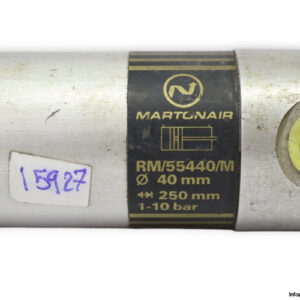

Martonair RM55440M Round Cylinder
The Martonair RM55440M from the RM Series is a robust double-acting round cylinder designed for reliable performance in pneumatic automation systems. With a 250 mm stroke length, 40 mm piston diameter, and high operating pressure tolerance, it provides precision and durability in industrial applications.
Manufacturer: Martonair
Type: Round Cylinder
Model: RM55440M
Series: RM
Technical Information
- Stroke Length: 250 mm
- Piston Diameter: 40 mm
- Piston Rod Thread: 12 mm
- Pneumatic Connection: G1/4
- Operating Medium: Compressed Air
- Max. Operating Pressure: 10 bar
- Shape: Circular
- Piston Action: Double-acting
- Operating Temperature: -20 to 80 °C
