MARTONAIR RM/8050 80 ISO CYLINDER

martonair-RM_8050-80-iso-cylinder-(Used)
martonair-RM_8050-80-iso-cylinder-(Used)-1
martonair-RM_8050-80-iso-cylinder-(Used)
martonair-RM_8050-80-iso-cylinder-(Used)-1
Used
Manufacturer: MARTONAIR

MARTONAIR RM/8050 80 ISO CYLINDER

ISO Cylinder

The Martonair RM/8050 80 ISO Cylinder is a high-pressure pneumatic actuator with a 50 mm bore, 80 mm stroke, G 1/4 connection, and a square profile for dependable industrial performance.

SKU: 1062694 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

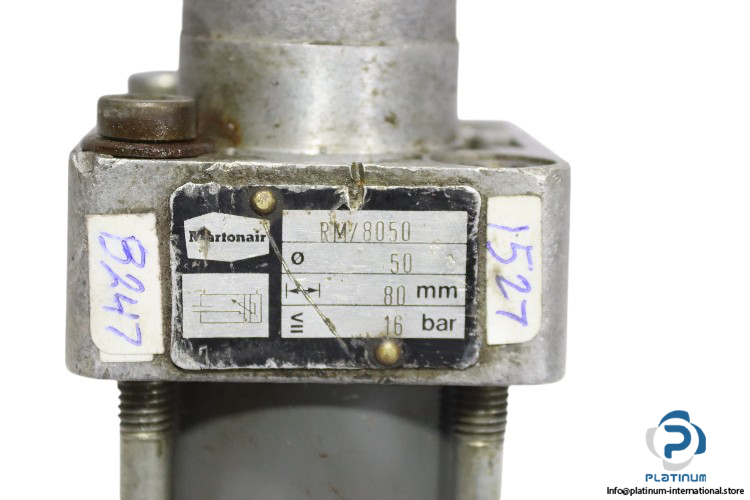

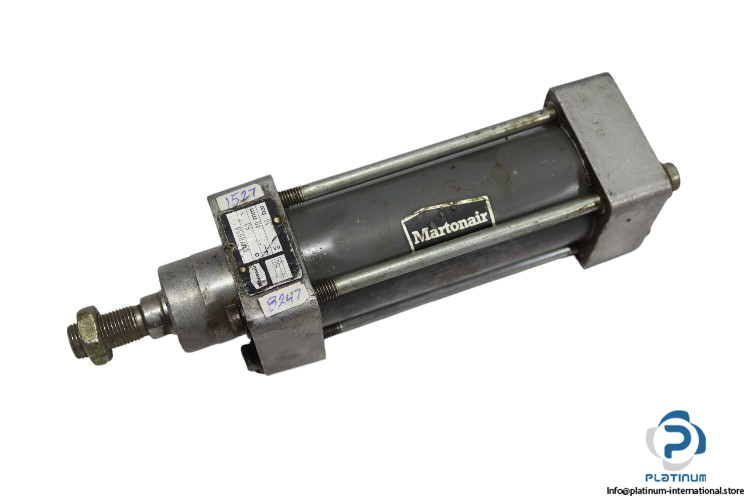

Martonair RM/8050 80 ISO Cylinder

The Martonair RM8050 80 ISO Cylinder is a robust pneumatic actuator designed for industrial applications. With a square shape and double operation mode, it delivers reliable performance under high-pressure conditions up to 16 bar.

Manufacturer: MARTONAIR

Type: ISO Cylinder

Model: RM/8050 80

Technical Information:

  • Media: Compressed Air
  • Bore Diameter: 50 mm
  • Stroke: 80 mm
  • Bore x Stroke: 50 x 80 mm
  • Rod Diameter: 20 mm
  • Frame Dimensions: 65 x 220 mm
  • Pneumatic Connection: G 1/4
  • Pressure Max.: 16 bar
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side
Weight1,81 kg
Condition

Type of Product

Manufacturer

Shelf No.

Model
