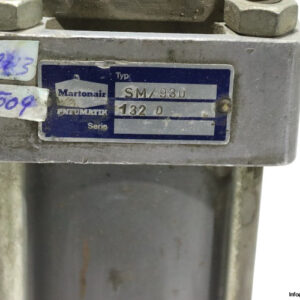

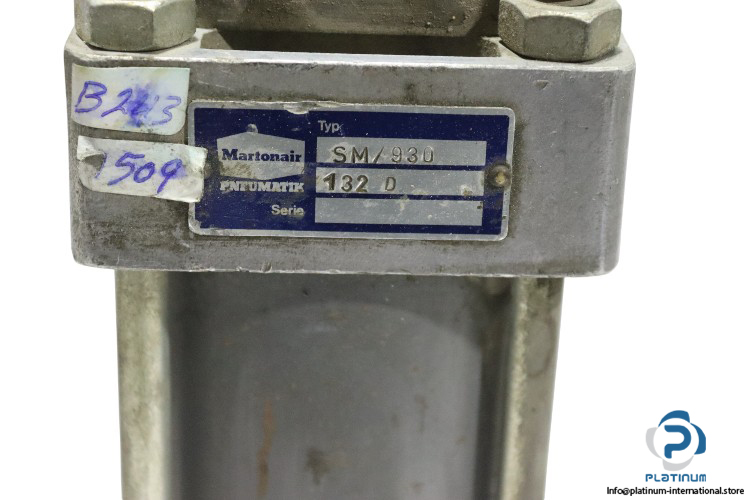

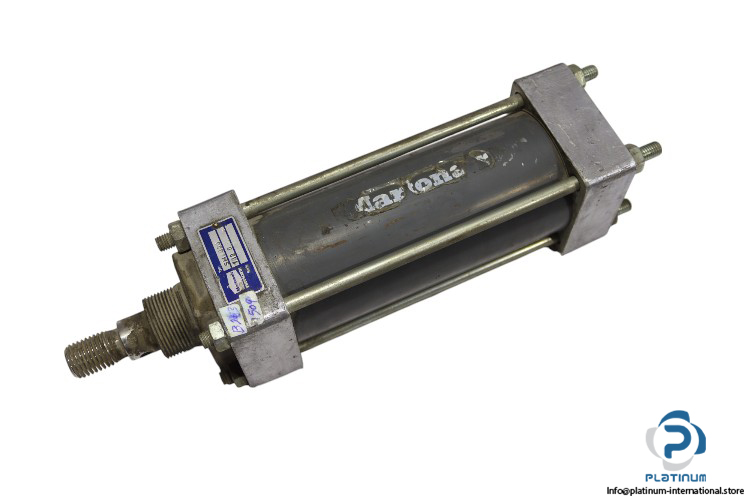

MARTONAIR SM/930 132 ISO CYLINDER

martonair-SM_930-132-iso-cylinder-(Used)
martonair-SM_930-132-iso-cylinder-(Used)-1
martonair-SM_930-132-iso-cylinder-(Used)
martonair-SM_930-132-iso-cylinder-(Used)-1
Used
Manufacturer: MARTONAIR

MARTONAIR SM/930 132 ISO CYLINDER

ISO Cylinder

The Martonair SM/930 132 ISO Cylinder is a double-acting pneumatic actuator with a 3 inch bore, 132 mm stroke, G 3/8 connection, and a square frame. Designed for industrial compressed air systems.

SKU: 1062635 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

Martonair SM/930 132 ISO Cylinder

The Martonair SM930 132 ISO Cylinder is a robust pneumatic actuator designed for efficient performance in industrial applications. Operating with compressed air, it delivers double-acting functionality and features a square shape with a one-sided rod direction.

Manufacturer: MARTONAIR

Type: ISO Cylinder

Model: SM/930 132

Technical Information:

  • Media: Compressed Air
  • Bore Diameter: 3 Inch
  • Stroke: 132 mm
  • Bore x Stroke: 3 Inch x 132 mm
  • Rod Diameter: 25 mm
  • Frame Dimensions: 90 x 300 mm
  • Pressure Max.: 10 bar
  • Pneumatic Connection: G 3/8
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side
Weight4,35 kg
