Used
Manufacturer: MARTONAIR

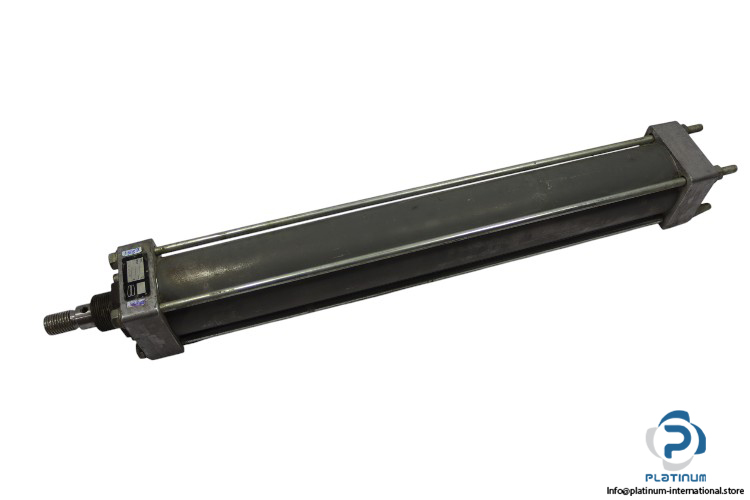

MARTONAIR SM/930 D 500 ISO CYLINDER

ISO Cylinder

The Martonair SM/930 D 500 ISO Cylinder is a powerful pneumatic actuator with a 3 inch bore, 500 mm stroke, and double-acting mode. Its square design and G 3/8 connection ensure reliable performance in industrial setups.

SKU: 1062699 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

Martonair SM/930 D 500 ISO Cylinder

The Martonair SM930 D 500 ISO Cylinder is a high-performance pneumatic actuator designed for precise and powerful motion control. Built with a square shape and robust structure, it operates with compressed air and supports double-acting functionality.

Manufacturer: MARTONAIR

Type: ISO Cylinder

Model: SM/930 D 500

Technical Information:

  • Media: Compressed Air
  • Bore Diameter: 3 Inch
  • Stroke: 500 mm
  • Bore x Stroke: 3 Inch x 500 mm
  • Rod Diameter: 25 mm
  • Frame Dimensions: 90 x 665 mm
  • Pressure Max.: 10 bar
  • Pneumatic Connection: G 3/8
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side
Weight8,38 kg
