MARTONAIR SM/930 D 650 ISO CYLINDER

martonair-SM_930-D-650-iso-cylinder-(Used)
martonair-SM_930-D-650-iso-cylinder-(Used)-1
martonair-SM_930-D-650-iso-cylinder-(Used)
martonair-SM_930-D-650-iso-cylinder-(Used)-1
Used
Manufacturer: MARTONAIR

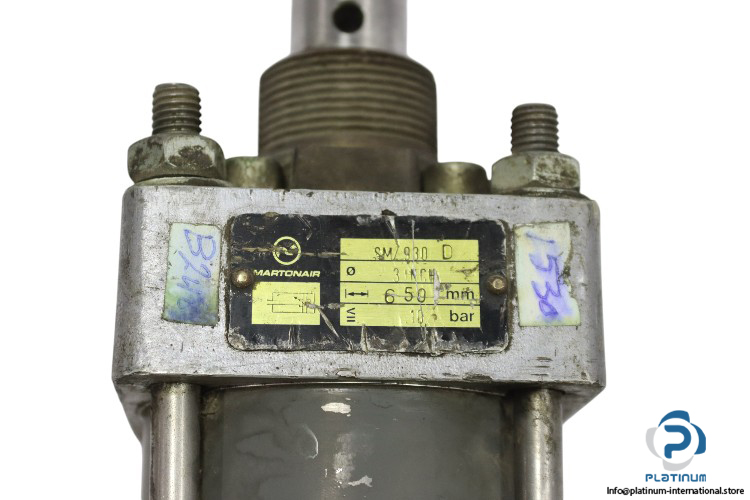

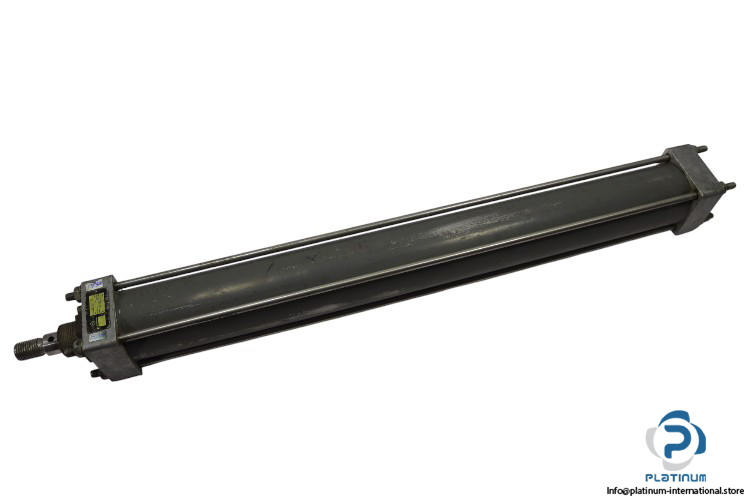

MARTONAIR SM/930 D 650 ISO CYLINDER

ISO Cylinder

The Martonair SM/930 D 650 ISO Cylinder features a 3 Inch bore, 650 mm stroke, and a square profile. Built for double-acting operation, it ensures reliable linear motion in industrial pneumatic systems.

SKU: 1062697 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

Martonair SM/930 D 650 ISO Cylinder

The Martonair SM930 D 650 ISO Cylinder is a robust pneumatic actuator built for demanding industrial applications. With a square profile, double operation mode, and a 650 mm stroke, it delivers reliable performance for precise linear motion.

Manufacturer: MARTONAIR

Type: ISO Cylinder

Model: SM/930 D 650

Technical Information:

  • Media: Compressed Air
  • Bore Diameter: 3 Inch
  • Stroke: 650 mm
  • Bore x Stroke: 3 Inch x 650 mm
  • Rod Diameter: 25 mm
  • Frame Dimensions: 90 x 815 mm
  • Pressure Max.: 10 bar
  • Pneumatic Connection: G 3/8
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side
Weight9,93 kg
Condition

Type of Product

Manufacturer

Shelf No.

Model
