Manufacturer: MARTONAIR NORGREN

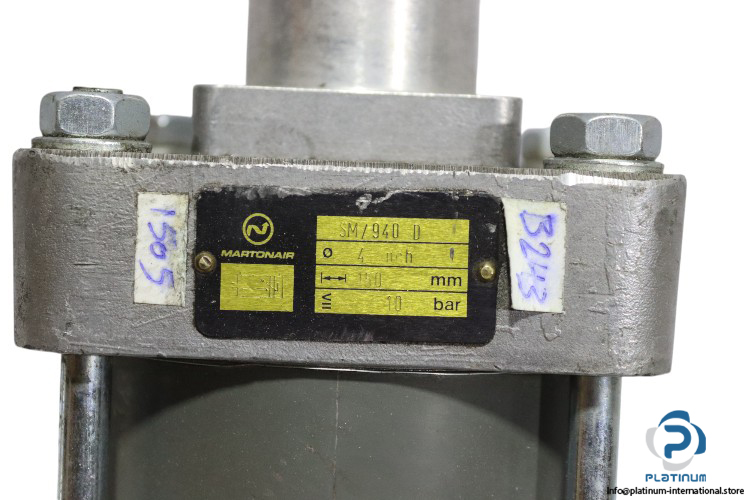

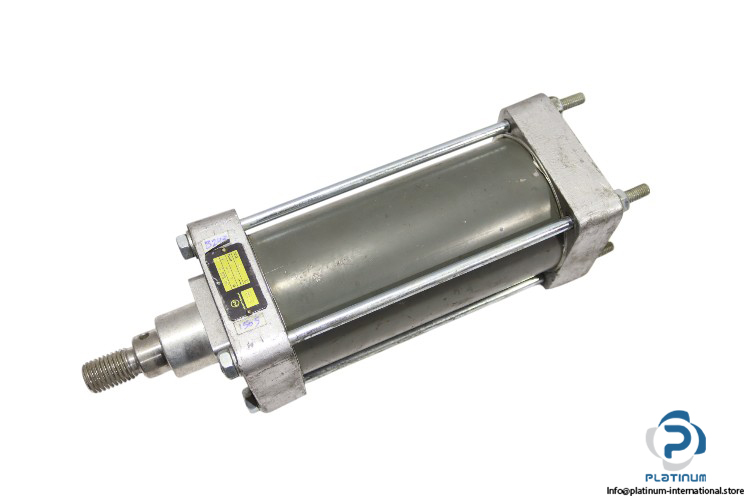

MARTONAIR SM/940 D 150 ISO CYLINDER

ISO Cylinder

The Martonair Norgren SM/940 D 150 ISO Cylinder features a 4 inch bore, 150 mm stroke, and G 3/8 pneumatic connection. Designed for double-acting operation in industrial pneumatic systems.

SKU: 1062631 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

Martonair Norgren SM/940 D 150 ISO Cylinder

The Martonair Norgren SM940D 150 ISO Cylinder is a high-quality pneumatic actuator built for durability and reliable performance. Designed for double-acting operation, it features a 4-inch bore and 150 mm stroke, making it ideal for industrial automation applications.

Manufacturer: MARTONAIR NORGREN

Type: ISO Cylinder

Model: SM/940 D 150

Technical Information:

  • Media: Compressed Air
  • Bore Diameter: 4 Inch
  • Stroke: 150 mm
  • Bore x Stroke: 4 Inch x 150 mm
  • Rod Diameter: 33 mm
  • Frame Dimensions: 115 x 320 mm
  • Pressure Max.: 10 bar
  • Pneumatic Connection: G 3/8
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side
Weight5,66 kg
