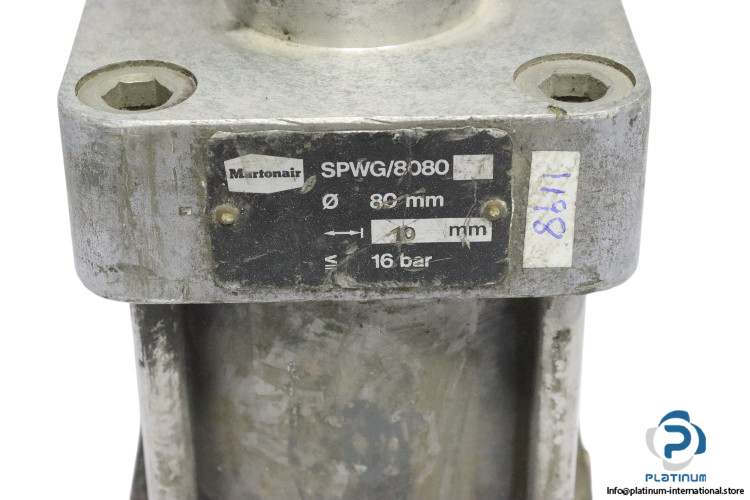

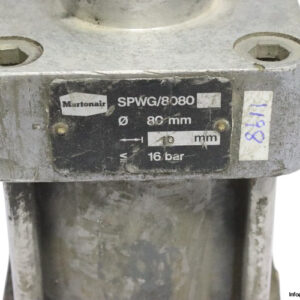

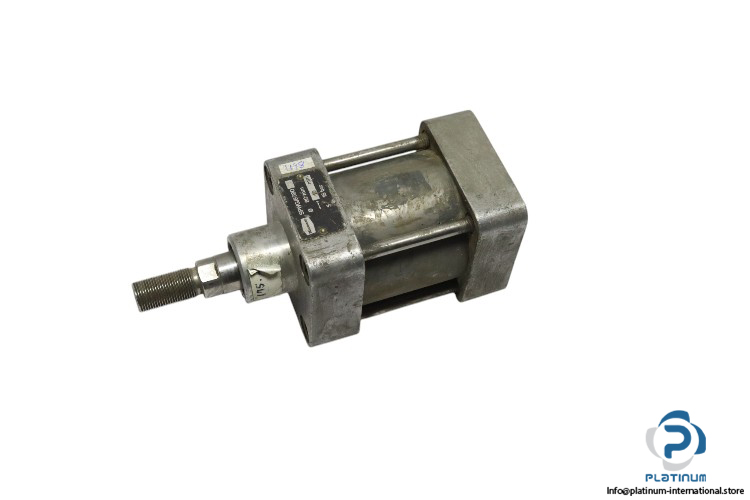

MARTONAIR ISO Cylinder SPWG/8080
The MARTONAIR ISO Cylinder SPWG8080 is designed for use in pneumatic systems, offering high-performance operation with a maximum pressure of 16 bar. This double-acting cylinder features a robust construction and precise dimensions for efficient performance in industrial environments.
Manufacturer: MARTONAIR
Type: ISO Cylinder
Model: SPWG/8080
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 10 mm
- Bore x Stroke: 80 x 10 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 96 x 180 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 16 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
