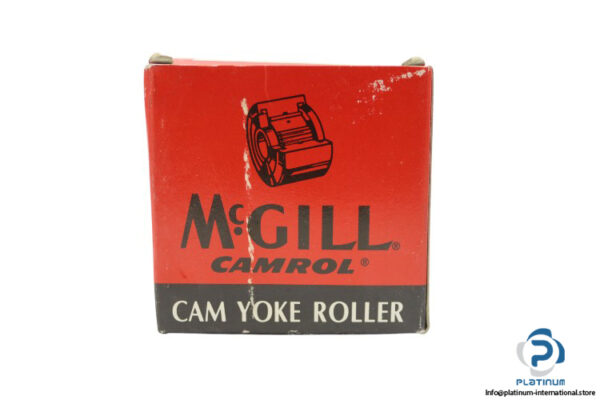

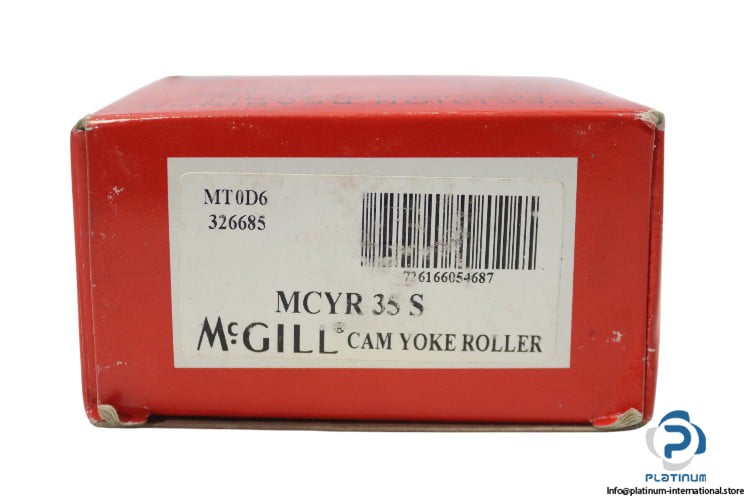

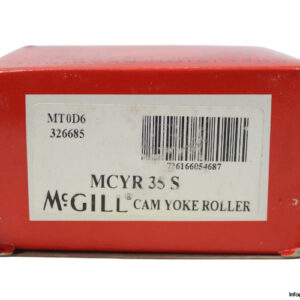

McGill Yoke Type Track Roller MCYR 35 S

The McGill Yoke Type Track Roller MCYR 35 S is designed to provide reliable support and smooth motion for a variety of industrial applications. With high dynamic and static load ratings, it ensures robust performance even under demanding conditions.

Manufacturer: McGill

Type: Yoke Type Track Roller

Model: MCYR 35 S

Technical Information:

• Bore Diameter (B): 35 mm
• Roller Diameter (RD): 72 mm
• Roller Width (W): 28 mm
• Width (W1): 29 mm
• Corner Radius: 2 mm
• Dynamic Load Rating: 47370 N
• Static Load Rating: 100000 N
• Limiting Speed (Grease): 1500 rpm
• Limiting Speed (Oil): 1900 rpm
• Sealing: Sealed, Full Complement
