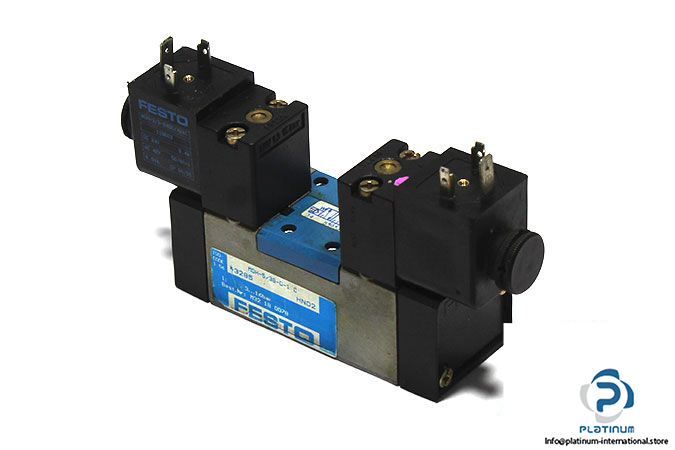

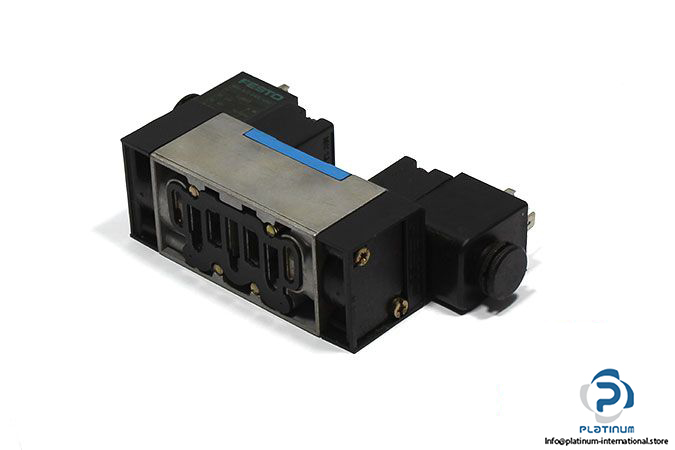

FESTO MDH-5/3G-D-1 C DOUBLE SOLENOID VALVE WITH COIL
The FESTO MDH-5/3G-D-1C is a precision-engineered double solenoid valve built for pneumatic air control in industrial automation. This 5/3 way valve features a piston gate design, high-quality aluminum die-cast body, and reliable sub-based connection. The unit includes a FESTO 119603 solenoid coil for consistent actuation across a wide voltage and frequency range.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MDH-5/3G-D-1-C
Part No.: 43286
Technical Information
- Fluid: Air
- Design: Piston Gate Valve

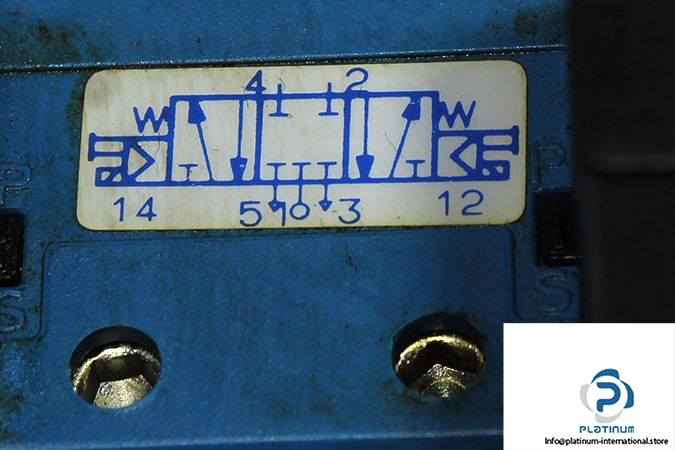

- Function: 5/3 Way
- Type of Actuation: Electrically
- Operating Pressure: 3 … 16 bar
- Pneumatic Connection: Sub-Based
- Material: Aluminium Die Cast
- Ambient Temperature: -5 / 50 °C

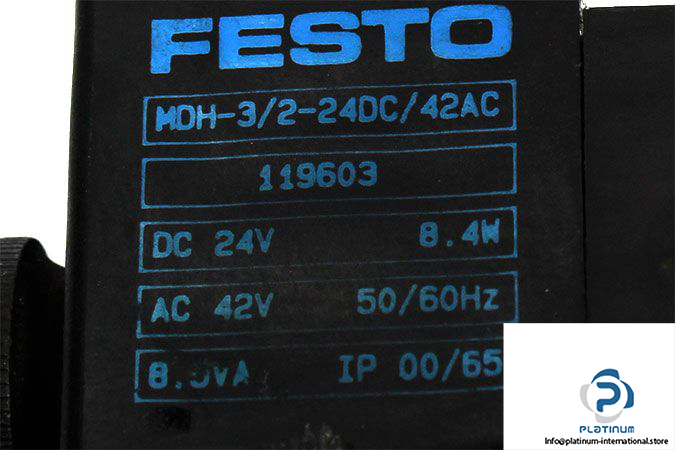

Attachment: FESTO 119603 SOLENOID COIL
Manufacturer: FESTO
Type: Solenoid Coil
Model: MDH-3/2-24DC/42AC
Part No.: 119603
Solenoid Coil Specifications
- Supply Voltage: 24 V DC / 42 V AC
- Frequency: 50 … 60 Hz
- Power Consumption: 8.4 W / 8 VA
- Protection Class: IP00 / IP65
