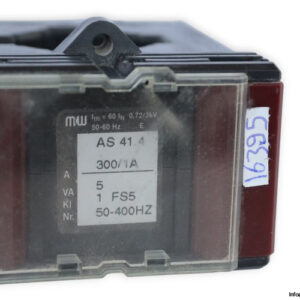

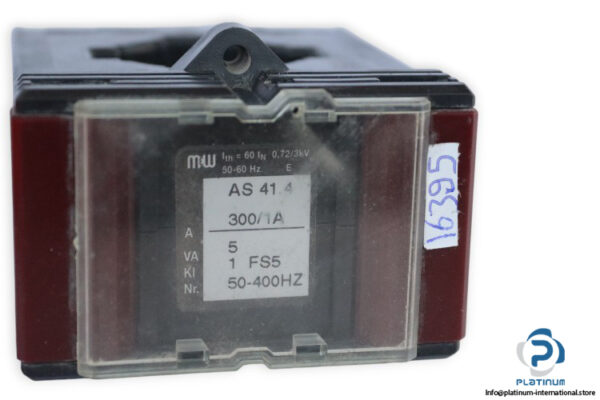

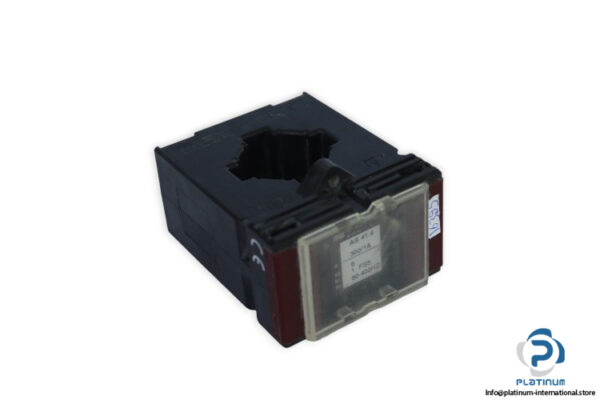

Mean Well AS 41.4 300/1A Current Transformer
The Mean Well AS 41.4 300/1A Current Transformer is designed for precision current measurement in electrical systems. With a ratio of 300/1 A and a thermal current rating of 60 In, this transformer ensures accurate and stable performance in industrial and power distribution applications.
- Manufacturer: Mean Well
- Type: Current Transformer
- Model: AS 41.4 300/1A
Technical Information
- Thermal Current (Ith): 60 In
- Maximum Operating Voltage: 0.72 kV
- Frequency: 50/60 Hz
- Ratio: 300/1 A
- Round Conductor: 32 mm
- Primary Bar Conductor: 40 × 10 mm / 30 × 10 mm
- Dimensions: 86 × 71 × 40 mm
Ideal for power monitoring, industrial automation, and electrical protection systems, the Mean Well AS 41.4 300/1A delivers high accuracy and durability in demanding environments.
