Mecaline RBX Linear Guideway Block RBH30FSS G1

The Mecaline RBX Linear Guideway Block RBH30FSS G1 is a high-precision, durable linear guide block designed for smooth and accurate linear motion. With a size of 30, it features a flange-type block suitable for demanding applications. Its robust construction and precise engineering make it ideal for industrial environments requiring high load capacities and reliability.

🔧 Technical Specifications:

• Manufacturer: Mecaline RBX
• Type: Linear Guideway Block
• Model: RBH30FSS G1
• Size: 30

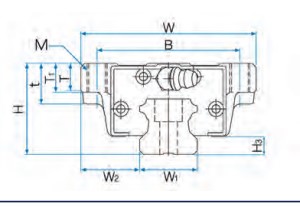

📏 Dimensions:

• Total Height (H): 42 mm
• Height of Block (H-H3): 34.5 mm
• Block Width (W): 90 mm
• Block Length (L): 97.8 mm
• B: 72 mm
• C: 52 mm

📦 Block Specifications:

• Block Type: F, Flange standard type
• Basic Load Ratings:
• Dynamic (C): 50.4 kN
• Static (C0): 57.1 kN
• Model No. of Linear Motion Guide: RBH30
• Type of Seal: SS, End seal + Inside seal
• Symbol of Clearance: G1, light preload

Engineered for optimal performance, the RBH30FSS G1 linear guideway block provides excellent precision and durability for various applications.
