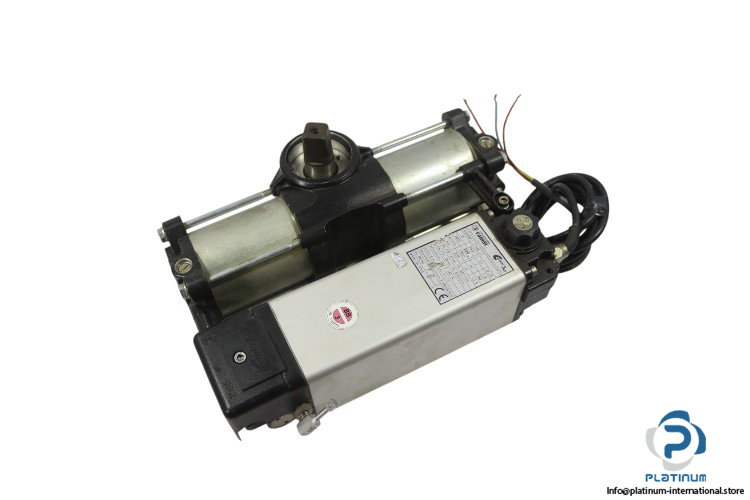

Meccanica Fadini COMBI 740 Oil-Hydraulic Motor Pump and Jack
The Meccanica Fadini COMBI 740 is a versatile oil-hydraulic motor pump and jack in a single enclosure, offering powerful performance and reliability for a variety of hydraulic applications. With a torque of 235 Nm and a flow rate of 0.85 l/min, it is perfect for tasks requiring high pressure and efficiency.

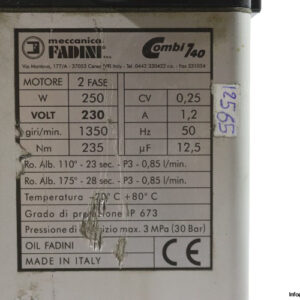

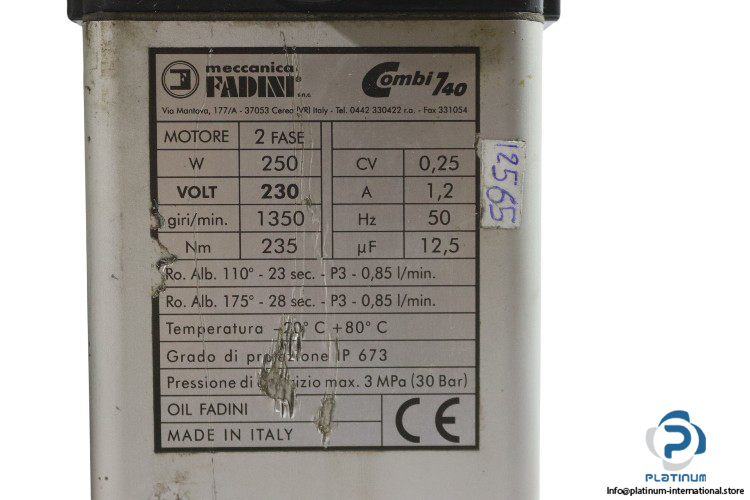

Manufacturer: Meccanica Fadini
Type: Oil-Hydraulic Motor Pump and Jack in a Single Enclosure
Model: COMBI 740
Technical Information:
- Torque: 235 Nm
- Speed: 1350 rpm
- Voltage: 230 V
- Power: 250 W
- Current: 1.2 A
- Capacity: 12.5 micro-farad
- Frequency: 50 Hz
- Flow Coefficient: 0.25 CV
- IP Rate: 673
- Cylinder Bore: 75 mm
- Oil Type: A 15 FADINI by AGIP
- Stroke: 52 mm
- Max. Pressure: 30 bar
- Motor: 2 Phases
- Shaft Rotation: 110°, 175° (23 “ 28 sec)
- Flow Rate: 0.85 l/min
- Temperature: -20 to 80°C
