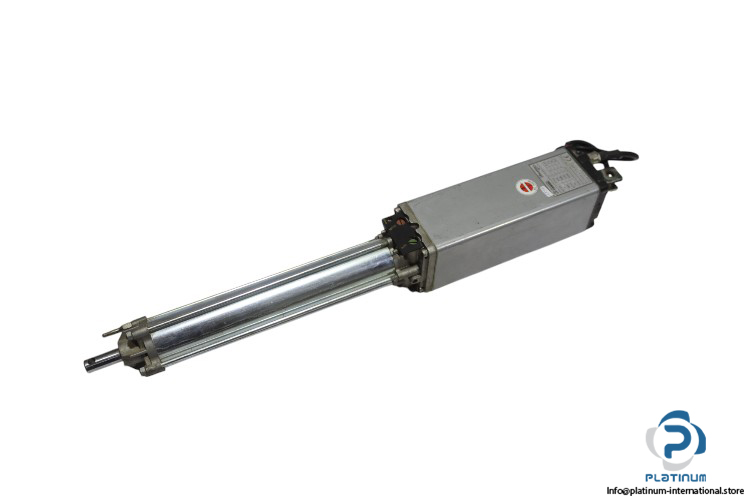

Meccanica Fadini Linear Actuator “ HINDI 880

The Meccanica Fadini HINDI 880 Linear Actuator is engineered for heavy-duty applications, delivering 3000 Nm of torque with efficient power usage. With a stroke of 230 mm and a robust motor design, it offers reliable performance in demanding industrial environments.

Manufacturer: Meccanica Fadini

Type: Linear Actuator

Model: HINDI 880

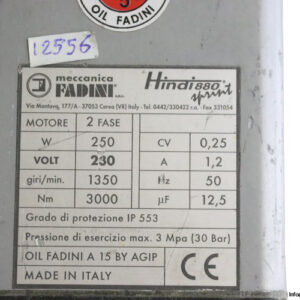

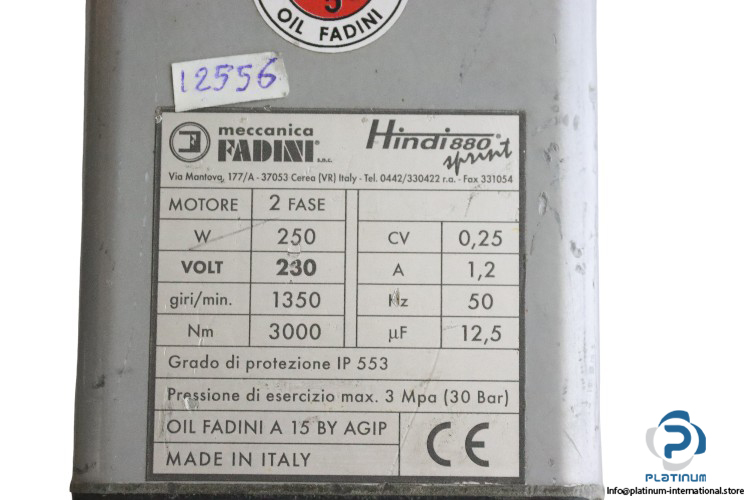

Technical Information:

• Torque: 3000 Nm
• Speed: 1350 rpm
• Voltage: 230 V
• Power: 250 W
• Current: 1.2 A
• Rod Stroke: 230 mm
• Capacity: 12.5 micro-farad
• Frequency: 50 Hz
• Flow Coefficient: 0.25 CV
• IP Rate: 553
• Oil Type: A 15 FADINI by AGIP
• Max. Pressure: 30 bar
• Motor: 2 phases
