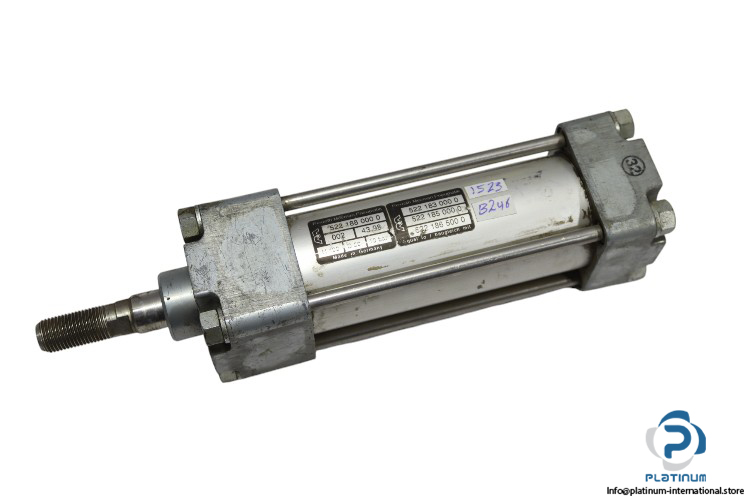

Mecman 522 188 000 0 ISO Cylinder

The Mecman 5221880000 ISO Cylinder is a robust and reliable pneumatic actuator designed for industrial applications. Featuring a square frame, male rod end, and double-acting operation, it ensures optimal performance with compressed air systems up to 10 bar.

Manufacturer: MECMAN

Type: ISO Cylinder

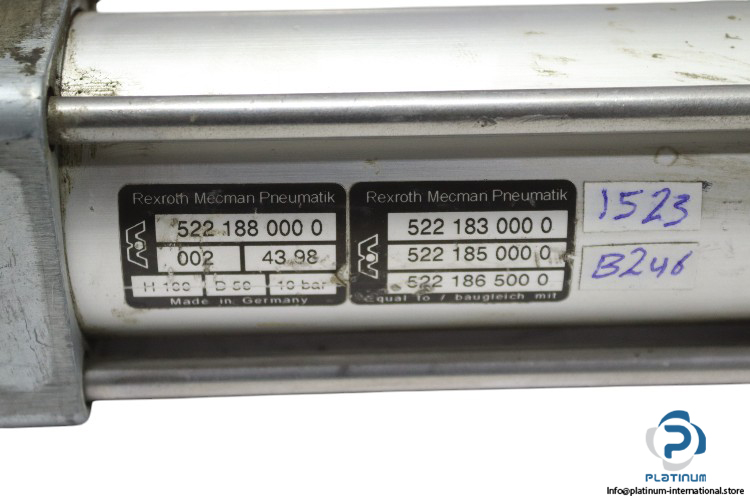

Model: 522 188 000 0

Alternative Model: 522 183 000 0 / 522 185 000 0 / 522 186 500 0

Technical Information:

• Media: Compressed Air
• Bore Diameter: 50 mm
• Stroke: 100 mm
• Bore x Stroke: 50 x 100 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 65 x 230 mm
• Pneumatic Connection: G 1/4
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
