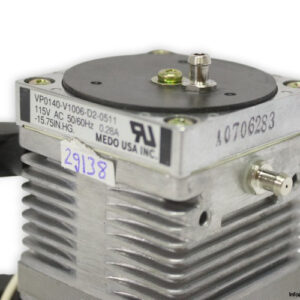

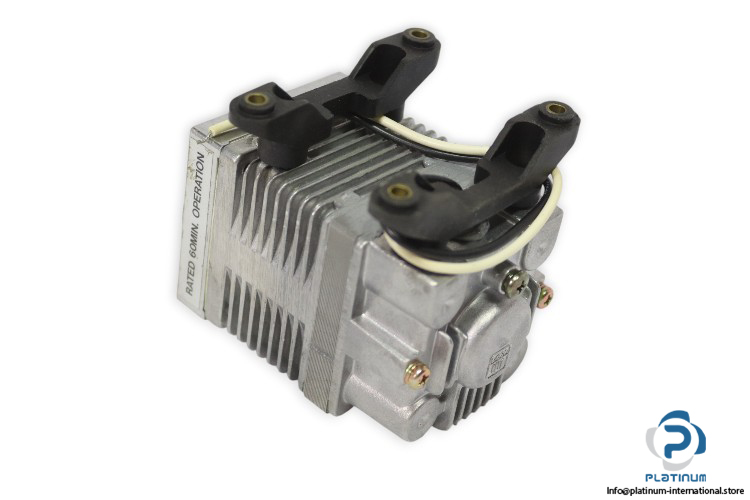

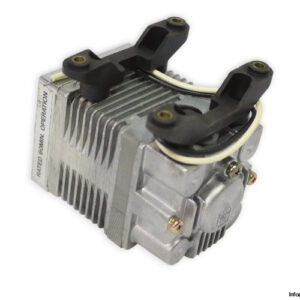

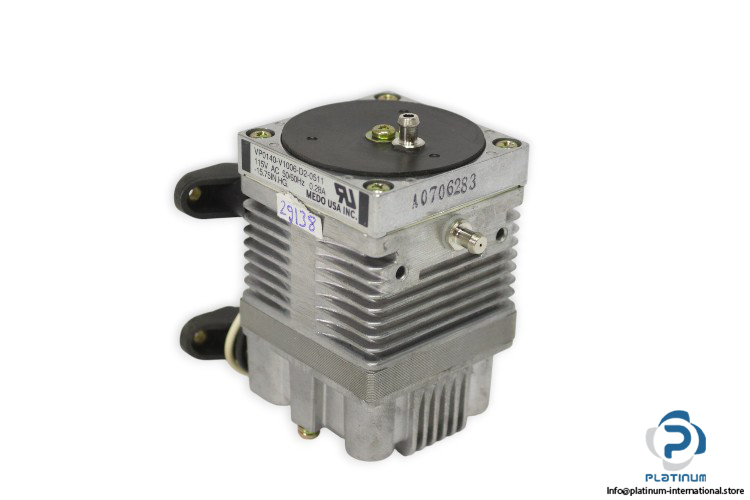

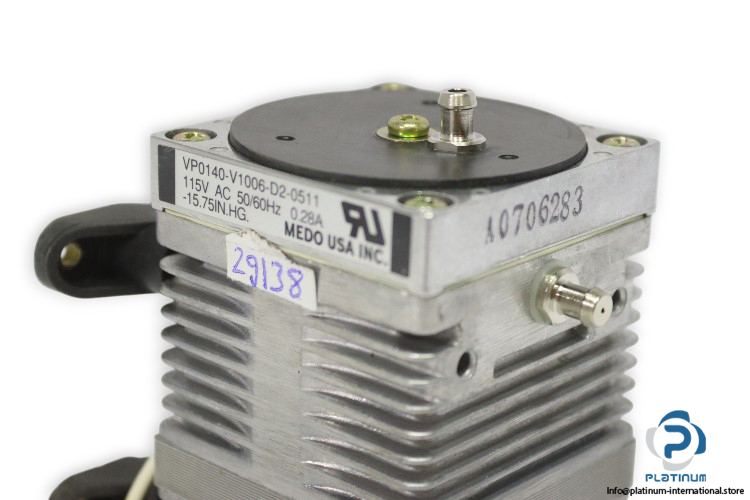

MEDO VP0140-V1006-D2-0511 Linear Vacuum Pump

The MEDO VP0140-V1006-D2-0511 is a compact and efficient linear vacuum pump designed for reliable vacuum performance in demanding industrial and laboratory applications. With durable construction and precise engineering, it ensures consistent operation and long service life.

Manufacturer: MEDO
Type: Linear Vacuum Pump
Model: VP0140-V1006-D2-0511
MRN: A0706283

Technical Information

• Vacuum: -15,375 IN.HG
• Attainable Vacuum: -533 mbar
• Free Air Displacement: 3 l/min
• Rated Voltage: 115 V AC
• Current: 0.28 A
• Duty Cycle: 60 minutes
• Inlet: 6 mm O.D. hose nipple
• Outlet: 6 mm O.D. hose nipple
• Rated Frequency: 60 Hz or 50 Hz
• Coil Insulation: Class E or equivalent (JETL) / Class B for UL
• Mounting Dimensions (L x W): 48 x 62 mm
