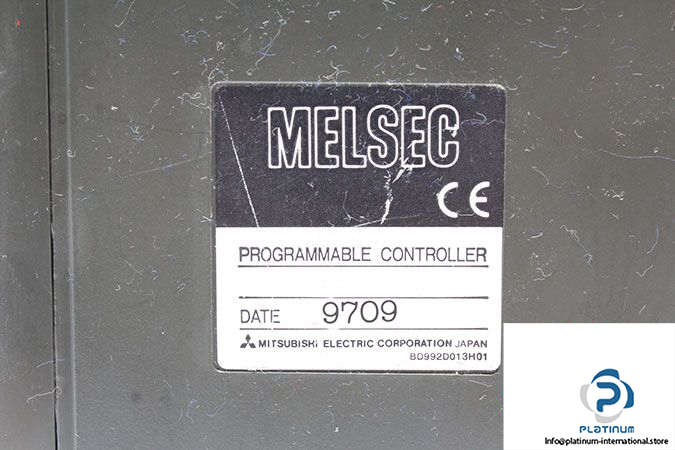

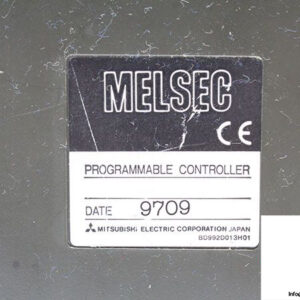

Manufacturer: MELSEC

Type: Programmable Controller

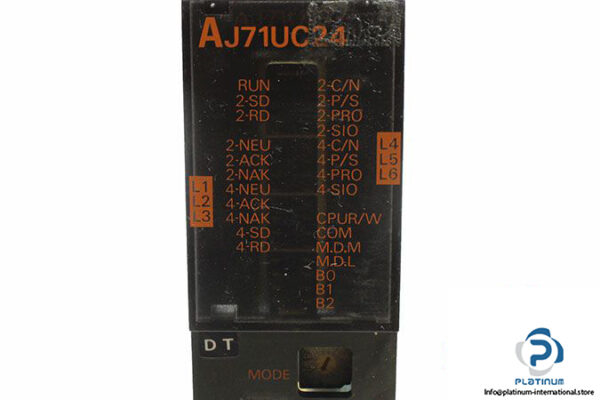

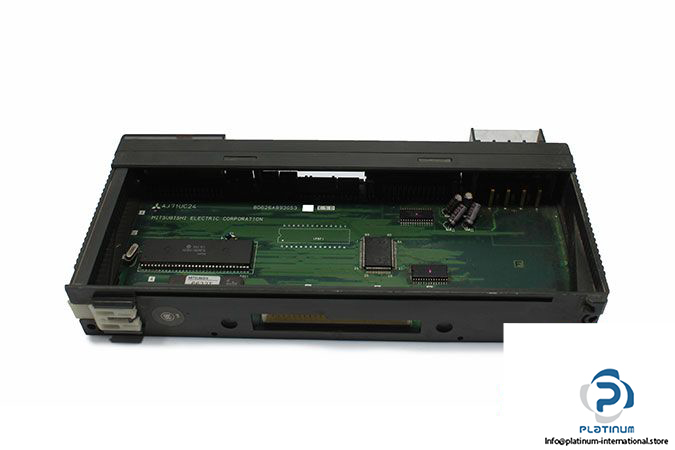

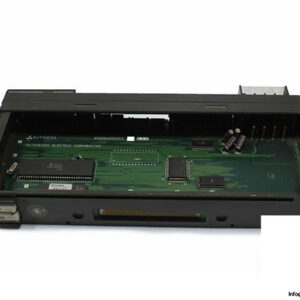

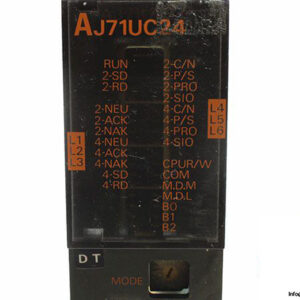

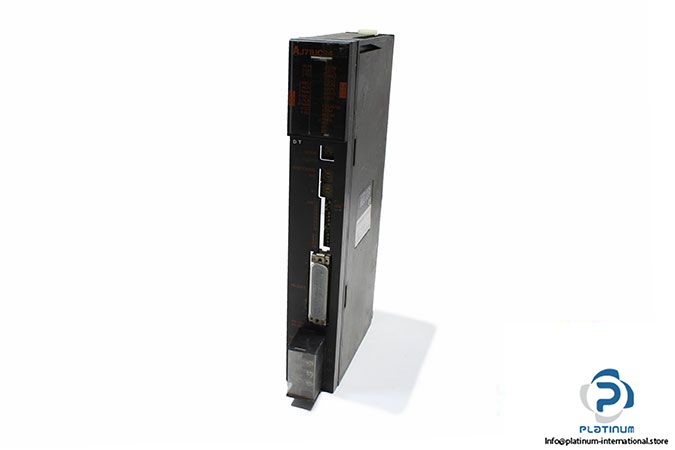

Model: AJ71UC24

Interface RS-232 / RS-422/485: RS-232 compliant (D-Sub 25P) 1ch / RS-422/485 compliant 1ch

No. of Occupied I/O Points: 32 points/slot(I/O assignment: special 32 points)

Transmission Distance RS-232 / RS-422/485: Max.15 m / Max.500m (overall distance)

Synchronization Method: Start stop synchronization (asynchronous method)

Parity Check: Performed (odd/even)/none

Sum Check: Performed (MC protocol/Bidirectional)/none

Transmission Speed: 300 to 19200 bps

Bidirectional Communication: 1:1

Dimensions: 37 X 250 X 131 mm

Weight: 0.37 Kg
